Sony HCD-GPX7 - Exploded Views; Side Plates Section

50
HCD-GPX6/GPX7
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Abbreviation
AR : Argentina model
AUS: Australian model
HK : Hong Kong model
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color

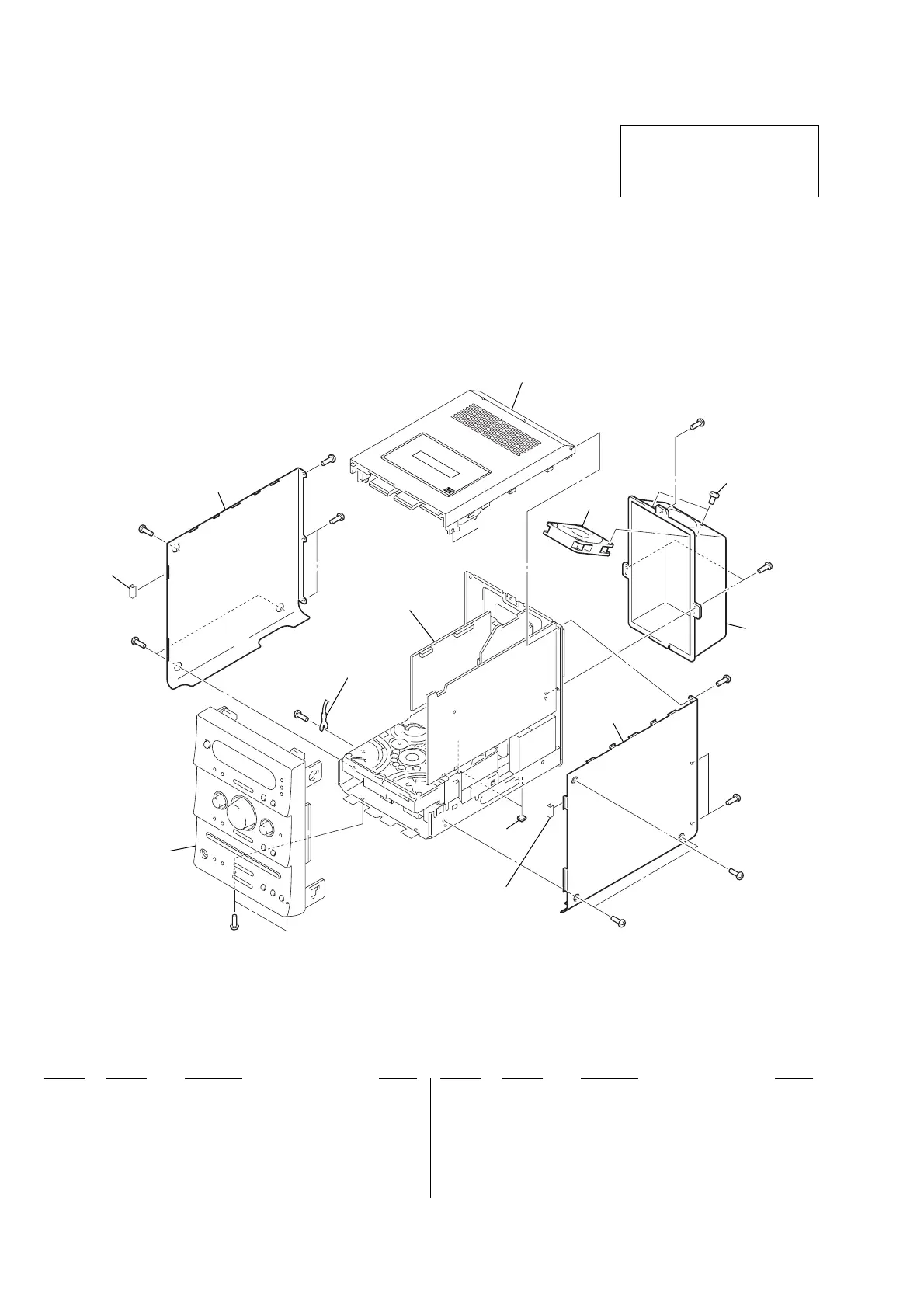

7-1. SIDE PLATES SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-251-905-01 PLATE (L), SIDE
2 4-671-016-01 SCREW (FAN) (US, AEP, AR)
3 4-251-906-01 PLATE (R), SIDE
4 4-247-752-01 RUBBER, FOOT
5 4-251-908-01 COVER, HEAT SINK (GPX7)
5 4-251-908-11 COVER, HEAT SINK (GPX6: HK, SP, KR, AUS)
5 4-251-908-31 COVER, HEAT SINK (GPX6: US)
M301 1-787-103-11 FAN, DC (US, AEP, AR)
#1 7-685-871-01 SCREW +BVTT 3X6 (S)
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-872-09 SCREW +BVTT 3X8 (S)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
1
2
5
3
4
not
supplied
M301
not
supplied
not supplied
front panel
section
top block section
main section
#1
#1
#1
#1
#2
#2
#2
#2
#3
#3
#
3
#3
KR : Korean model
SP : Singapore model
