Sony HCD-GPX7 - Chassis Section

54
HCD-GPX6/GPX7

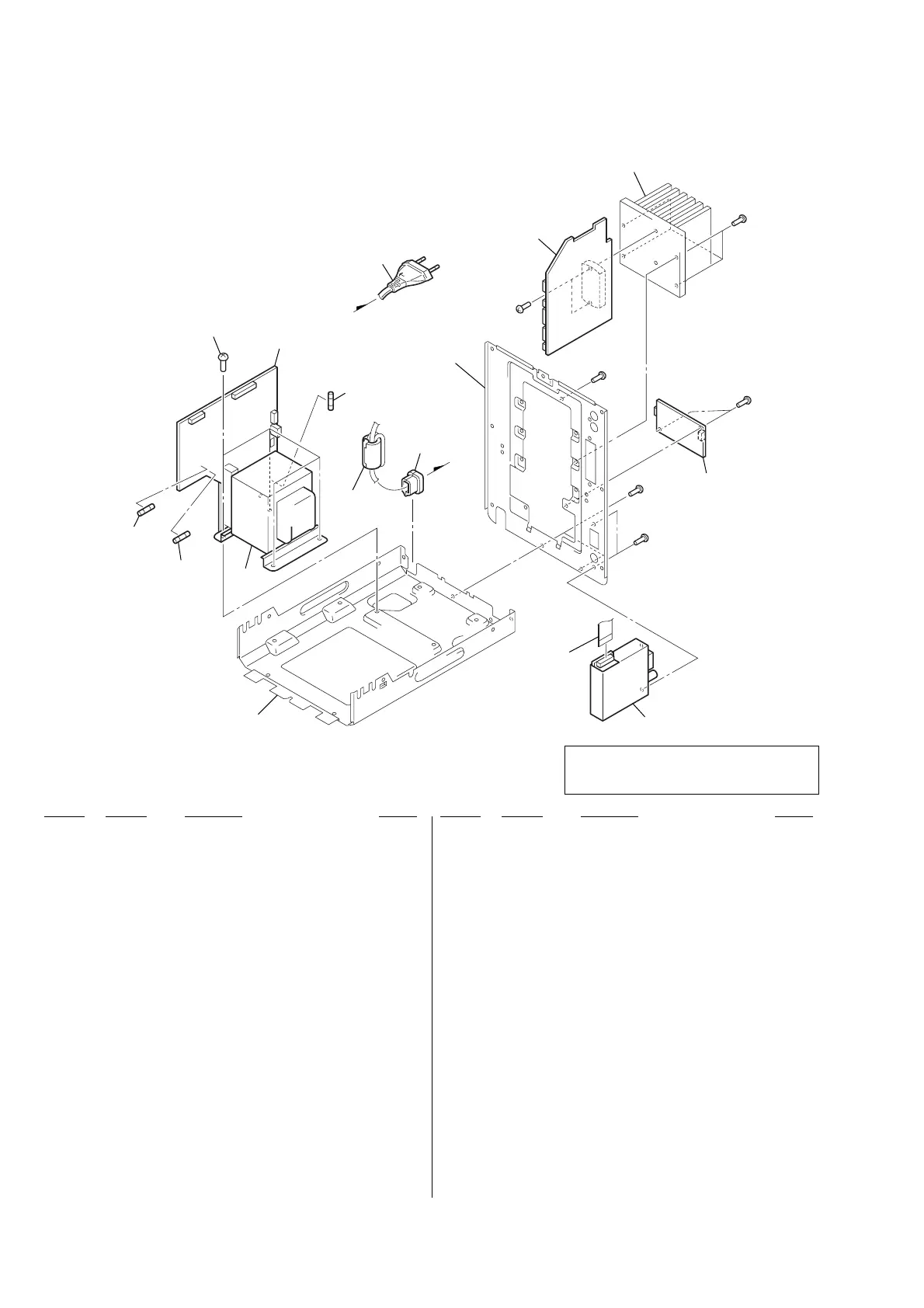

7-5. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
202 4-900-386-01 SCREW
203 A-1052-488-A POWER BOARD, COMPLETE (US)
203 A-1059-498-A POWER BOARD, COMPLETE (HK, SP)
203 A-1059-548-A POWER BOARD, COMPLETE (KR)
203 A-1059-564-A POWER BOARD, COMPLETE (AUS)
203 A-1061-979-A POWER BOARD, COMPLETE (AR)
203 A-4750-219-A POWER BOARD, COMPLETE (AEP)
204 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
205 3-703-244-00 BUSHING (2104), CORD
0 206 1-769-079-23 CORD, POWER (KR)
0 206 1-769-744-52 CORD, POWER (HK, SP, AEP)
0 206 1-775-790-12 CORD, POWER (AUS)
0 206 1-783-531-22 CORD, POWER (US)
0 206 1-829-387-11 CORD, POWER (AR)
207 A-1052-493-A AMP BOARD, COMPLETE (US)
207 A-1059-502-A AMP BOARD, COMPLETE (HK, SP, KR, AUS)
207 A-1061-981-A AMP BOARD, COMPLETE (AR)
207 A-4751-271-A AMP BOARD, COMPLETE (AEP)
208 1-468-738-11 REGULATOR, SWITCHING
209 1-693-625-11 TUNER (FM/AM) (US)
209 1-693-626-11 TUNER (FM/AM) (AEP)
209 1-693-628-11 TUNER (FM/AM) (HK, SP, AUS, AR)
209 1-693-629-11 TUNER (FM/AM) (KR)
0 F901 1-533-451-12 FUSE, GLASS TUBE (DIA. 5) (3.15A/125V)
(US)
0 F901 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15A/250V)
(HK, SP, KR, AUS)
0 F901 1-533-471-12 FUSE, GLASS TUBE (DIA. 5) (T4A/250V)
(AEP, AR)
0 F902 1-533-451-12 FUSE, GLASS TUBE (DIA. 5) (3.15A/125V)
(US)
0 F902 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15A/250V)
(HK, SP, KR, AUS)
0 F902 1-533-471-12 FUSE, GLASS TUBE (DIA. 5) (T4A/250V)
(AEP, AR)
0 F903 1-533-467-12 FUSE, GLASS TUBE (DIA. 5) (T1.6A/250V)
(HK, SP)
0 T901 1-443-197-11 TRANSFORMER, POWER (AEP, AR)
0 T901 1-443-204-11 TRANSFORMER, POWER (US)
0 T901 1-443-205-11 TRANSFORMER, POWER (HK, SP, KR, AUS)
#1 7-685-871-01 SCREW +BVTT 3X6 (S)
#6 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#7 7-685-874-09 SCREW +BVTT 3X12 (S)
202
203
204
205
206
207
208
209
not supplied
not supplied
not supplied
not supplied
#6
#1
#1
#1
#1
#7
F901
T901
F902
F903
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
