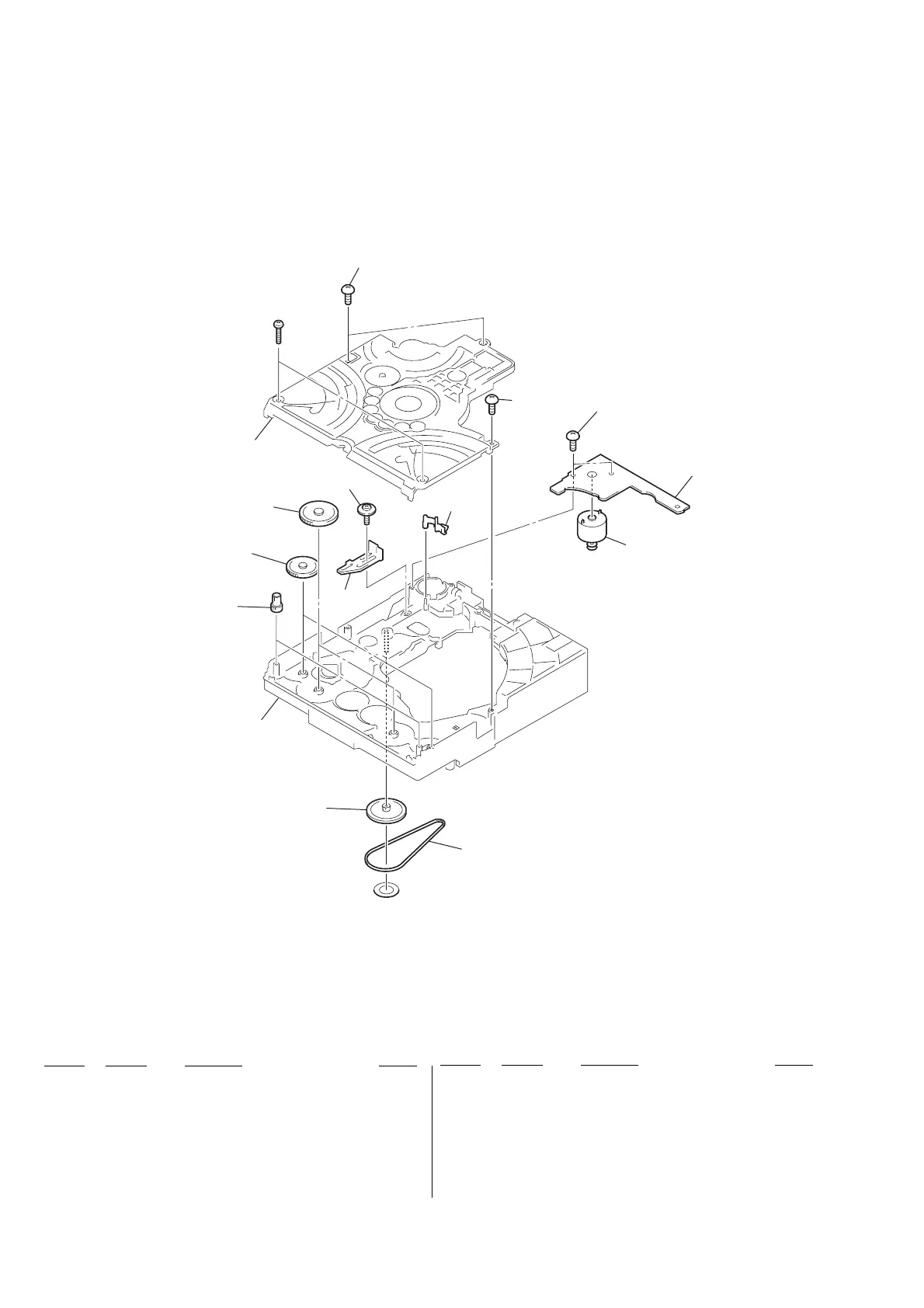

7-7. CD MECHANISM DECK SECTION-2
(CDM80B-F1BD81)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
401 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
403 4-245-653-01 BELT (MOT)
404 4-245-662-02 PULLEY (GEAR)
405 4-245-646-01 GEAR (IDL-F)
406 4-245-644-01 GEAR (IDL-D)
407 4-245-645-01 GEAR (IDL-E)
408 4-246-203-01 LEVER (RELEASE)
409 4-245-630-01 LEVER (SW)
410 4-951-620-01 SCREW (2.6X8), +BVTP
412 1-688-337-11 DRIVER BOARD
M701 X-2021-530-1 MOTOR (PULLEY) ASSY (LOADING)
#8 7-623-921-01 WASHER 1.7, NYLON
#9 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
CD mechanism section-3
(CDM80B-F1BD81)
410
410
410
412
409
408
401
407
406
405
404
403
CD mechanism section-4
(CDM80B-F1BD81)
#8
M701
#9
