Sony HCD-GTR33 - CD Mechanism Block (CDM88 B-DVBU101); Optical Pick-Up Block (KHM-313 CAB); Belt (DLM3 A)

HCD-GTR33/GTR55/GTR77
10

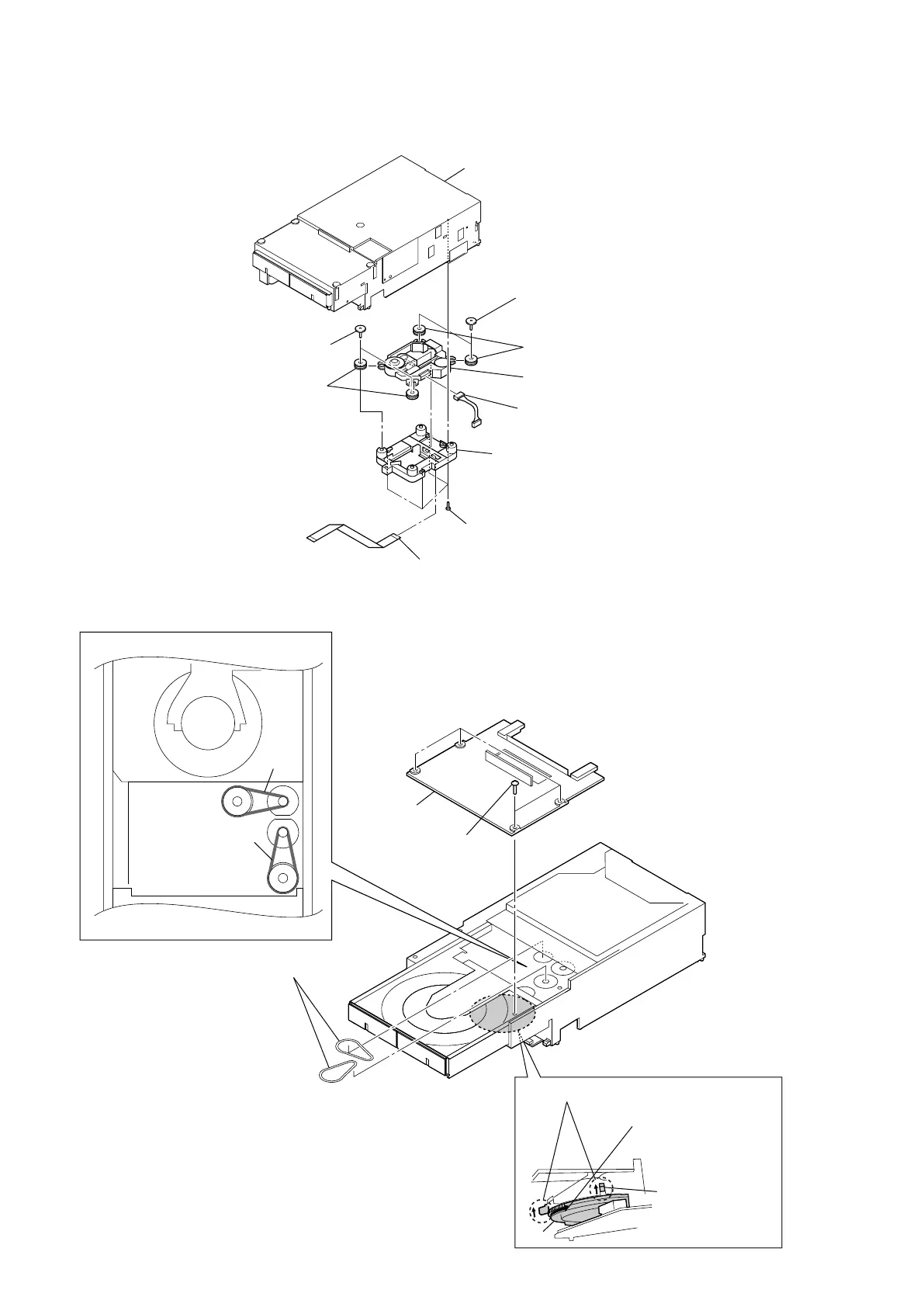

2-11. OPTICAL PICK-UP BLOCK (KHM-313CAB)
2-12. BELT (DLM3A)
2
four screws
3
cover
4
two belts (DLM3A)
belt
belt
position of belt
gear
lever
1 Turn a gear till a lever
rises up to the position
of the figure.
state of opening the CD tray
CD mechanism block
(CDM88BL-DVBU101)
4 two insulator screws
5 two insulators
4 two insulator screws
5 two insulators
7 optical pick-up block
(KHM-313CAB)
3 connector
6 holder BU
1 four screws
(BVTP2.6)
2 wire (flat type) (24 core)
