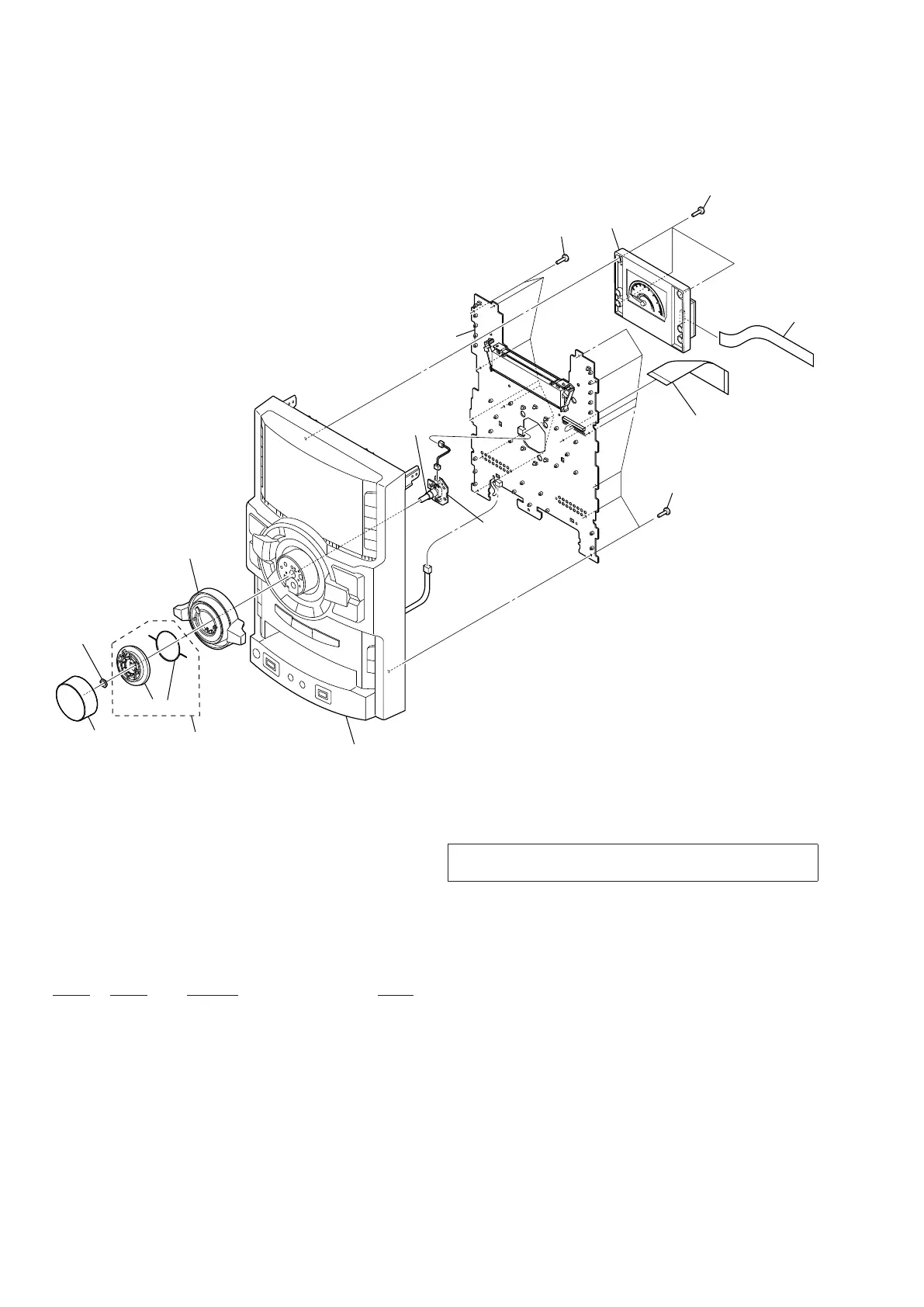

7-4. DISPLAY BOARD SECTION
Ref. No. Part No. Description Remark
not supplied
(VOL board)
not supplied
not supplied
(DISPLAY board)
S1301
front panel section
supplied with
S1301
151
157
152
153
155
156
153
154
153
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
151 4-164-361-01 KNOB (VOLUME) (GTR33/GTR55)
151 4-164-361-11 KNOB (VOLUME) (GTR77)
152 4-164-363-01 KNOB (JOG)
153 3-087-053-01 +BVTP2.6 (3CR)
154 A-1754-602-A METER DISPLAY ASSY (GVX) (GTR55/GTR77)
154 A-1754-606-A PANEL (GVX1) ASSY, DISPLAY (GTR33)
155 1-838-059-11 FLEXIBLE FLAT CABLE (23 CORE)
156 1-828-964-11 WIRE (FLAT TYPE) (11 CORE) (GTR55/GTR77)
157 X-2541-975-1 HOLDER (JOG) ASSY
S1301 1-487-171-11 ROTARY ENCODER
