Sony HCD-GTR33 - Page 39

HCD-GTR33/GTR55/GTR77
39

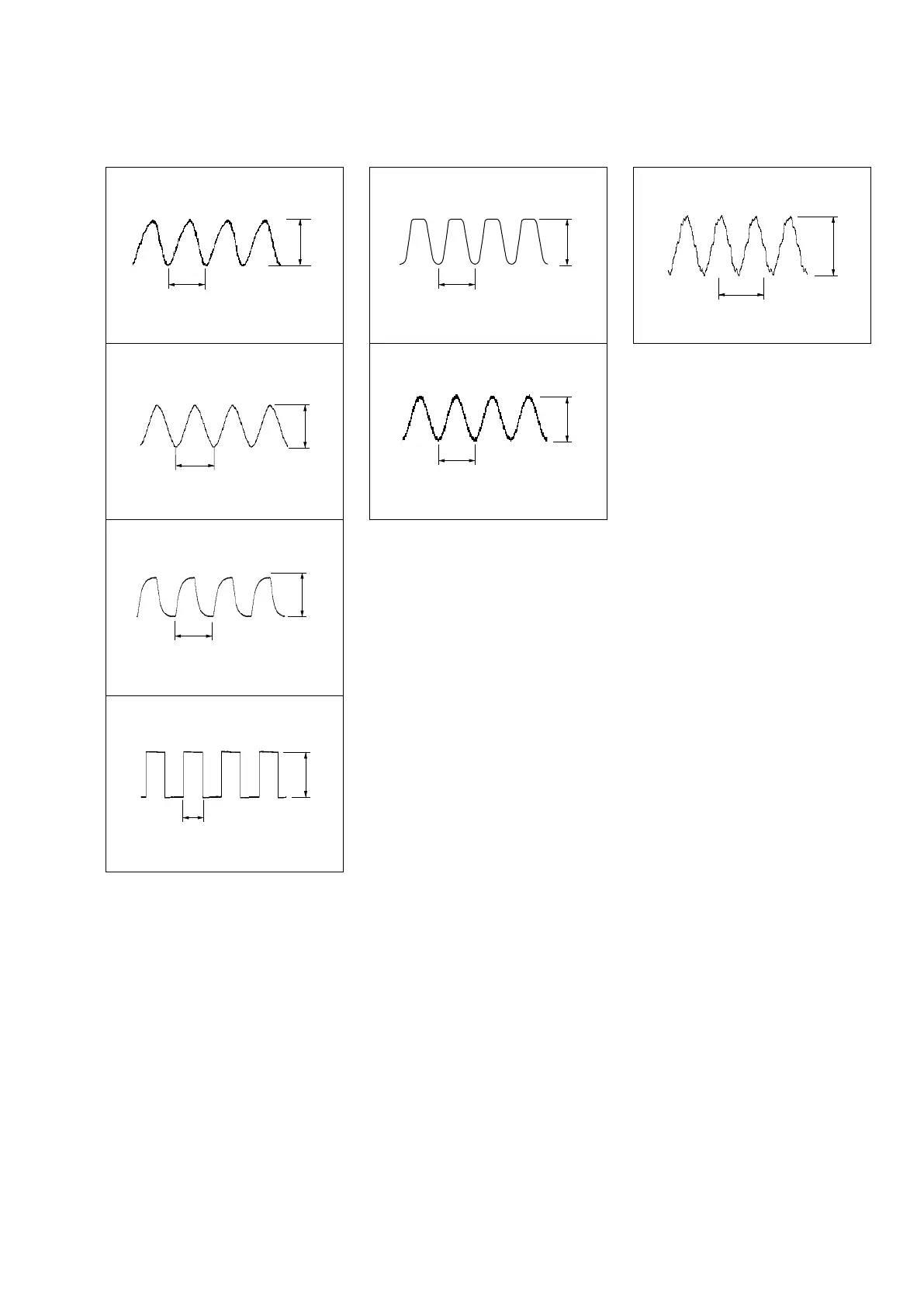

• Waveforms
– DMB19 Board – – MAIN Board – – HUB Board –
1
IC101 0 (XTALO)
100 mV/DIV, 20 ns/DIV
58.6 ns
216.7 mVp-p
2 V/DIV, 20 Ps/DIV
29.3 ns
2.67 Vp-p
5
IC401 qa (XC-OUT)
6
IC401 qd (X-OUT)
200 mV/DIV, 100 ns/DIV
293 ns
300 mVp-p
7
IC1501 es (XTAL2)
1 V/DIV, 10 ms/DIV
20 ms
4.5 Vp-p
2
IC101 <zzv (GPIO)
200 mV/DIV, 20 ns/DIV
43.3 ns
766.7 mVp-p
3
IC101 <zzb (GPIO)
1 V/DIV, 100 ns/DIV
353 ns
3.2 Vp-p
23.3 Ps
3.5 Vp-p
4
IC101 <zz. (GPIO)
1 V/DIV, 10 Ps/DIV
