Sony HCD-H331 - Exploded Views; Chassis Section Exploded View

– 48 –
SECTION 8
EXPLODED VIEWS
The components identified by mark
! or dotted line with mark ! are criti-
cal for safety.
Replace only with part number speci-
fied.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
NOTE :
r
-XX, -X mean standardized parts, so they may
have some difference from the original one.
r
Items marked “
*
”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
r
Abbreviation
AUS : Australian AR : Argentine
MX : Mexican
r
The mechanical parts with no reference num-
ber in the exploded views are not supplied.
r
Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.

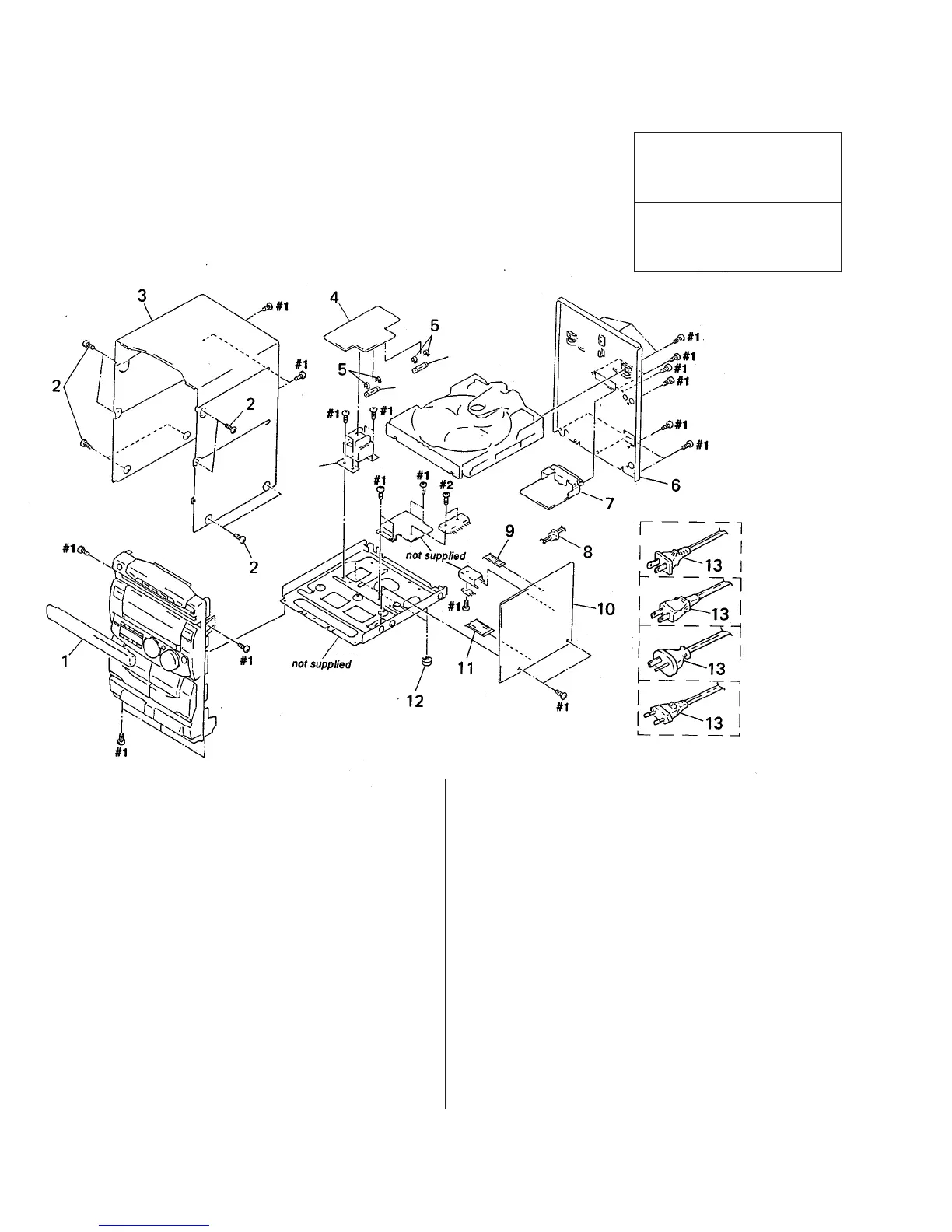

8-1. CHASSIS SECTION
US, Canadian
model
F1601
T1001
F1602
MX, E model
AUS model
AR model
8 3-703-571-11 BUSHING (S) (4516), CORD (US,Canadian,E,MX)
9 1-769-977-11 WIRE (FLAT TYPE) (13 CORE)
* 10 A-4389-126-A MAIN BOARD, COMPLETE (H331:AR,AUS,E,MX)
* 10 A-4389-127-A MAIN BOARD, COMPLETE (H331:US,Canadian)
* 10 A-4389-144-A MAIN BOARD, COMPLETE (H331D)
11 1-776-240-11 WIRE (FLAT TYPE) (19 CORE)
12 4-965-822-01 FOOT
! 13 1-575-651-11 CORD, POWER (AR)
! 13 1-575-653-11 CORD, POWER (E,MX)
! 13 1-690-608-11 CORD, POWER (AUS)
! 13 1-690-609-21 CORD, POWER (US,Canadian)
! F1601 1-532-350-00 FUSE, TIME LAG (T4.0A/250V) (E,AUS,MX,AR)
! F1601 1-533-419-11 FUSE, GLASS CYLINDRICAL(DIA.5)(4.0A/125V)
(US,Canadian)
! F1602 1-532-350-00 FUSE, TIME LAG (T4.0A/250V) (E,AUS,MX,AR)
! F1602 1-533-419-11 FUSE, GLASS CYLINDRICAL(DIA.5)(4.0A/125V)
(US,Canadian)
! T1001 1-429-309-11 TRANSFORMER, POWER (US,Canadian)
! T1001 1-429-342-11 TRANSFORMER, POWER (E,AUS,MX,AR)
* 1 4-979-851-01 PANEL, LOADING (H331:US,Canadian)
* 1 4-979-851-11 PANEL, LOADING (H331:E,AUS,MX,AR)
* 1 4-979-851-21 PANEL, LOADING (H331D)
2 3-363-099-01 SCREW (CASE 3 TP2)
* 3 4-978-748-01 CASE
* 4 1-659-148-11 TRANSFORMER BOARD
5 1-533-217-31 HOLDER, FUSE
* 6 4-979-270-01 PANEL, BACK (H331:US)
* 6 4-979-270-11 PANEL, BACK (Canadian)
* 6 4-979-270-21 PANEL, BACK (H331D)
* 6 4-979-271-01 PANEL, BACK (E)
* 6 4-979-271-11 PANEL, BACK (AUS)
* 6 4-979-271-21 PANEL, BACK (MX)
* 6 4-979-271-31 PANEL, BACK (AR)
7 1-233-544-11 ENCAPSULATED COMPONENT
(US,Canadian,MX)
7 1-233-545-11 ENCAPSULATED COMPONENT (E,AUS,AR)
* 8 3-703-244-00 BUSHING (2104), CORD (US,Canadian,AUS,AR)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
––––––– ––––––– –––––––––– ––––––– ––––––– ––––––– –––––––––– ––––––
