Sony HCD-H331 - Disassembly Procedure; Front Panel Removal

– 7 –
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

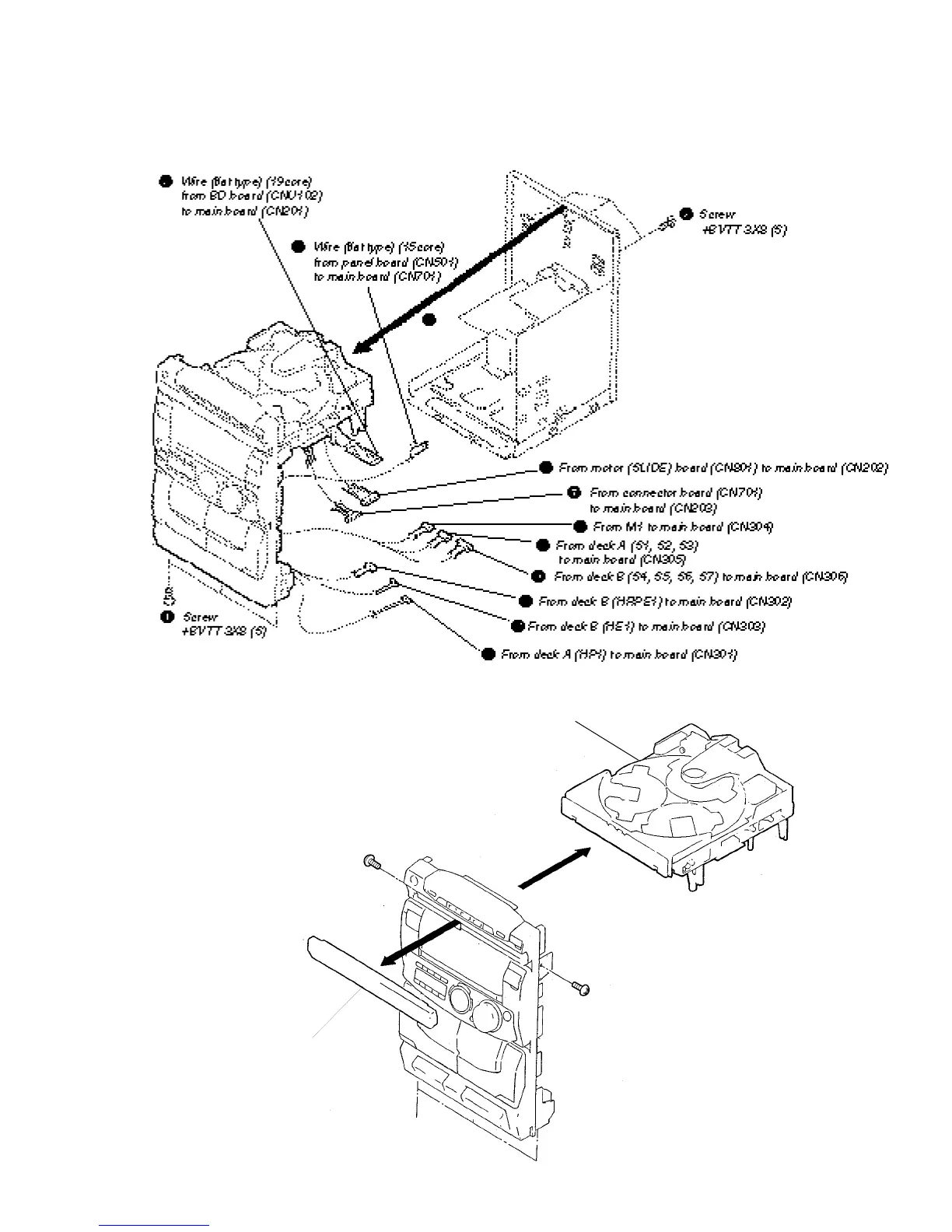

3-1. FRONT PANEL REMOVAL
3-2. CD BLOCK REMOVAL
1 Screw
+BVTT 3X8 (S)
1 Screw
+BVTT 3X8 (S)
2 Loading panel
3
CD block (CDM38-5BD19)
