Sony HCD-MD313 - System Waveform Analysis; Main Section Waveforms; Audio Section Waveforms

– 66 –

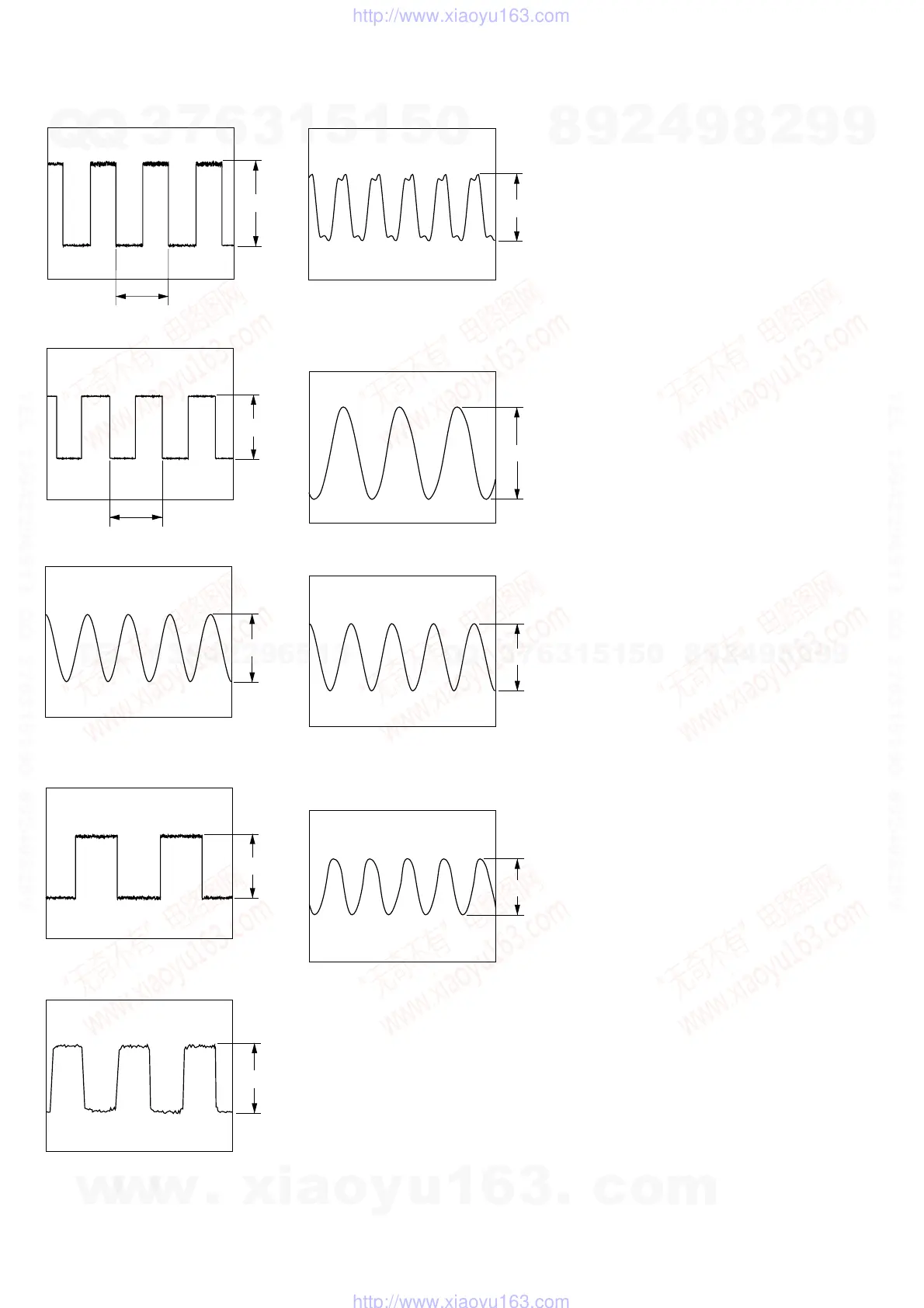

!¡ IC121 @¶ (FS256)
6 IC152 #¡ (CAPA+) (Play Mode)
3.4 Vp-p
11.2896 MHz
3.4 Vp-p
5.7 µ sec
7 IC121 (º (FS4)
3.1 Vp-p
22.5792 MHz
8 IC121 !§ (OSCI)
3.4 Vp-p
44.1 kHz
9 IC121 @∞ (LRCK)
3.5 Vp-p
2.8224 MHz
0 IC121 @§ (XBCK)
4.6 Vp-p
1.5 µ sec
– MAIN Section –
4.3 Vp-p
5 MHz
1 IC601 !¡ (XI)
2.6 Vp-p
32 kHz
1 IC601 !¢ (XTI)
– AUDIO Section –
1 IC1500 !£ (XI)
4.8 Vp-p
4.332 MHz
