– 82 –
SECTION 7
EXPLODED VIEWS
HK : Hong Kong
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AED : North European
CND : Canadian
G : German
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

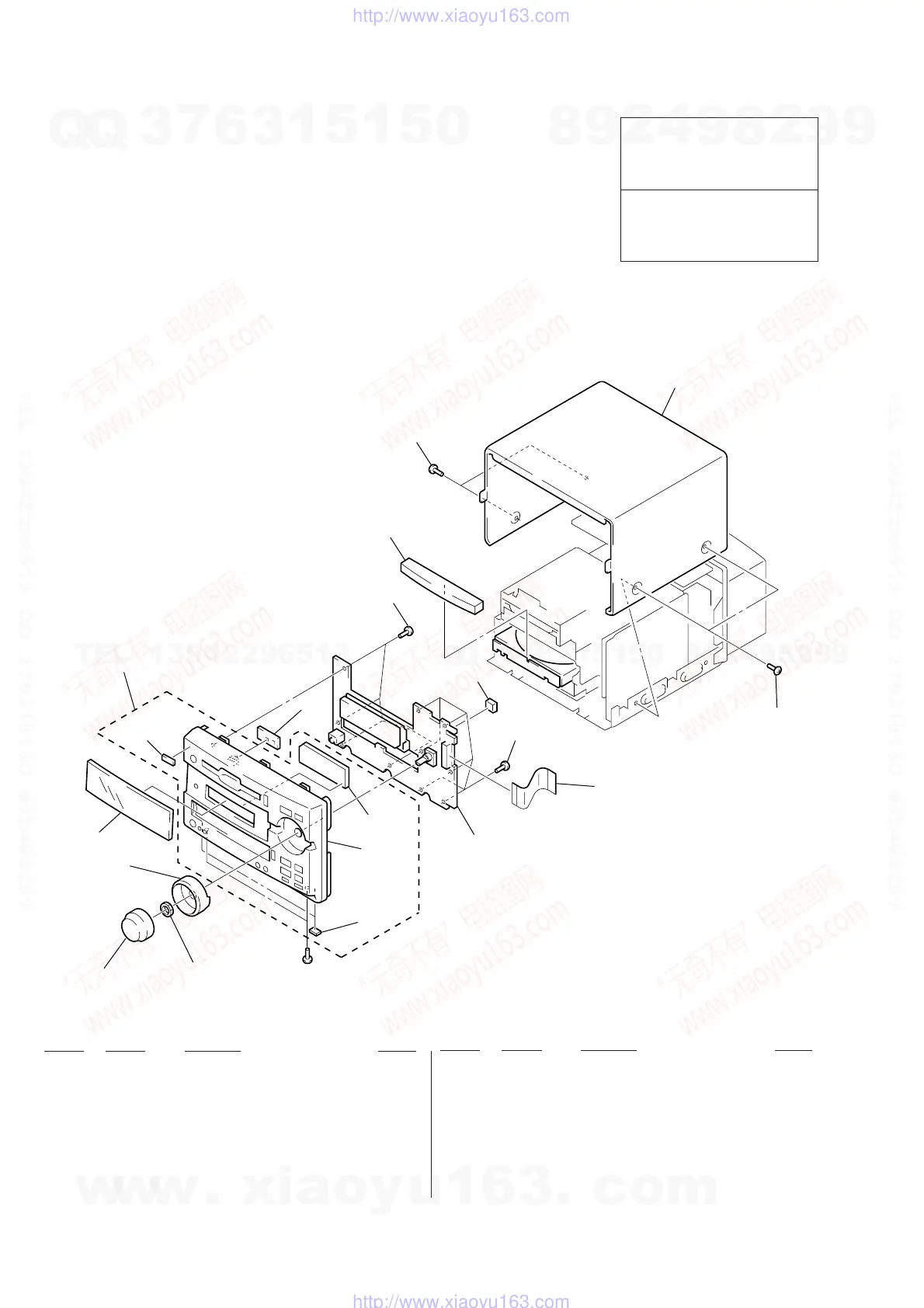

(1) FRONT PANEL SECTION
HK : Hong Kong
MY: Malaysia
SP : Singapore
1 X-4949-008-1 KNOB (VOL) ASSY
2 4-993-862-01 RING (VOL)
3 4-993-863-01 WINDOW (M3) (CND, MY, SP, HK)
3 4-993-863-11 WINDOW (M3) (AEP, UK, G, AED)
4 X-4948-965-1 PANEL ASSY, FRONT (AEP, UK, G, AED)
4 X-4949-259-3 PANEL ASSY, FRONT (CND, MY, SP, HK)
5 4-962-708-01 EMBLEM (4-A), SONY
* 6 4-930-336-71 FOOT (FELT)
* 7 1-666-899-11 MD-LED BOARD
8 4-951-620-01 SCREW (2.6X8), +BVTP
* 9 A-4403-402-A PANEL BOARD, COMPLETE
10 1-782-793-11 WIRE (FLAT TYPE) (23 CORE)
11 4-993-851-01 PANEL (CD), LOADING
12 3-363-099-11 SCREW (CASE 3 TP2)
* 13 4-993-842-01 CASE
14 4-993-852-01 FILTER (FL)
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
1
2
3
5
4
6
9
8
10
8
11
12
13
12
not
supplied
not supplied
supplied with S901
#1
7
14
