– 83 –

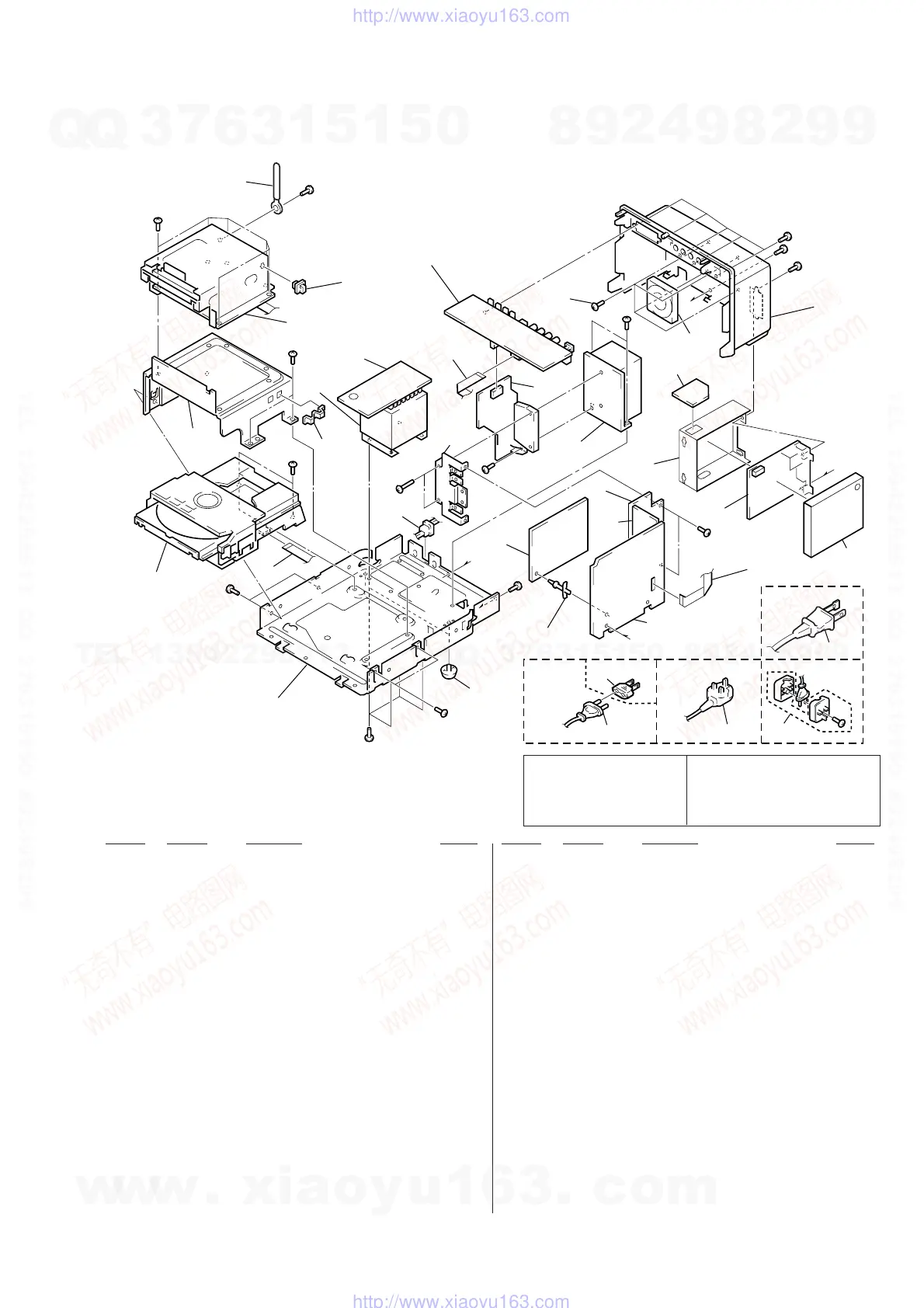

(2) CHASSIS SECTION
51 4-993-867-01 FOOT (8)
52 1-782-990-11 WIRE (FLAT TYPE) (19 CORE)
53 3-703-244-00 BUSHING (2104), CORD
* 54 1-666-904-11 TRANSFORMER BOARD
* 55 A-4403-410-A POWER AMP BOARD, COMPLETE
(AEP, UK, G, AED)
* 55 A-4403-417-A POWER AMP BOARD, COMPLETE (MY, SP, HK)
* 55 A-4407-385-A POWER AMP BOARD, COMPLETE (CND)
56 1-782-991-11 WIRE (FLAT TYPE) (15 CORE) (10 cm)
* 57 A-4403-414-A JACK BOARD, COMPLETE (AEP, UK, G, AED)
* 57 A-4403-421-A JACK BOARD, COMPLETE (MY, SP, HK)
* 57 A-4407-389-A JACK BOARD, COMPLETE (CND)
58 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
* 59 4-993-849-11 PANEL, BACK (AEP, UK, G, AED)
* 59 4-993-849-21 PANEL, BACK (MY, SP, HK)
* 59 4-993-849-31 PANEL, BACK (CND)
* 60 1-666-905-11 ST TERMINAL BOARD
* 61 4-984-203-21 PLATE (ST-A), SHIELD
62 1-233-544-21 ENCAPSULATED COMPONENT (CND)
62 1-233-546-21 ENCAPSULATED COMPONENT (MY, SP, HK)
62 1-693-387-21 TUNER (FM/MW/LW) (AEP, UK, G, AED)
* 63 4-984-204-11 PLATE (ST-B), SHIELD
64 1-783-213-11 WIRE (FLAT TYPE) (15 CORE): BEND (10 cm)
* 65 A-4403-408-A MAIN BOARD, COMPLETE (AEP, UK, G, AED)
* 65 A-4403-415-A MAIN BOARD, COMPLETE (MY, SP, HK)
* 65 A-4407-383-A MAIN BOARD, COMPLETE (CND)
* 66 4-924-098-91 HOLDER, PC BOARD
* 67 A-4403-412-A AUDIO BOARD, COMPLETE (AEP, UK, G, AED)
* 67 A-4403-419-A AUDIO BOARD, COMPLETE (MY, SP, HK)
* 67 A-4407-387-A AUDIO BOARD, COMPLETE (CND)
! 68 1-569-008-11 ADAPTOR, CONVERSION 2P (MY, SP)
! 69 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
! CNP16011-690-609-71 CORD, POWER (CND)
! CNP16011-696-570-21 CORD, POWER (UK)
! CNP16011-769-744-11 CORD, POWER (EXCEPT CND, UK)
FAN901 1-698-997-11 FAN, DC
! T1600 1-431-497-11 TRANSFORMER, POWER (AEP, UK, G, AED)
! T1600 1-431-498-11 TRANSFORMER, POWER (MY, SP, HK)
! T1600 1-431-756-11 TRANSFORMER, POWER (CND)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
MDM-3D
not
supplied
not
supplied
not
supplied
not supplied
CDM13C-5BD19
#4
#1
CNP1601 CNP1601
CNP1601
#2
T1600
#2
#4
EXCEPT
CND, UK
MY, SP UK HK
CND
#4
#1
#1
FAN901
#1
#1
#4
#2
#2
not
supplied
not
supplied
#3
#4
not supplied
52
53
54
56
55
58
59
63
64
69
68
65
(including
r
A,
r
B)
62
61
60
57
51
66
67
B
A
B
C
A
C
r
A
r
B
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.
