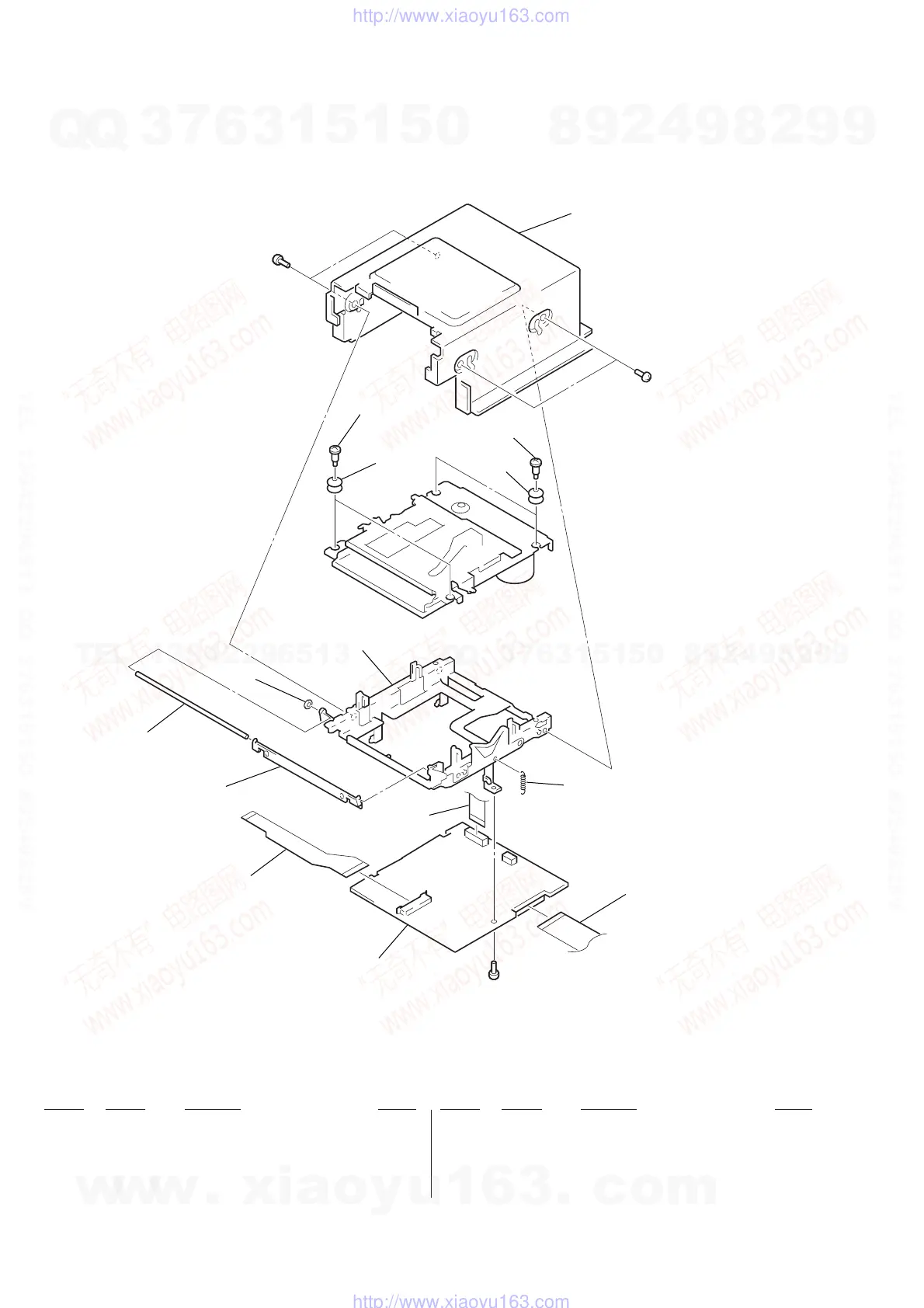

(3) MD MECHANISM DECK SECTION-1
(3) (MDM-3D)
#5
#
not supplied
not supplied
#6
108
106
105
104
102
107
107
108
101
110
109
103
* 101 A-4699-808-A BD (MD) BOARD, COMPLETE
102 1-660-966-11 OP RELAY FLEXIBLE BOARD
103 1-782-683-11 WIRE (FLAT TYPE) (14 CORE)
104 X-4948-722-1 SHUTTER ASSY
105 4-987-736-01 SHAFT (SHUTTER)
106 4-986-959-01 WASHER, STOPPER
107 4-987-327-01 INSULATOR
108 4-628-167-01 SCREW, STEP
109 4-987-910-01 SPRING (O/C), TENSION
110 1-783-113-11 WIRE (FLAT TYPE) (25 CORE)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
