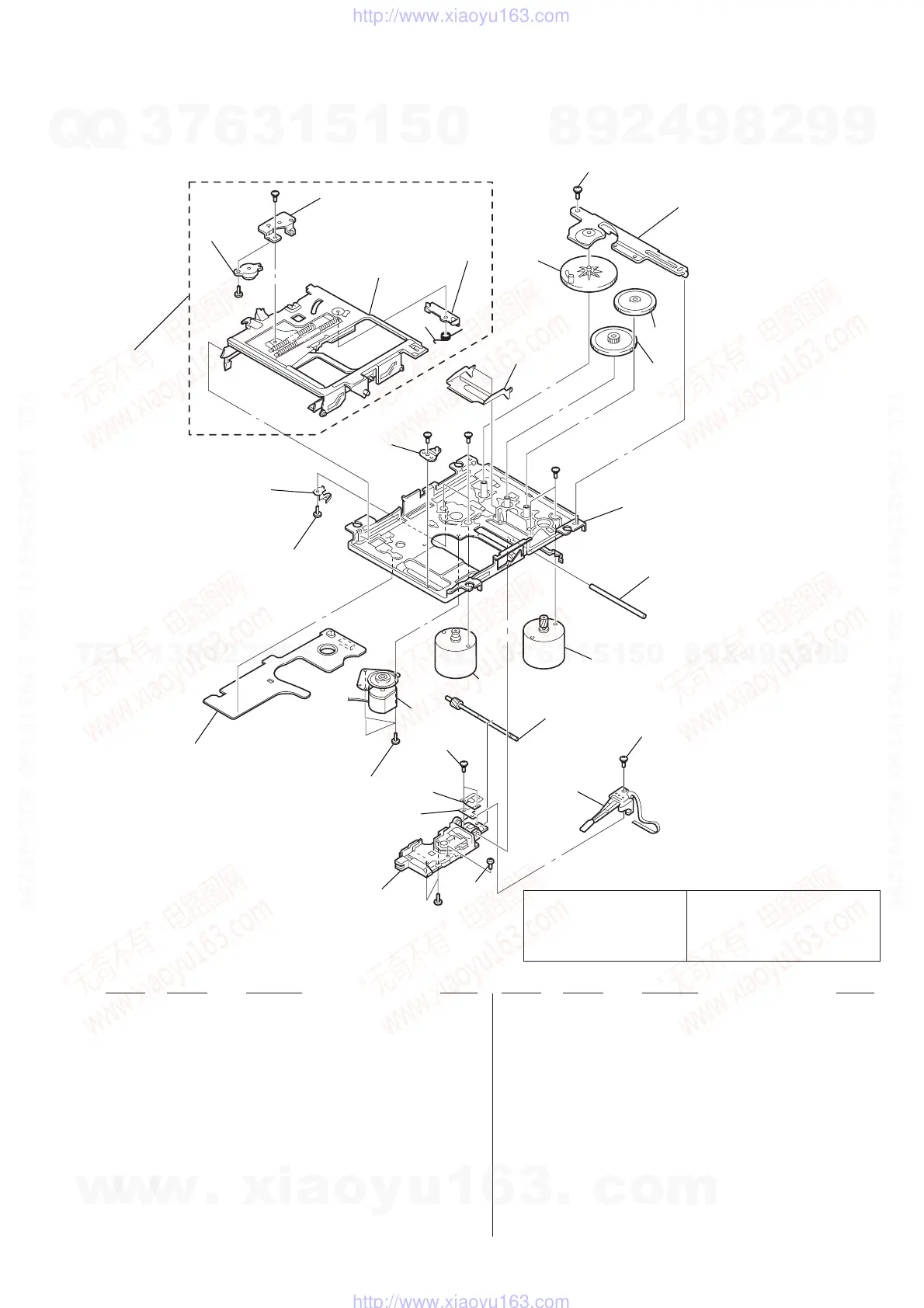

(4) MD MECHANISM DECK SECTION-2
(3) (MDM-3D)
151
153
152
154
161
155
163
155
165
168
167
170
166
164
162
160
171
157
155
156
158
159
169
HR901
#8
M901
M903
#7
#7
#13
172
not supplied
#5
#5
M902
not supplied
151 A-4672-138-A SLIDER COMPLETE ASSY
* 152 4-983-439-01 BRACKET (DAMPER)
153 3-953-235-01 DAMPER, OIL
* 154 4-983-437-01 SLIDER (CAM)
155 3-342-375-11 SCREW (M1.7X1.4), SPECIAL
156 4-979-890-13 RETAINER (GEAR)
157 4-979-898-01 GEAR (LB)
158 4-979-899-01 GEAR (LC)
159 4-979-897-01 GEAR (LA)
160 4-979-885-01 LEVER (HEAD UP)
161 4-979-906-11 SPRING (LEAD SCREW)
162 4-984-556-01 SHAFT (MAIN SHAFT)
* 163 1-667-719-11 SW BOARD
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
164 A-3304-200-A SCREW ASSY, LEAD
165 4-963-914-02 RACK (INSERTER)
166 3-366-890-11 SCREW (M1.4)
! 167 8-583-028-02 OPTICAL PICK-UP KMS-260A/J1N (for MD)
168 4-987-061-01 SPACER (RACK)
169 4-988-560-01 SCREW (+P 1.7X6)
170 4-955-841-11 SCREW
171 4-979-914-01 SPRING (CLV), TORSION
* 172 4-983-511-02 PIN (OUTSERT)
HR901 1-500-396-11 HEAD, OVER LIGHT (RF325-74A)
M901 A-4672-135-A MOTOR ASSY, SPINDLE
M902 A-4672-133-A MOTOR ASSY, SLED
M903 A-4672-134-A MOTOR ASSY, LOADING (MD)
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
