Sony HCD-MD313 - Exploded Views; CD Mechanism Deck Section-1 Exploded View

– 86 –

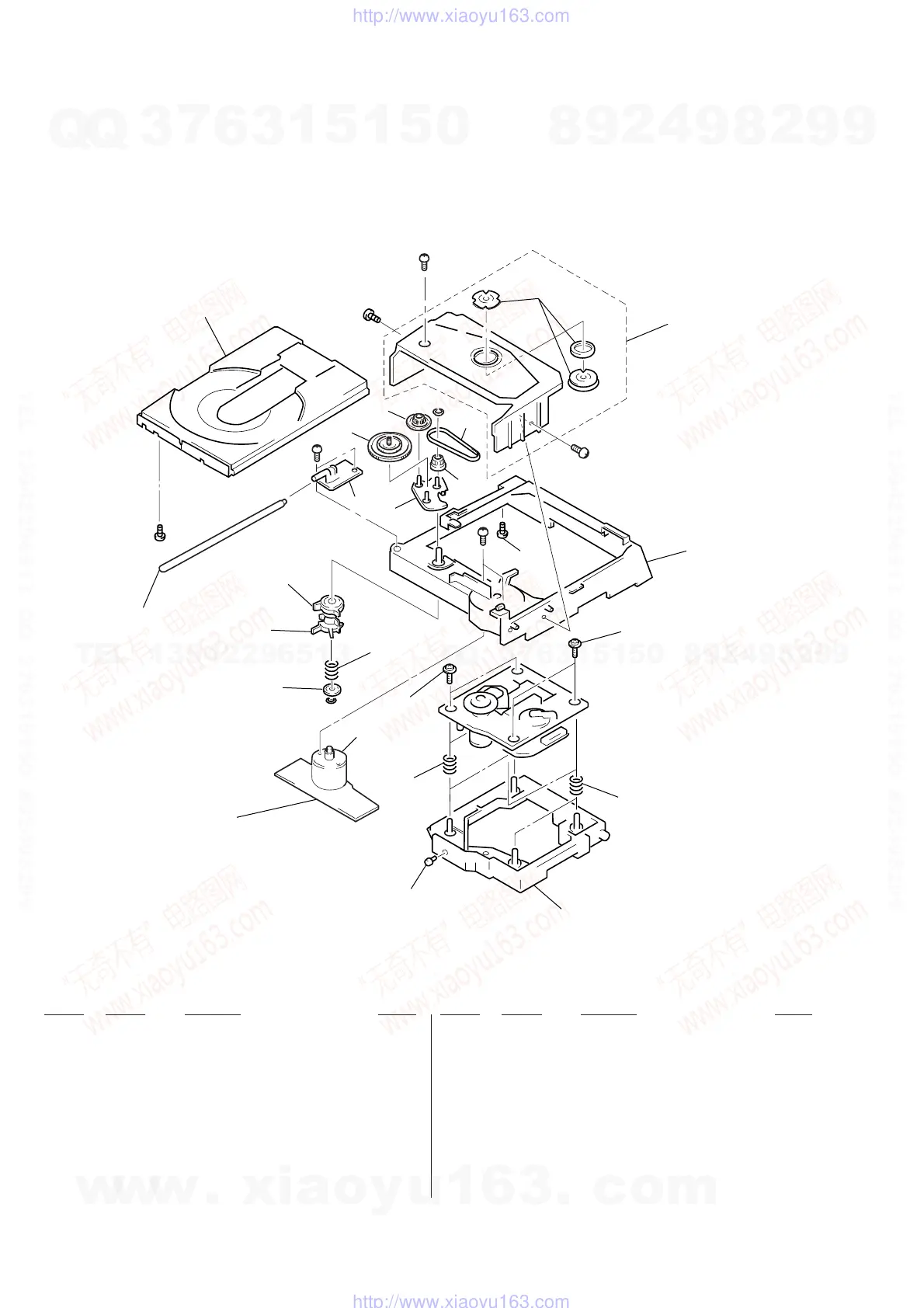

(5) CD MECHANISM DECK SECTION-1
(3) (CDM13C-5BD19)
#1
#1
#1
#1
#11
#10
#9
#9
M903
not supplied
not supplied
221
204
229
228
202
226
225
225
224
223
220
206
205
207
222
208
209
226
227
203
201
* 201 1-634-461-11 LOADING BOARD
202 4-927-654-01 WASHER (LIMITER)
203 3-659-338-00 SPRING, COMPRESSION
204 4-929-764-01 SHAFT (TABLE GUIDE)
205 4-927-620-01 GEAR (P)
206 4-944-006-11 BEARING
207 4-927-628-01 GEAR (C)
208 4-927-649-01 BELT
209 4-929-724-01 PULLEY (B)
220 X-4947-265-1 ARM ASSY, SWING
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
221 4-944-012-01 TABLE, DISC
222 A-4604-752-A HOLDER (MG) ASSY
* 223 4-917-583-21 BRACKET, YOKE
* 224 X-4946-208-2 CHASSIS (MD) ASSY
225 4-933-134-01 SCREW (+PTPWH M2.6X6)
226 4-958-593-01 SPRING (BU), COMPRESSION
227 4-929-747-01 HOLDER (BU)
228 4-929-727-01 CAM (A)
229 4-929-729-01 CAM (B)
M903 A-4608-362-A MOTOR (L) ASSY (LOADING) (CD)
