63
HCD-RV660D/RV990D

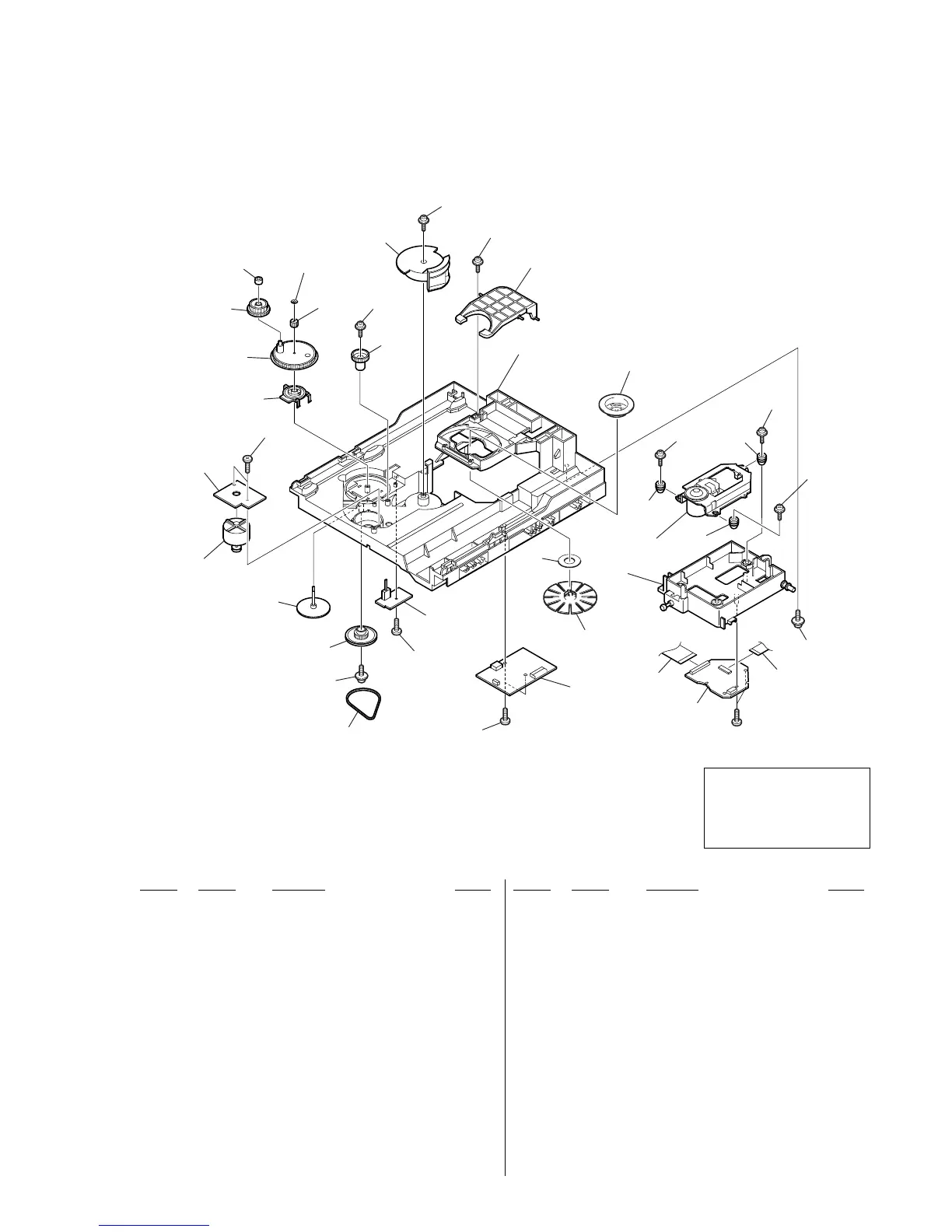

4-9. DVD MECHANISM DECK SECTION (2)
(CDM74S-DVBU23)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
351 1-687-135-11 DRIVER BOARD
352 4-218-253-31 SCREW (M2.6), +BTTP
353 1-687-669-11 SW BOARD
354 4-244-034-01 BELT (LOADING)
355 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
356 4-225-844-01 GEAR (LOADING A)
357 4-224-613-01 GEAR (SHAFT)
358 1-687-133-11 MOTOR (LD) BOARD
359 4-244-108-01 GEAR, SWING
360 4-224-609-01 GEAR (LOADING C)
361 4-224-608-01 COLLAR, SWING
362 3-016-533-11 WASHER (FR), STOPPER
363 4-224-611-01 GEAR (LOADING B)
364 4-224-606-01 GEAR (RV)
365 4-243-818-01 GEAR (U/D)
366 4-243-822-01 LEVER (LIFTER)
367 4-243-817-11 CHASSIS
368 4-233-594-01 PULLEY (B) (DVD), CHUCKING
369 4-981-923-01 SCREW (M), STEP
370 3-053-847-31 INSULATOR
0 371 1-477-263-11 OPTICAL PICK-UP UNIT
372 X-4955-538-1 HOLDER (DBU) ASSY
373 1-824-106-12 CABLE, FLEXIBLE FLAT (24 CORE)
374 1-827-410-11 WIRE (FLAT TYPE) (29 CORE)
375 A-4728-690-A RF BOARD, COMPLETE
376 X-4954-450-1 PULLEY (240) ASSY
377 3-053-844-01 YOKE
M751 A-4736-655-A MOTOR ASSY, LOADING (LOADING)
RE701 1-477-680-11 ENCODER, ROTARY
(DISC TRAY ADDRESS DETECT)
#7 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
351
352
352
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
368
369
369
370
370
371
372
373
375
374
370
369
367
376
377
355
355
355
355
M751
#7
RE701
To Next Page
