Sony HCD-RX99 - Transformer Section Printed Wiring Board; Leaf SW Section Printed Wiring Board; Leaf SW Section Schematic Diagram

– 69 – – 70 –
HCD-GRX8/R800/RX88/RX99

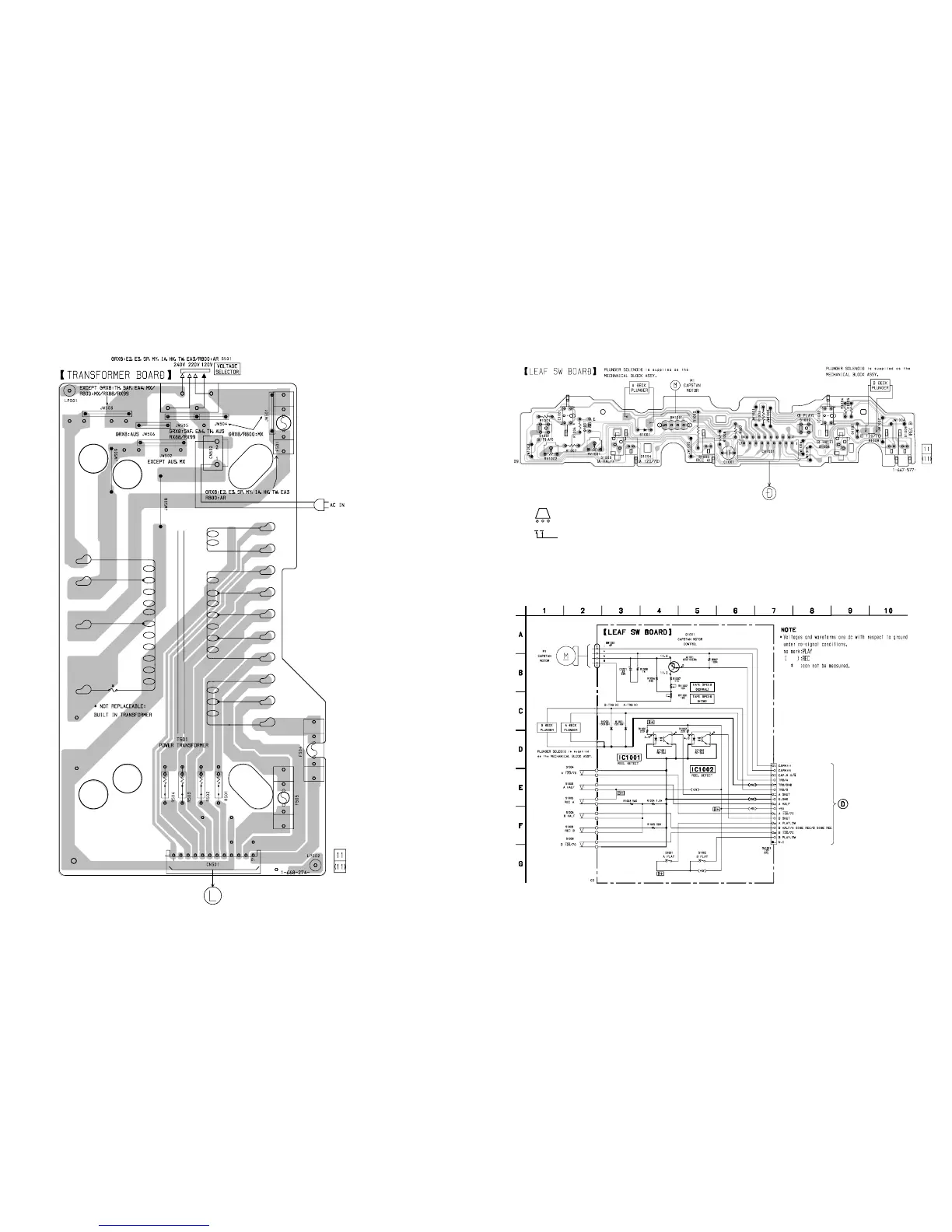

7-21. PRINTED WIRING BOARD – TRANSFORMER SECTION –
• See page 20 for Circuit Boards Location.
7-23. SCHEMATIC DIAGRAM – LEAF SW SECTION –
7-22. PRINTED WIRING BOARD – LEAF SW SECTION –
• See page 20 for Circuit Boards Location.
(Page 64)
(Page 51)
(Page 54)
C
These are omitted
EB
• Indication of transistor
