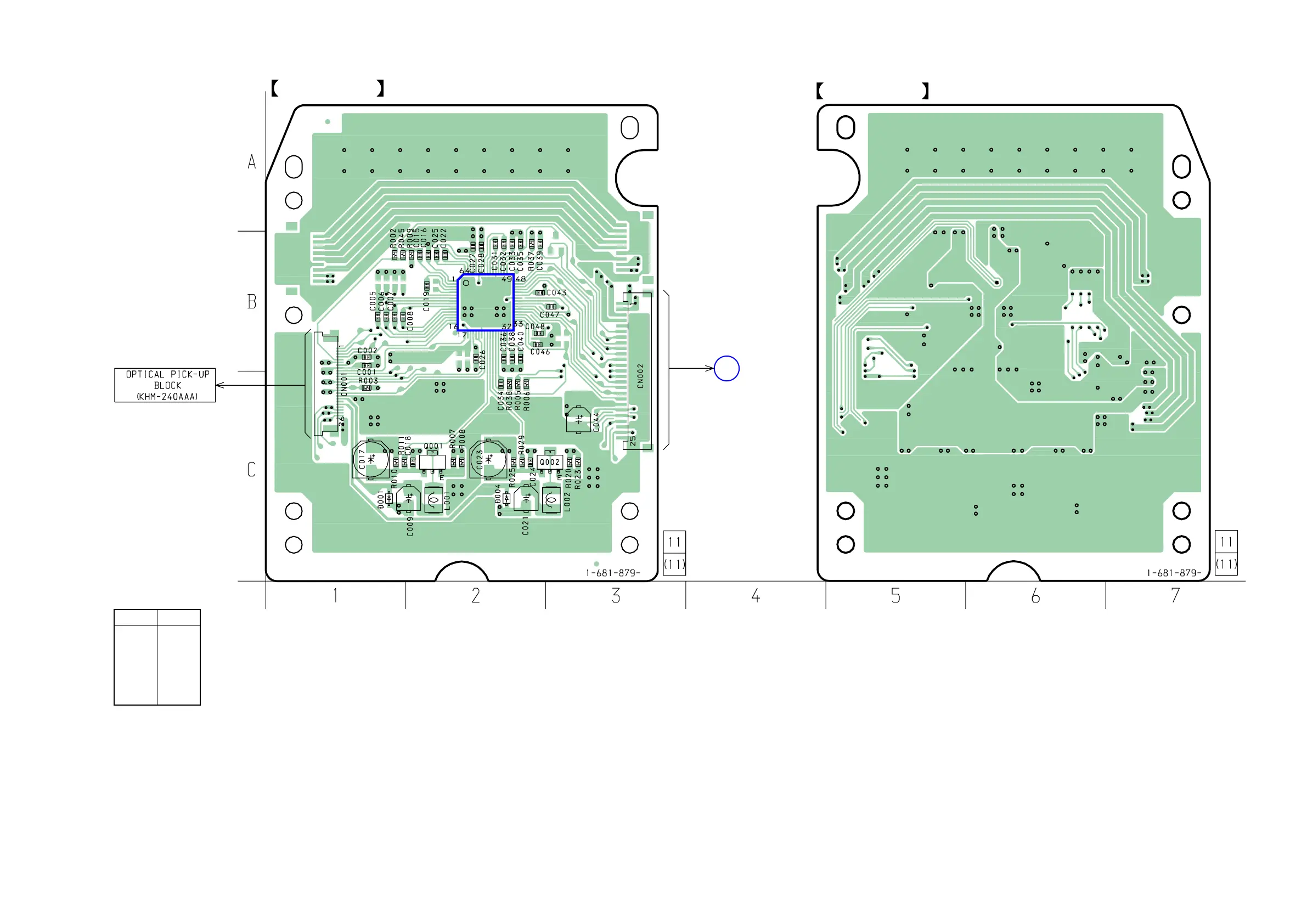

6-3. PRINTED WIRING BOARD – RF-240 SECTION – • See page 21 for Circuit Boards Location.
Ref. No. Location
D001 C-1
D004 C-2
IC001 C-2
Q001 C-2
Q002 C-3
• Semiconductor
Location
IC001
RF-240 BOARD (SIDE A)
RF-240 BOARD (SIDE B)
DVD
BOARD
CN010
(Page 27)
A
