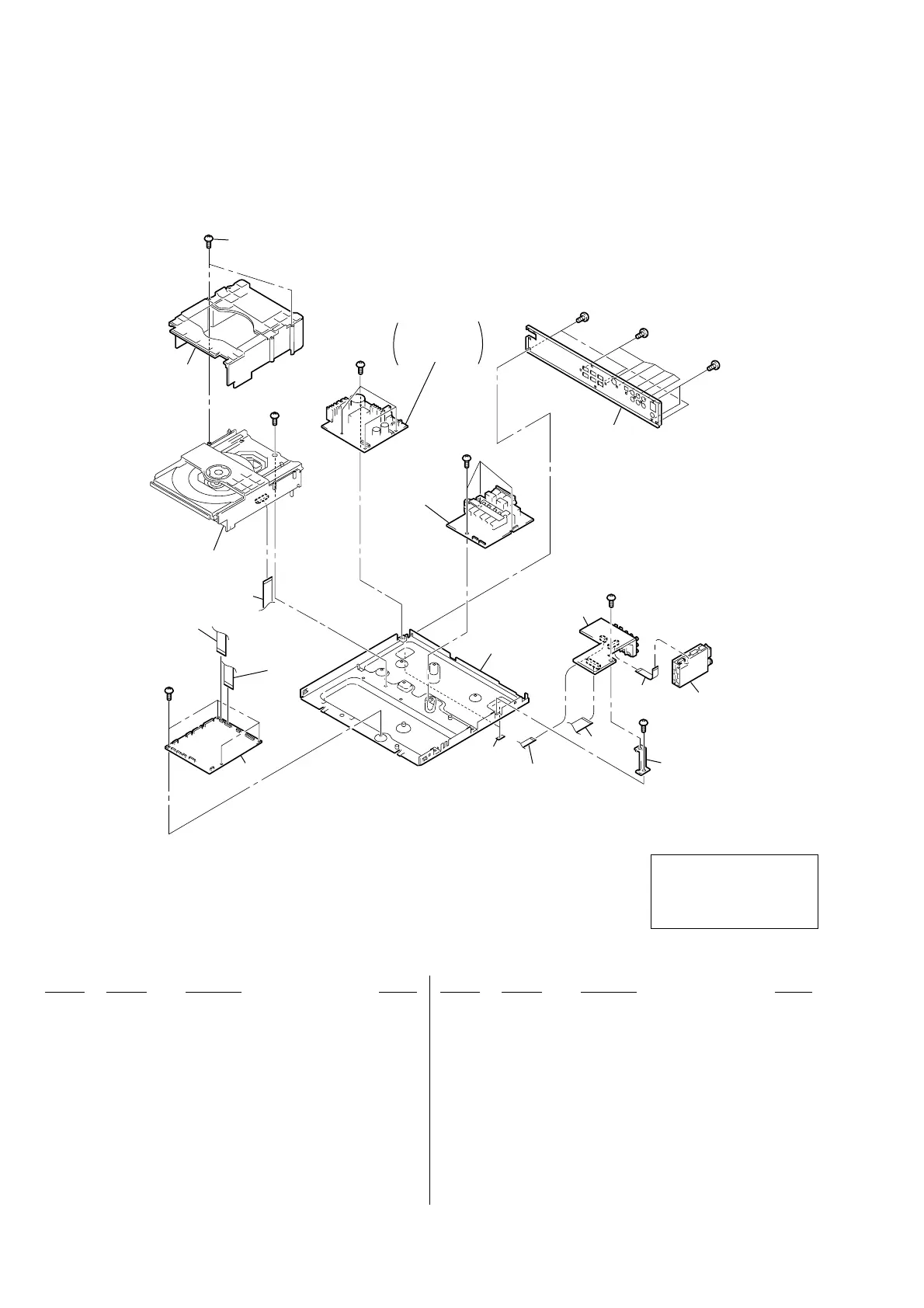

7-3. CHASSIS SECTION
CDM55C -DVBU8
not supplied
Supplied as
the assembled
block
not
supplied
101
102
103
104
105
106
107
108
109
110
113
114
111
112
115
#1
#1
#1
#1
#1
#1
#1
#1
#1
101 1-693-586-11 TUNER
102 1-823-082-11 CABLE, FLEXIBLE FLAT (13 CORE)
103 A-4728-797-A I/O BOARD, COMPLETE
104 1-823-079-11 CABLE, FLEXIBLE FLAT (29 CORE)
105 1-823-074-11 CABLE, FLEXIBLE FLAT (9 CORE)
106 4-234-924-01 FOOT
107 A-4676-502-A DVD BOARD, COMPLETE (CIS)
107 A-4728-793-A DVD BOARD, COMPLETE (AEP,UK)
108 4-237-232-01 COVER, MD
109 4-951-620-01 SCREW (2.6X8), +BVTP
0 110 1-761-558-11 REGULATOR, SWITCHING
111 1-823-075-21 CABLE, FLEXIBLE FLAT (12 CORE)
112 1-823-353-21 CABLE, FLEXIBLE FLAT (17 CORE)
113 A-4728-790-A AMP BOARD, COMPLETE
114 1-823-354-11 CABLE, FLEXIBLE FLAT (25 CORE)
115 4-240-416-01 BACK PANEL (AEP,UK)
115 4-240-416-11 BACK PANEL (CIS)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
