Sony HCD-S400 - Front Panel Section

57
HCD-S400
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

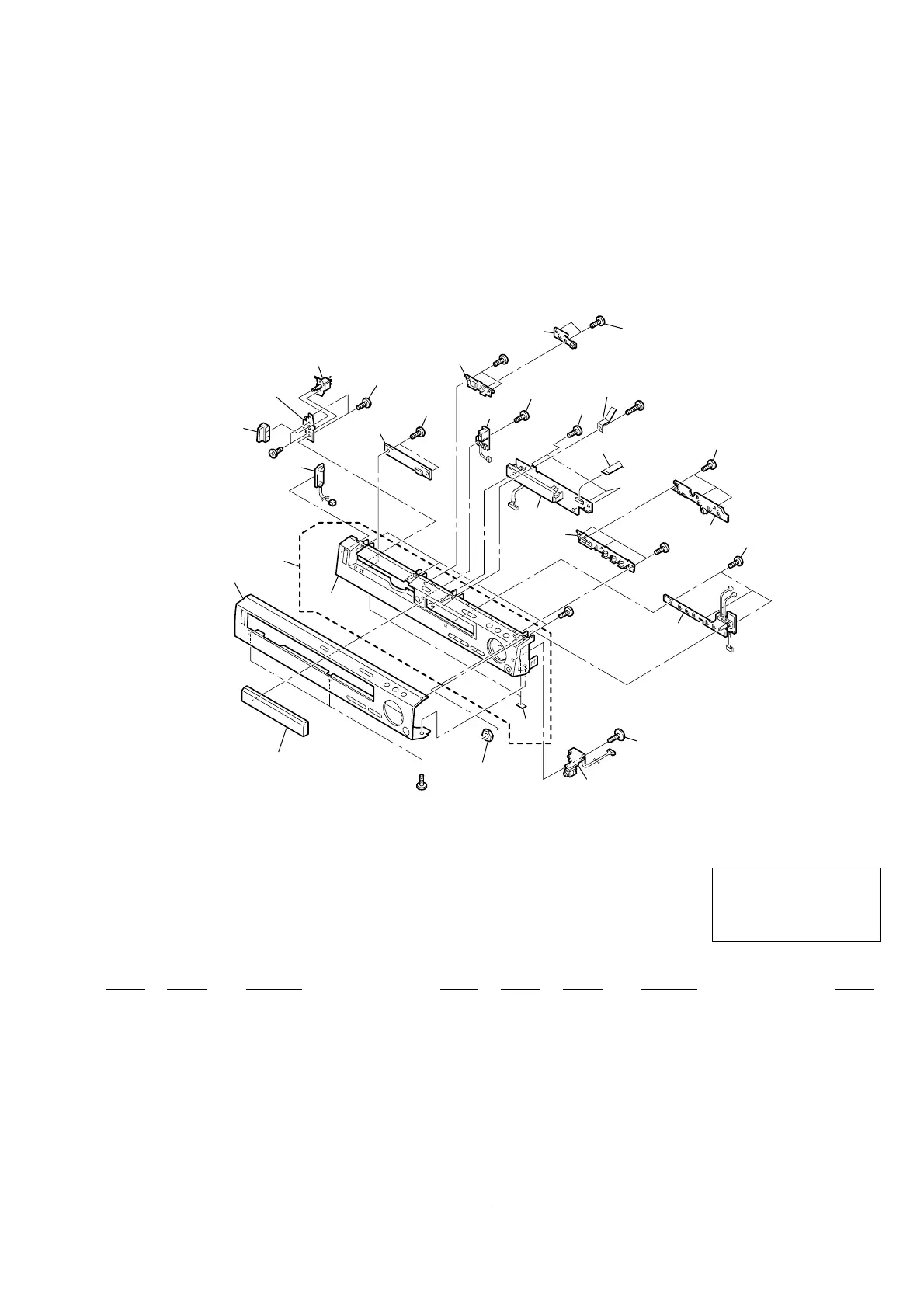

7-2. FRONT PANEL SECTION
51
52
53
54
55
57
58
59
59
60
61
62
63
64
66
67
68
65
59
59
59
59
56
Supplied with
S800
not supplied
S901
not
supplied
#1
#1
#1
#1
#2
#1
59
69
51 3-229-336-01 SCREW, +BVWH TAPPING
52 1-681-996-22 HP-1030 BOARD
53 X-4954-631-1 FL WINDOW SUB ASSY
54 4-234-907-21 PANEL (AL), FRONT
55 X-4954-632-1 FRONT PANEL SUB ASSY
56 4-234-924-01 FOOT
57 1-681-994-22 PW-1030 BOARD
58 X-4953-855-1 BUTTON (POWER) ASSY
59 4-951-620-01 SCREW (2.6X8), +BVTP
60 1-681-990-22 DDCON-1030 BOARD
61 4-234-904-11 BUTTON (EJECT)
62 1-681-993-22 SW (B)-1030 BOARD
63 1-681-995-22 RR-1030 BOARD
64 A-4728-803-A FP-1030 BOARD, COMPLETE
65 1-823-076-11 CABLE, FLEXIBLE FLAT (15 CORE)
66 4-234-905-11 BUTTON (DVD)
67 1-681-992-22 SW (A)-1030 BOARD
68 1-681-991-22 FU-1030 BOARD
69 4-237-279-01 PLATE (FL), GROUND
0 S901 1-786-210-11 SWITCH, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
