Sony HCD-S400 - 7 Exploded Views; Main Section

56
HCD-S400
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

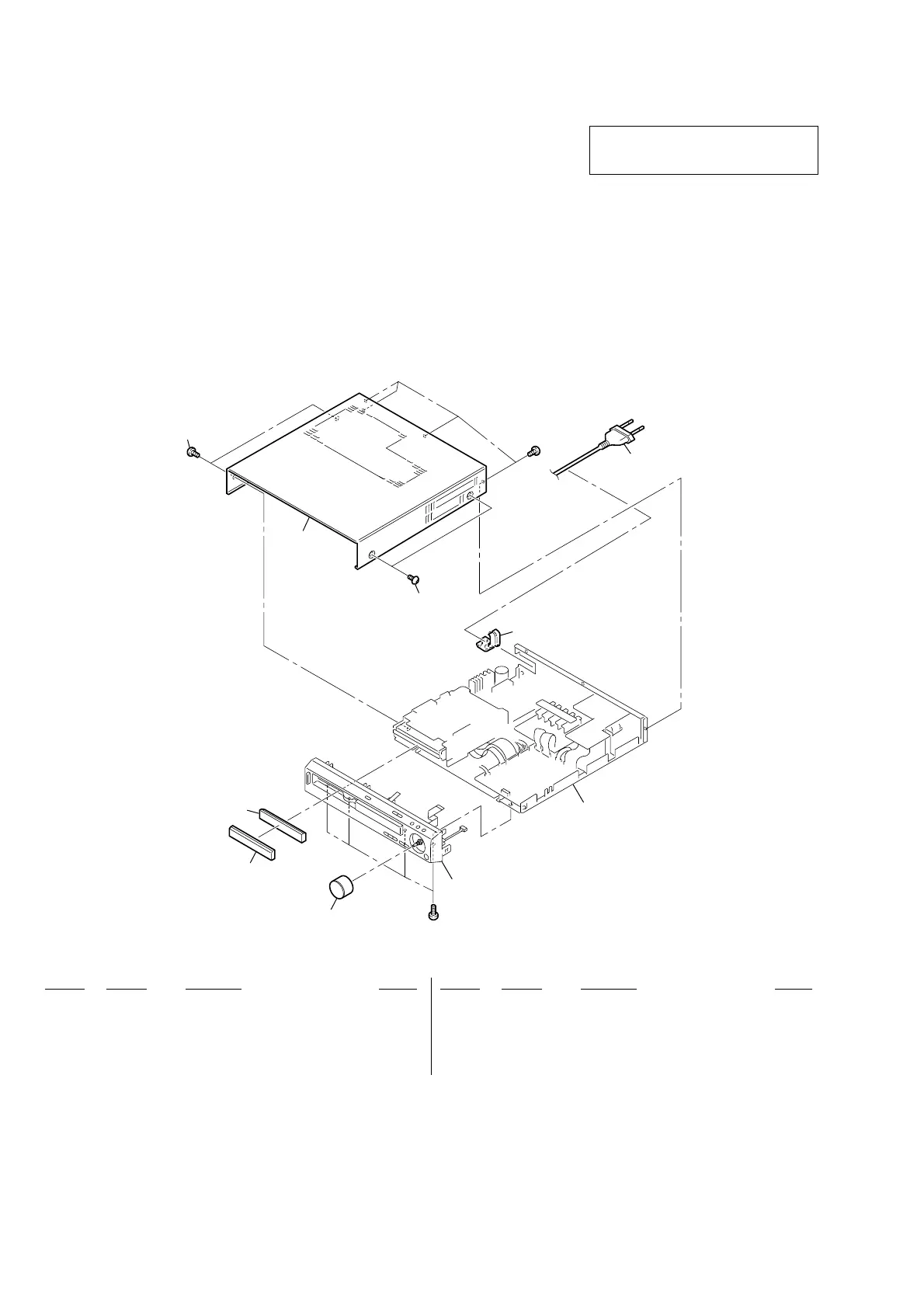

7-1. MAIN SECTION
1
2
3
4
5
6
7
4
#1
#1
Front panel section
Chassis section
NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
1 4-240-024-01 KNOB VOLUME
2 X-4954-633-1 WINDOW SUB ASSY (LID)
3 4-234-909-01 DVD, LID
4 4-221-580-01 SCREW, CASE
5 4-234-913-01 CASE
* 6 3-703-244-00 BUSHING (2104), CORD
0 7 1-769-744-11 CORD, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
