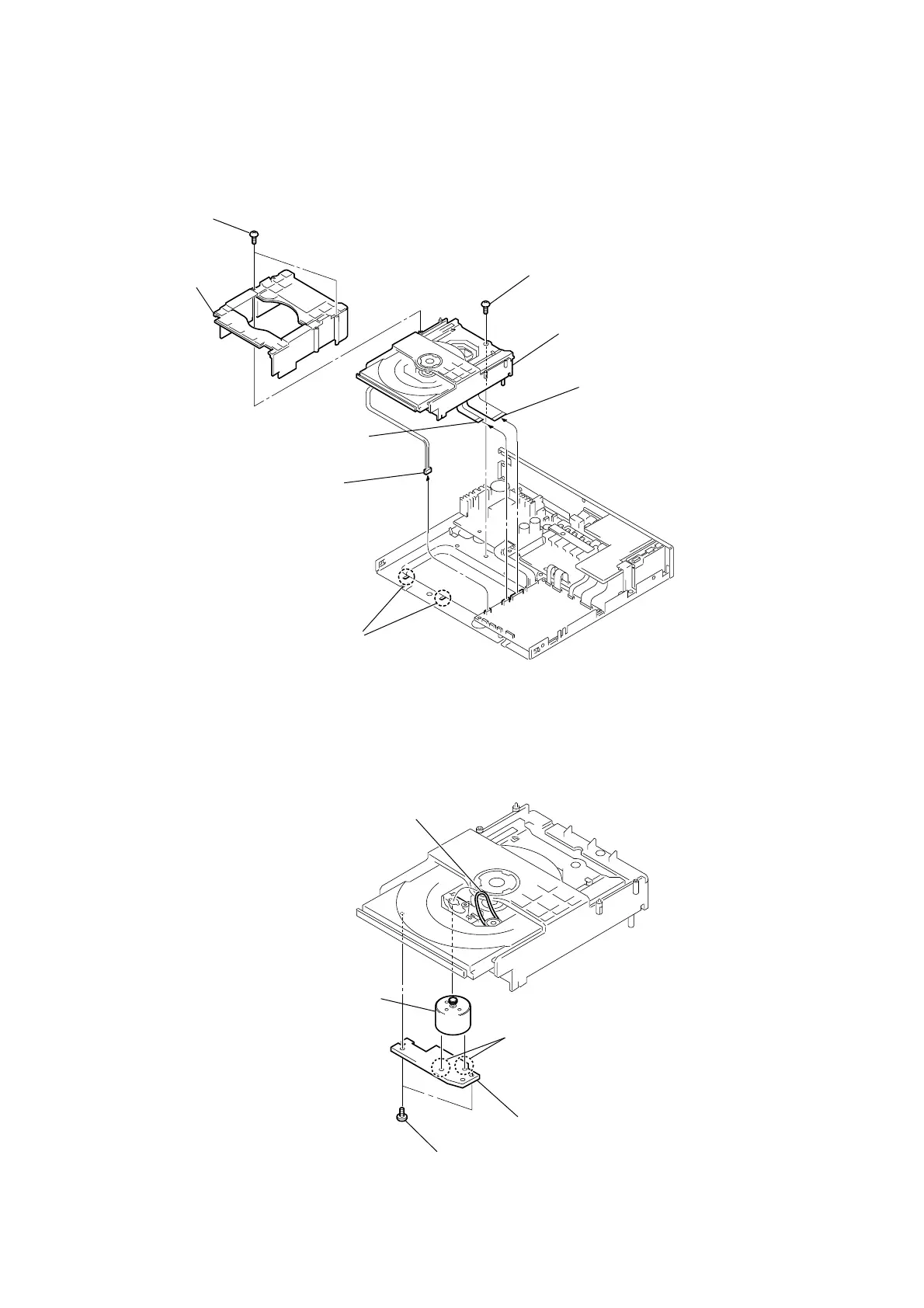

3-4. LOADING BOARD, MOTOR (LD) ASSY (M901)
3-3. DVD MECHANISM DECK (CDM55C-DVBU8)
3 Connector (CN402)
4 Flexible flat cable (9 core)
(CN009)
2 MD cover
5 Flexible flat cable (25 core
)
(CN010)
7 Two claws
1 Two screws
(DIA. 2.6
× 8)
6 Screw
(+BVTP 3
× 8)
8 Mechanism deck
(CDM55C-DVBU8)
2 Two screws
(+BTP 2.6
× 6)
5 Loading board
3 Two solderings
4 Motor (LD) assy (M901)
1 Remove the belt
(CDM55)
