Sony HCD-SD1 - Panel Section Printed Wiring Board

HCD-SD1
– 37 –
– 38 –

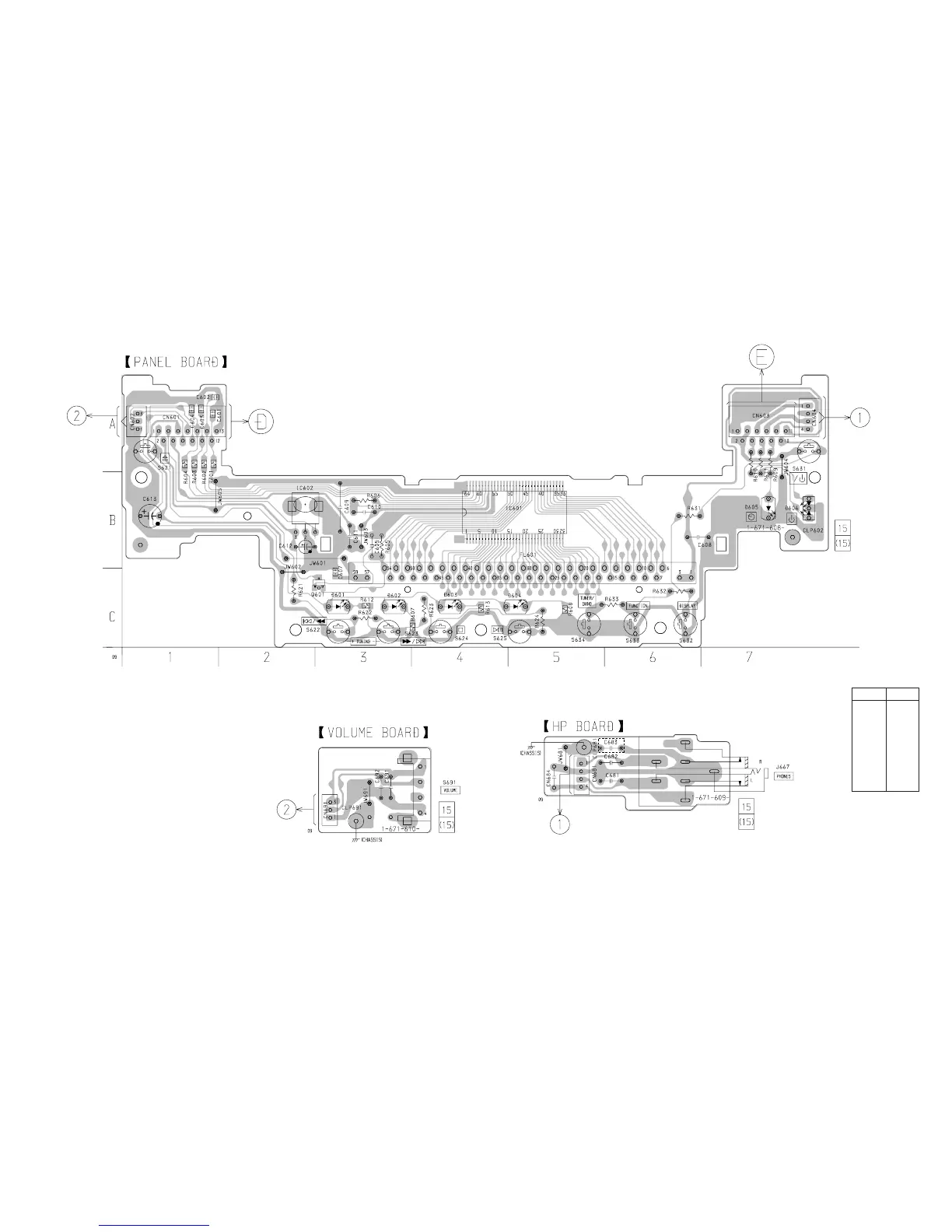

7-11. PRINTED WIRING BOARD – PANEL SECTION –
• See page 16 for Circuit Boards Location.
(Page 32)
(Page 32)
E
AEP, UK
D601 C-3
D602 C-3
D603 C-4
D604 C-5
D605 B-7
D606 B-7
IC601 B-5
IC602 B-2
Q601 C-3
• Semiconductor
Location
Ref. No. Location
