– 57 –

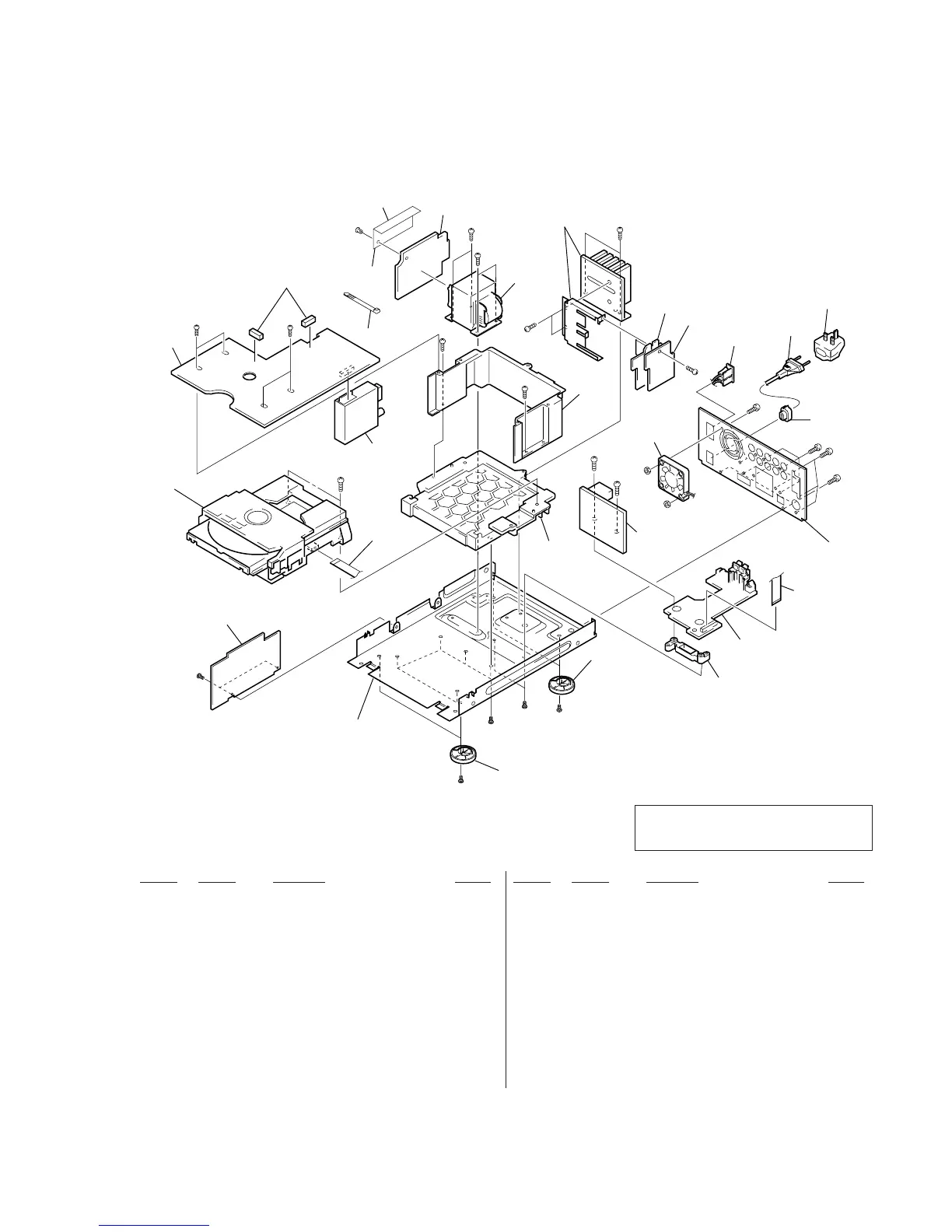

8-2. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 61 A-4419-065-A SUB-TRANS BOARD, COMPLETE
* 62 1-671-614-11 CONNECTOR BOARD
63 X-4950-994-1 FOOT ASSY
* 64 1-671-611-11 AMP BOARD
! 65 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK)
66 3-531-576-01 RIVET
67 3-655-653-01 BAND (TAITON), BINDING
! CN904 1-526-794-11 OUTLET, AC
M551 1-698-997-21 FAN, D.C.
! T991 1-433-478-11 TRANSFORMER, POWER
* 51 A-4419-059-A MAIN BOARD, COMPLETE (AEP,UK)
* 51 A-4419-070-A MAIN BOARD, COMPLETE (SP,HK)
* 52 A-4419-068-A REG BOARD, COMPLETE
53 1-790-305-11 WIRE (FLAT TYPE) (19 CORE)
54 1-693-408-11 TUNER
* 55 1-671-615-11 TRANS BOARD
* 56 A-4419-064-A CHEMI-CON BOARD, COMPLETE
! 57 1-575-651-91 CORD, POWER
* 58 3-703-244-00 BUSHING (2104), CORD
* 59 4-212-564-11 PANEL (CD), BACK
60 1-773-108-11 WIRE (FLAT TYPE) (19 CORE)(100mm)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
63
51
52
53
54
55
66
67
56
57
58
59
60
61
62
T991
M551
CN904
63
not supplied
not supplied
not supplied
not supplied
CDM13B-5BD19
not supplied
not
supplied
not
supplied
#2
#1
#2
#2
#2
#2
#2
#5
#2
#1
#1
#2
#1
#1
#2
#4
#4
#2
#1
#1
#2
#2
#2
64
65
(UK,HK
To Next Page
