Sony HCD-VX5A - 7-11. Printed Wiring Board - VIDEO Board

HCD-VX5A/VX5AJ/VX7A
– 41 –
– 42 –

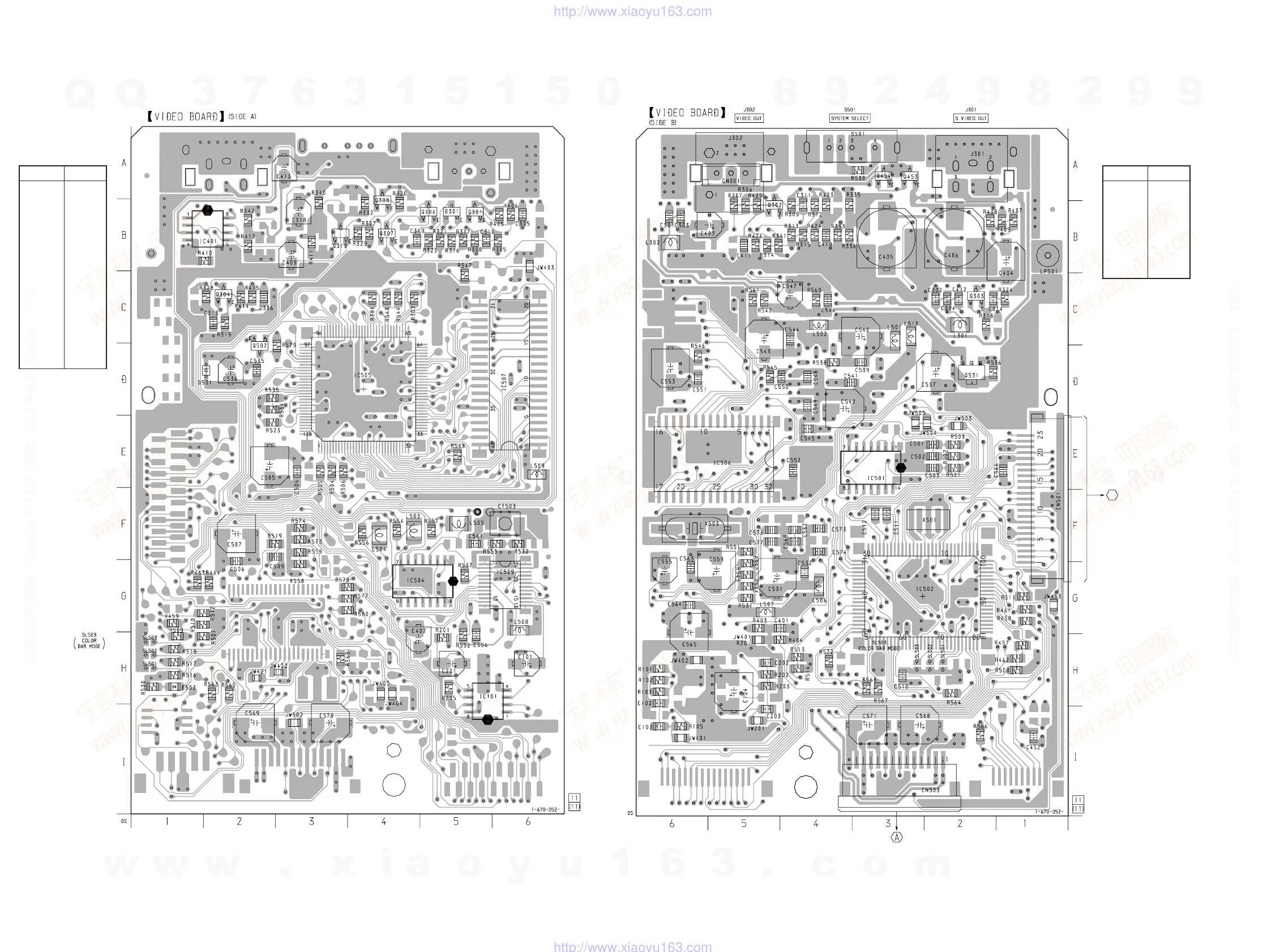

7-11. PRINTED WIRING BOARD – VIDEO BOARD – • See page 32 for Circuit Boards Location.
• Semiconductor
Location
(Side A)
Ref. No. Location
D301 B-5
D501 D-2
D502 H-1
IC101 H-5
IC401 B-2
IC504 G-4
IC505 D-4
IC507 D-6
IC509 G-6
Q301 B-5
Q304 C-2
Q306 B-5
Q307 B-4
Q308 B-4
Q310 B-3
Q502 D-2
• Semiconductor
Location
(Side B)
Ref. No. Location
IC501 E-3
IC502 G-3
IC506 E-5
Q302 B-5
Q303 C-2
Q453 A-3
Q454 A-3
Q531 D-2
TP508
(27MHz)
J
(Page 34)
(Page 55)
