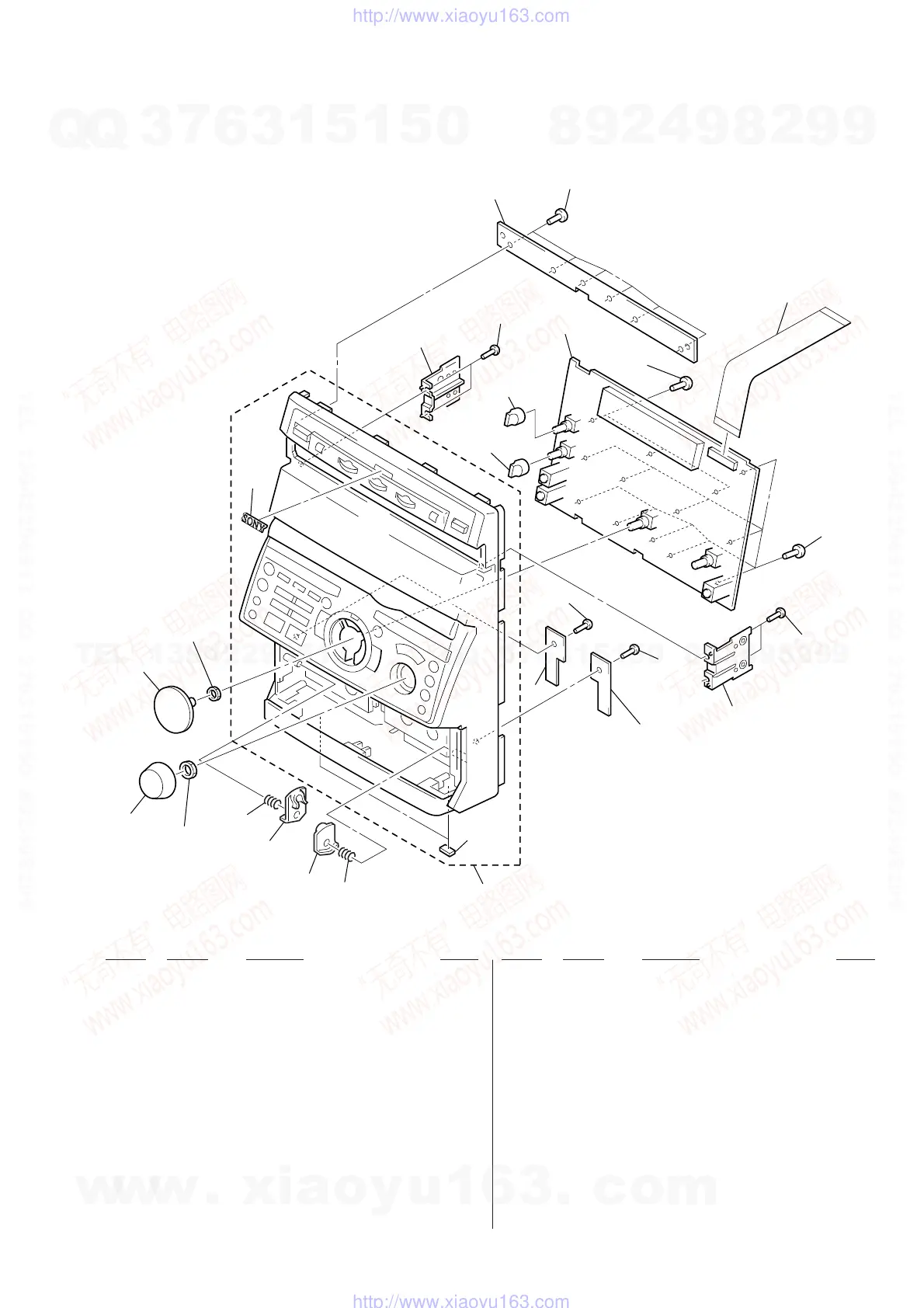

(2) FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-4951-029-1 PANEL ASSY, FRONT (VX7A) (SILVER)
51 X-4951-030-1 PANEL ASSY, FRONT (VX5A/VX5AJ) (SILVER)
51 X-4951-454-1 PANEL ASSY, FRONT (VX5A/VX5AJ) (GRAY)
51 X-4951-455-1 PANEL ASSY, FRONT (VX7A) (GRAY)
52 4-930-336-61 FOOT (FELT)
53 4-962-708-71 EMBLEM (4-A), SONY
54 4-214-775-11 SPRING, PUSH CATCHER RETURN
55 4-214-761-11 CATCHER (B), PUSH
56 4-214-760-11 CATCHER (A), PUSH
57 4-214-384-11 KNOB (VOL) (SILVER)
57 4-214-384-51 KNOB (VOL) (GRAY)
58 4-214-383-11 KNOB (JOG) (SILVER)
58 4-214-383-51 KNOB (JOG) (GRAY)
* 59 4-996-716-01 HOLDER (CDM)
60 4-951-620-01 SCREW (2.6X8), +BVTP
61 4-214-385-11 KNOB (MIC) (SILVER)
61 4-214-385-51 KNOB (MIC) (GRAY)
62 A-4419-160-A PANEL BOARD, COMPLETE
(VX7A: E, EA, MY, SP)
62 A-4419-152-A PANEL BOARD, COMPLETE
(VX7A: E, EA, MY, SP, HK, TW)
62 A-4426-093-A PANEL BOARD, COMPLETE (VX5AJ)
62 A-4426-139-A PANEL BOARD, COMPLETE (VX5A: IA)
62 A-4426-147-A PANEL BOARD, COMPLETE (VX7A: IA)
62 A-4426-156-A PANEL BOARD, COMPLETE (VX5A: TH)
62 A-4426-164-A PANEL BOARD, COMPLETE (VX7A: TH)
63 A-4419-984-A CD SW BOARD, COMPLETE
64 1-773-188-11 WIRE (FLAT TYPE) (23 CORE) (23cm)
65 1-674-232-11 PWB, PUSH CATCH STOP
51
54
54
55
56
52
57
58
53
59
60
60
60
60
60
65
65
60
59
61
61
62
63
60
64
