Sony HCD-W55 - TC Mechanism Section - 1

– 40 –
101 3-908-560-01 SPRING, AZIMUTH ADJUSTMENT
102 3-919-684-01 SCREW, AZIMUTH ADJUSTMENT
* 103 X-3367-584-2 SLIDER (HEAD) ASSY
104 3-908-556-01 SPRING, HEAD TOGGLE
105 3-908-558-02 FITTING BLOCK, HEAD
106 3-908-557-02 ROTARY BLOCK, HEAD
* 107 3-908-559-01 STOPPER, AZIMUTH
108 3-908-555-01 SLIDER (REV SLIDER)
109 3-917-143-11 SPRING, TENSION
110 3-388-848-01 SCREW (P2X6) (B TIGHT)
111 3-911-113-01 SPRING, TENSION
112 X-3369-909-1 PINCH LEVER (REV) ASSY
113 X-3369-908-1 PINCH LEVER (FWD) ASSY
114 3-908-613-01 GEAR (S), REEL
115 3-917-141-01 SPRING, COMPRESSION
116 X-3371-305-1 REEL (T) ASSY
117 3-669-465-01 WASHER (1.5), STOPPER
118 X-3370-173-1 TU ASSY
* 119 4-980-439-01 FULCRUM, HOLDER
120 3-911-116-21 RIVET, PUSH
121 3-917-142-01 SPRING, COMPRESSION
* 122 A-2007-131-A AUDIO BOARD, COMPLETE
123 3-930-972-01 DETENT, HALF
124 3-354-963-01 DAMPER
HP101 1-500-093-11 HEAD, MAGNETIC (PLAYBACK)
HRPE1011-500-094-11 HEAD, MAGNETIC (REC/PB/ERASE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
––––––– ––––––– –––––––––– ––––––– ––––––– ––––––– –––––––––– ––––––

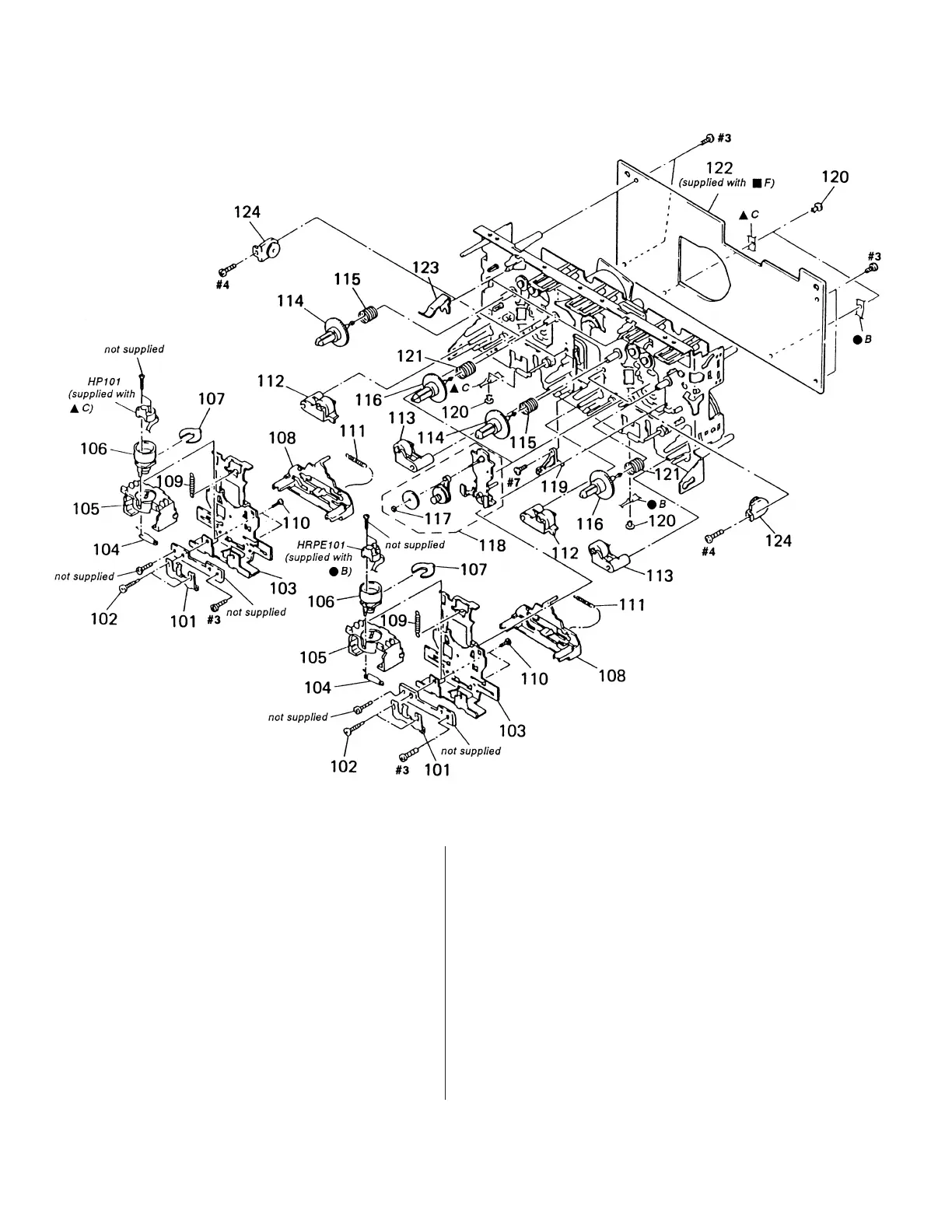

6-3. TC MECHANISM SECTION - 1
(TCM-220WR2)
