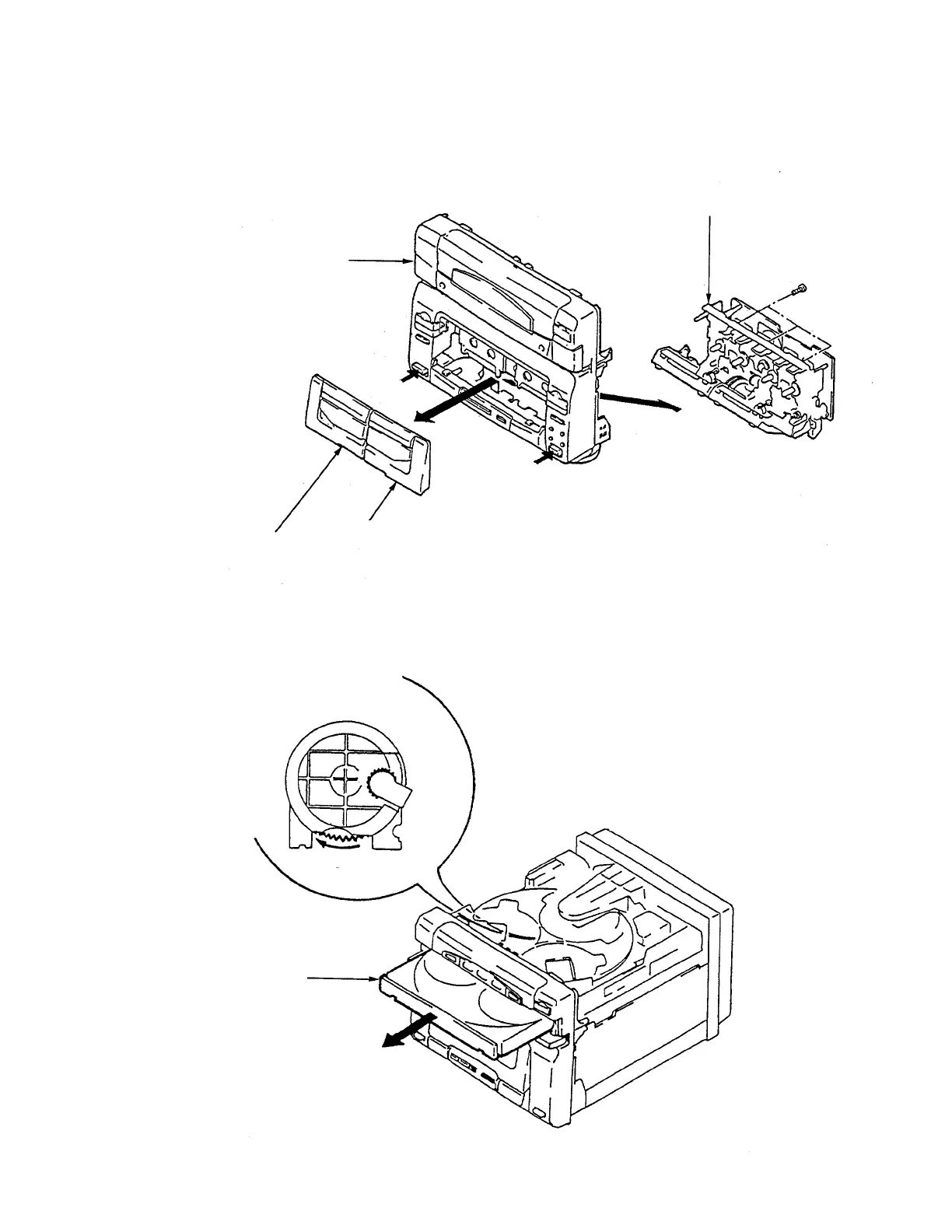

2-3. CASSETTE LID (A) / (B) ASSY, MECHANISM DECK REMOVAL
r
Tray (Slide) getting out procedure on the power supply is OFF
Rotate the BU CAM assembly in the direction of the arrow and pull out the slide.
3 Screws
+BVTP 3X 8
4
1
Cassette lid (B) assy
Cassette lid (A) assy
Mechanism Deck (TCM-220WR2)
1
2
1
BU CAM assy
Tray (Slide)
Front panel assy
2
1 Press the EJECT button and open the cassette lid.
