– 43 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
––––––– ––––––– –––––––––– ––––––– ––––––– ––––––– –––––––––– ––––––
251 4-917-583-21 BRACKET, YOKE
252 4-977-954-01 PULLEY (SL)
253 4-977-953-01 GEAR (SL-A)
254 4-977-955-01 GEAR (SL-B)
255 4-977-942-01 BELT (SL) (1.4)
256 X-4946-491-1 CAM ASSY, BU
257 1-452-824-11 MAGNET
258 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)
* 259 1-660-021-11 CONNECTOR BOARD

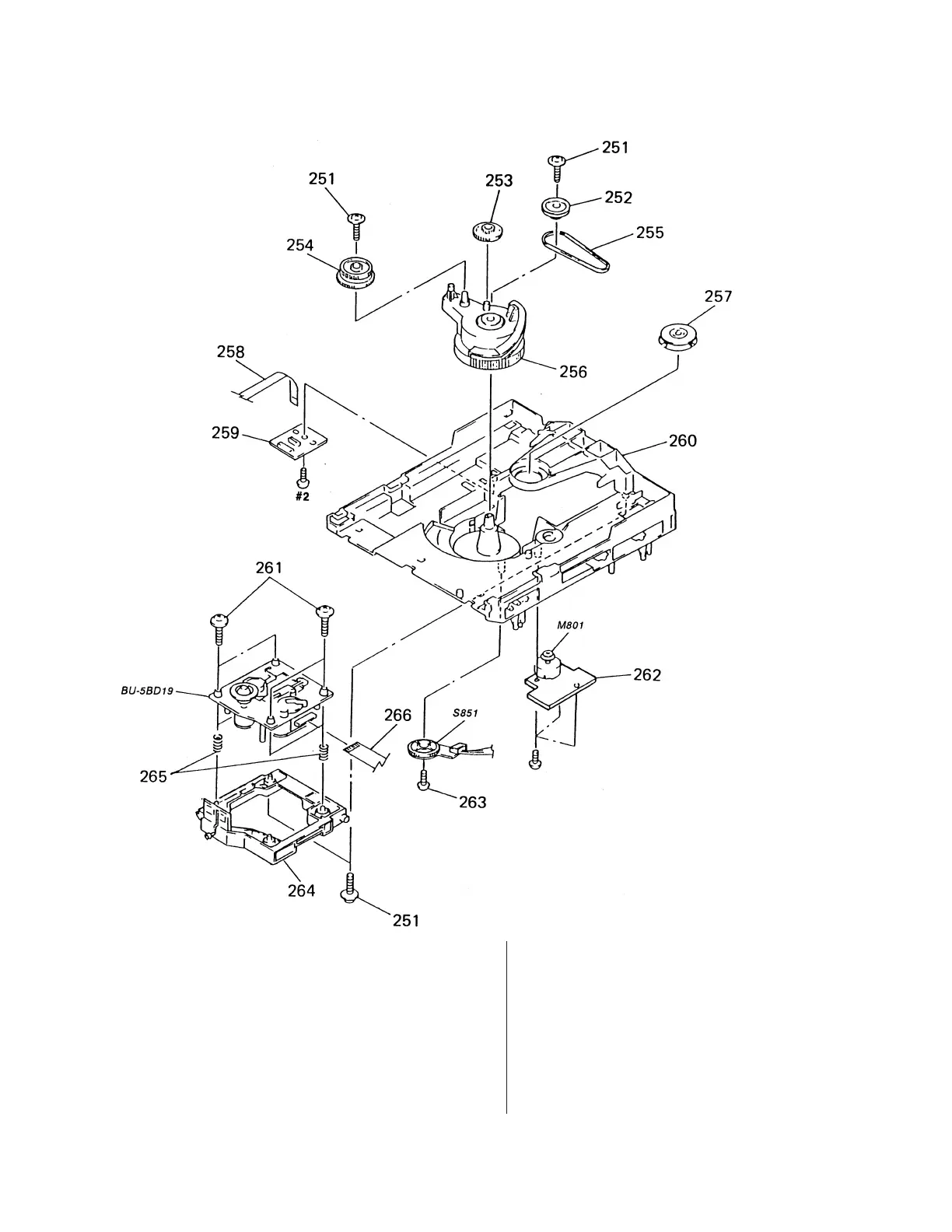

6-6. CHASSIS SECTION
(CDM38-5BD19)
* 260 X-4946-498-1 CHASSIS (CDM) ASSY
261 4-933-134-01 SCREW (+PTPWH M2.6X6)
* 262 1-660-023-11 MOTOR (SLIDE) BOARD
263 4-951-620-41 SCREW (2.6), +BVTP
264 X-4946-296-1 HOLDER (BU) ASSY
265 4-982-447-01 SPRING (BU), COMPRESSION
266 1-776-222-11 WIRE (FLAT TYPE) (19 CORE)
M801 A-4660-586-A MOTOR ASSY (SLIDE MOTOR)
S851 1-473-335-11 ENCODER, ROTARY
