Sony HCD-XGR66 - CHASSIS SECTION

57
HCD-XGR66/XGR600

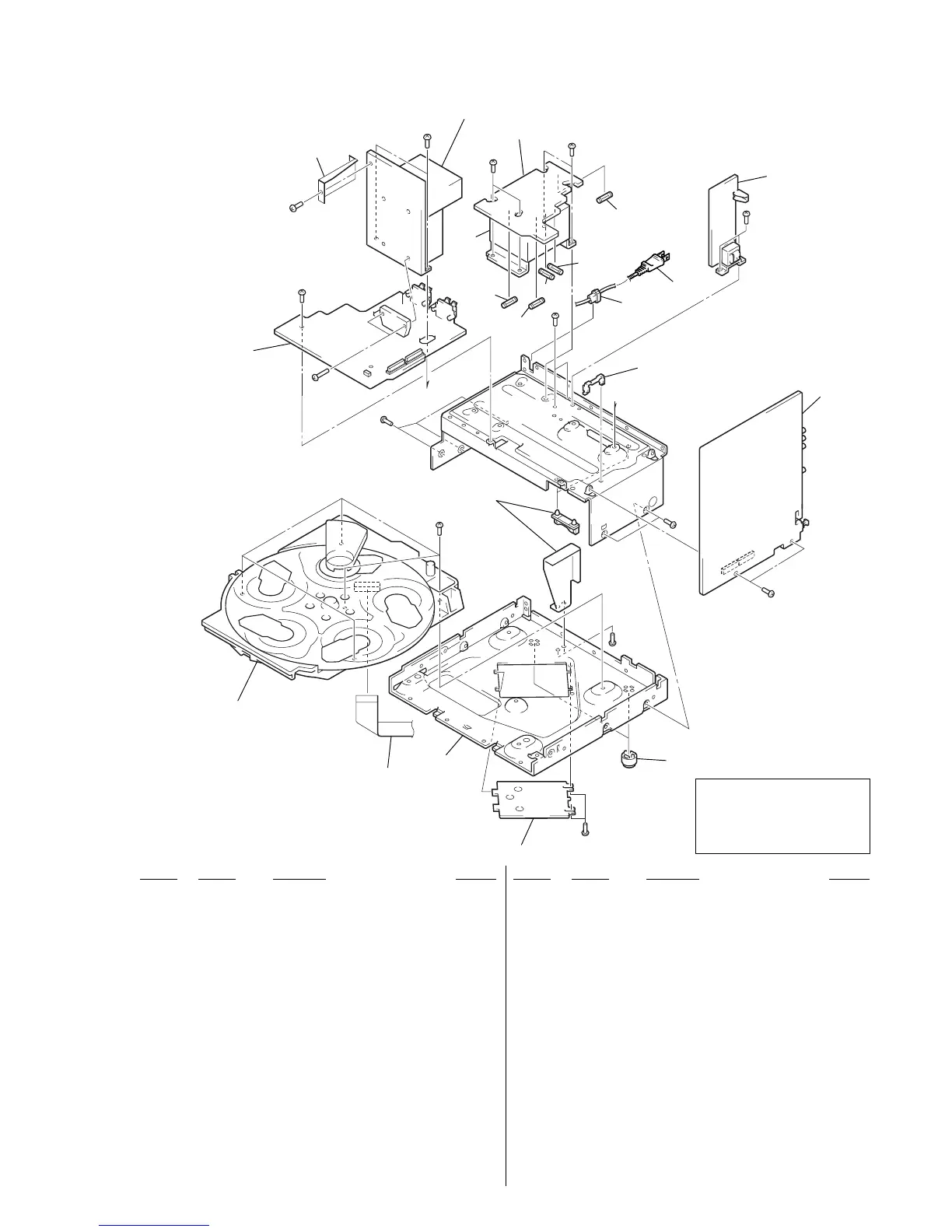

7-4. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
F961
F962
F964
F963
154
153
159
155
156
158
160
151
161
#2
#4
#1
#2
not supplied
not supplied
not supplied
not supplied
not supplied
CDM37B-30BD60C
#5
#1
#1
#1
#1
#1
#1
#1
#1
#5
F951
T951
b
b
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
151 1-823-750-11 WIRE (FLAT TYPE) (21 CORE)
153 A-4732-025-A PA BOARD COMPLETE (XGR66)
153 A-4732-046-A PA BOARD COMPLETE (XGR600)
154 1-687-270-11 TRANS BOARD
* 155 3-703-244-00 BUSHING (2104), CORD(XGR600,XGR66:E51)
155 3-703-571-11 BUSHING (S) (4516), CORD (XGR66:E2)
0 156 1-783-531-11 CORD, POWER (XGR600)
0 156 1-823-767-12 CORD, POWER (XGR66:E51)
0 156 1-823-824-12 CORD, POWER (XGR66:E2)
158 1-687-271-11 SUB TRANS BOARD
* 159 4-988-533-01 HOLDER, PWB
160 A-4732-017-A MAIN BOARD COMPLETE (XGR66)
160 A-4732-050-A MAIN BOARD COMPLETE (XGR600)
161 X-4941-228-1 FOOT (F22125H-M)
0 F951 1-532-506-31 FUSE (T6,3AL 250V) (XGR66)
0 F961 1-533-310-11 FUSE GLASS CYLINDRICAL (6.3A 125V)
(XGR600)
0 F961 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG)
(T8.0AL 250V)(XGR66)
0 F962 1-533-310-11 FUSE GLASS CYLINDRICAL (6.3A 125V)
(XGR600)
0 F962 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG)
(T8.0AL 250V)(XGR66)
0 F963 1-532-506-31 FUSE (T6,3AL 250V) (XGR66)
0 F963 1-533-310-11 FUSE GLASS CYLINDRICAL (6.3A 125V)
(XGR600)
0 F964 1-532-506-31 FUSE (T6,3AL 250V) (XGR66)
0 F964 1-533-310-11 FUSE GLASS CYLINDRICAL (6.3A 125V)
(XGR600)
0 T951 1-439-702-11 TRANSFORMER, POWER (XGR600)
0 T951 1-439-704-11 TRANSFORMER, POWER (XGR66)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-872-09 SCREW +BVTT 3X8 (S)
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#5 7-685-881-09 SCREW +BVTT 4X8 (S)
