Sony HCD-XGR90AV - Page 9

9
HCD-XGR90AV

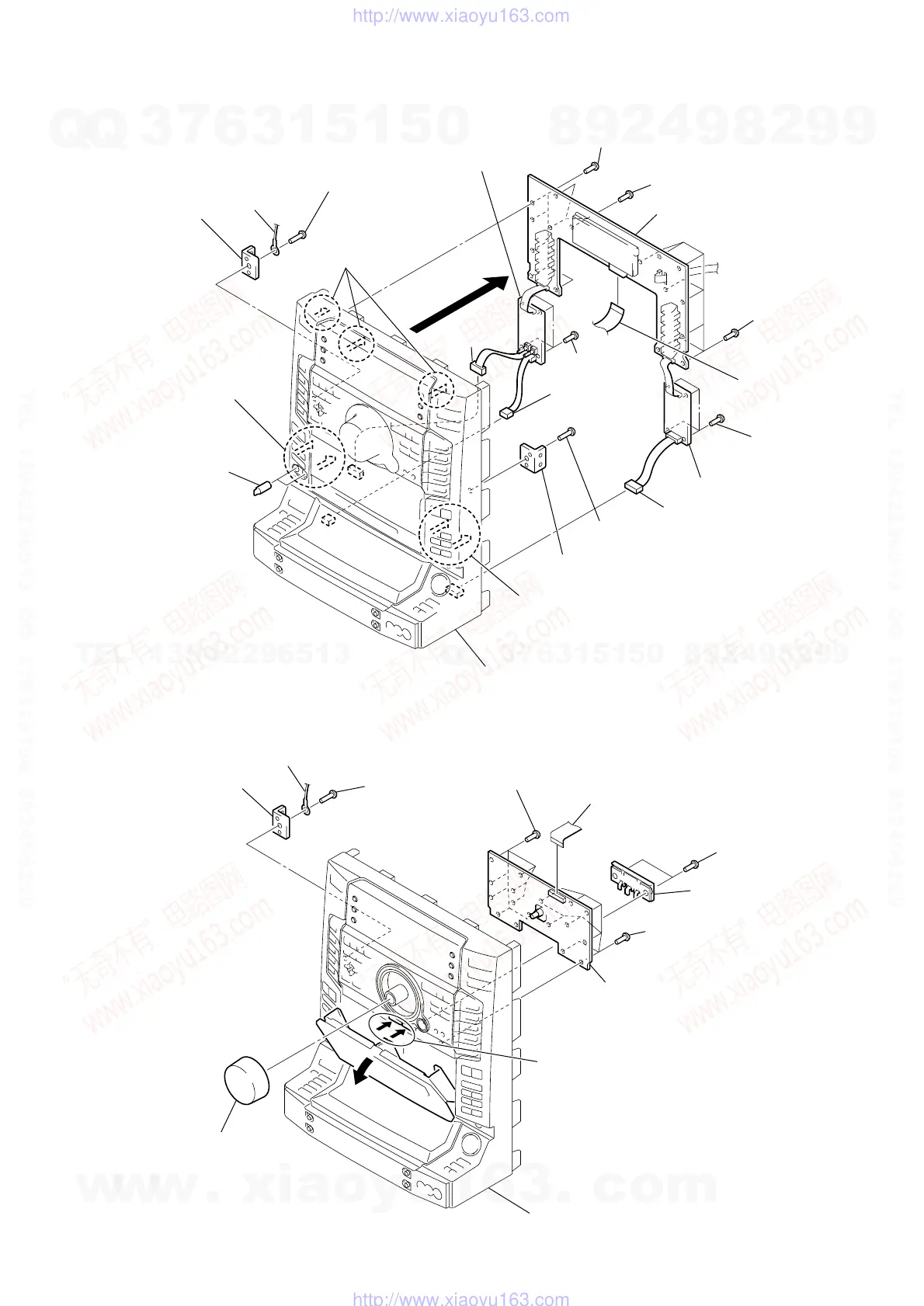

3-4. PANEL FL BOARD, TC-A BOARD, TC-B BOARD
3-5. PANEL VR BOARD
2 Lug
1 Screw (BVTP 2.6 X 8)
qa Five screws (BVTP 2.6 X 8)
qs Three screws
(BVTP 2.6 X 8)
qk PANEL FL board
w; TC-A board
qd Eight screws
(BVTP 2.6 X 8)
qg Four screws
(BVTP 2.6 X 8)
8 Connector (CN703)
6 Connector
(CN812)
7 Connector
(CN704)
ws TC-B board
0 Two knobs (MIC)
ql Two claws
4 Screw
(BVTP 2.6 X 8)
qf Four screws
(BVTP 2.6 X 8)
5 Bracket (TA)
qh Three claws
3 Bracket (TA)
qj
9 Flat type wire
(CN601)
wa Two claws
Front panel
1 Screws
(BVTP 2.6 X 8)
2 Lug
4 Knob (VOLUME)
3 Bracket (TA)
7
6 Preess the two buttons (EJECT)
Front panel
qs PANEL VR board
qa Nine screws
(BVTP 2.6 X 8)
0 Eight screws
(BVTP 2.6 X 8)
5 Flat type wire
(CN701)
9 Lever (EJECT) ass
y
8 Two screws
(BVTP 2.6 X 8)
