Sony HDC1550 - Page 14

1-6
HDC1000/V2 (J, E)
PWH
3 x 5
PWH3 x 5
PWH
3 x 5
BTP
2.6 x 6
K3 x 6
PWH
3 x 5
220
204
202
218
207
214
216
216
213
219
209
209
210
210
215
205
208
208
216
203
201
220
220
220
220
212
211
221
206
217
219
A
A
B
C
D
E
B
C
D
E

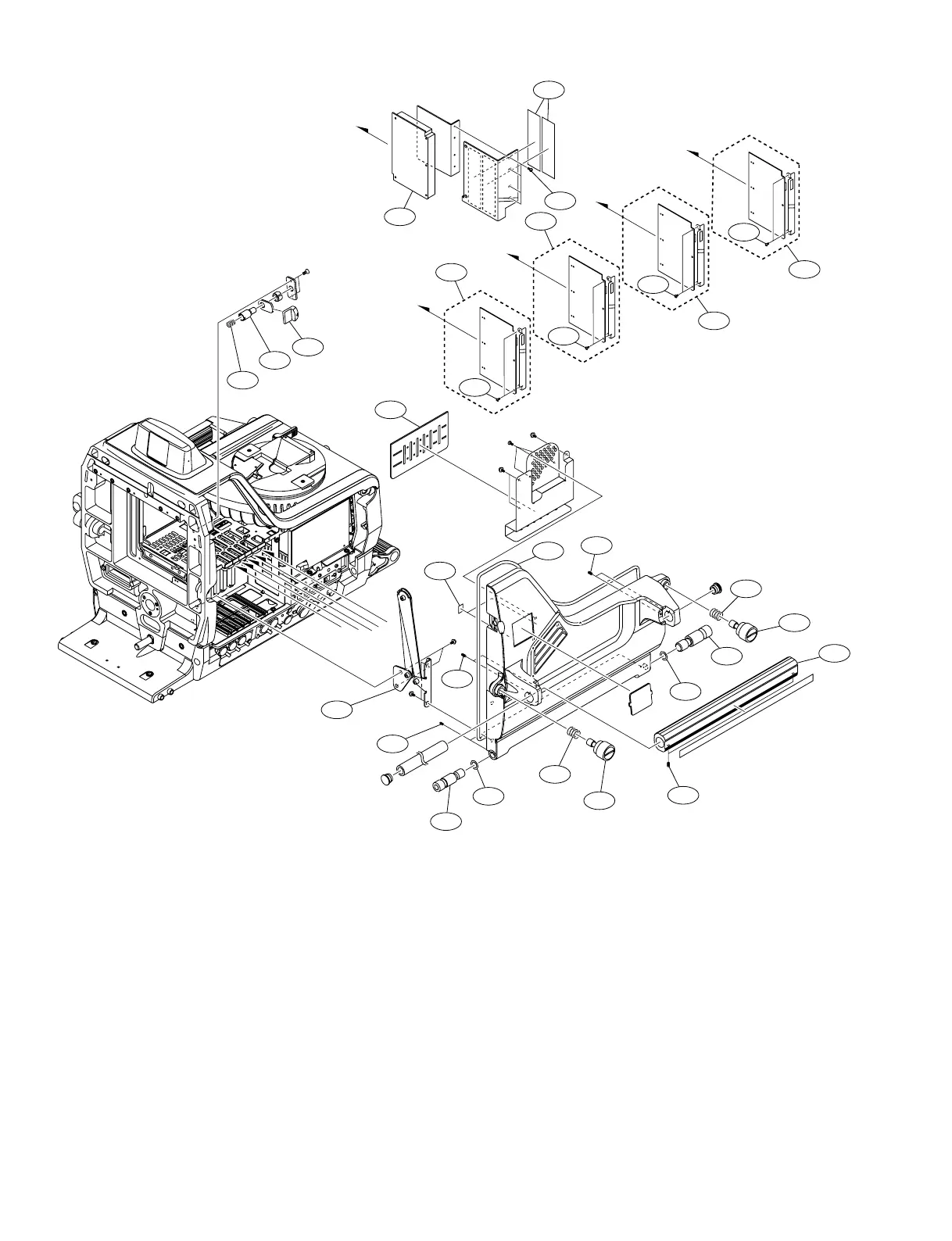

Right Side Panel and Boards (HDC1000/1100)
No. Part No. SP Description
201 ! A-1101-923-A s MOUNTED CIRCUIT BOARD, VDA-63
202 ! A-1101-924-A s MOUNTED CIRCUIT BOARD, AU-298
203 ! A-1101-925-A s MOUNTED CIRCUIT BOARD, DAP-33
204 ! A-1101-926-A s MOUNTED CIRCUIT BOARD, AT-163
205 X-3692-313-3 o STAY (RIGHT) ASSY
206 ! 1-478-790-11 s CONVERTER UNIT, DC-DC
207 3-185-871-02 s TAPE, DROP PROTECTION SHIELD
208 3-185-878-01 s WASHER (PA)
209 3-185-887-01 o SCREW, KNOB
210 3-185-890-01 s BOLT, SHOULDER (SUS)
211 3-185-905-02 o SOLENOID
212 3-605-906-01 o CAP,LATCH (WHITE)
3-605-906-11 s CAP,LATCH (BLACK)
213 3-612-402-02 o HANDLE COVER(C) (WHITE)
No. Part No. SP Description
214 3-615-750-62 s SHIELD CUSHION(C)
215 3-701-505-00 s SET-SCREW,HEX 3X3 ST
216 3-701-510-00 s SET-SCREW,HEXGON 4X4 (WP) ST
217 3-872-620-01 s THERMATTACH TAPE(DD)
218 3-872-695-01 s BOARD CUSHION
219 4-367-209-00 s SPRING,COMPRESSION
220 4-654-273-02 s ACE (M2), LOCK
221 4-926-395-01 s SPRING,COMPRESSION(COIL) (ST)
7-682-247-04 s SCREW +K 3X6
7-682-903-01 s SCREW +PWH 3X5
7-685-533-14 s SCREW +BTP2.6X6
