Sony HDC1550 - Page 15

1-7
HDC1000/V2 (J, E)
BROWN
RED
ORANGE
YELLOW
GREEN
CN-2605
BOARD
W-2.6, NYLON
W-2.6,
NYLON
W-2.6,
NYLON
W-2.6,
NYLON
To MB-1060
(CN9)
To MB-1060
(CN4)
306
310
309
307
307
312
305
307
316
316
316
316
301
303
302
317
315
316
319
308
304
314
313
311
307
320
320
318
318

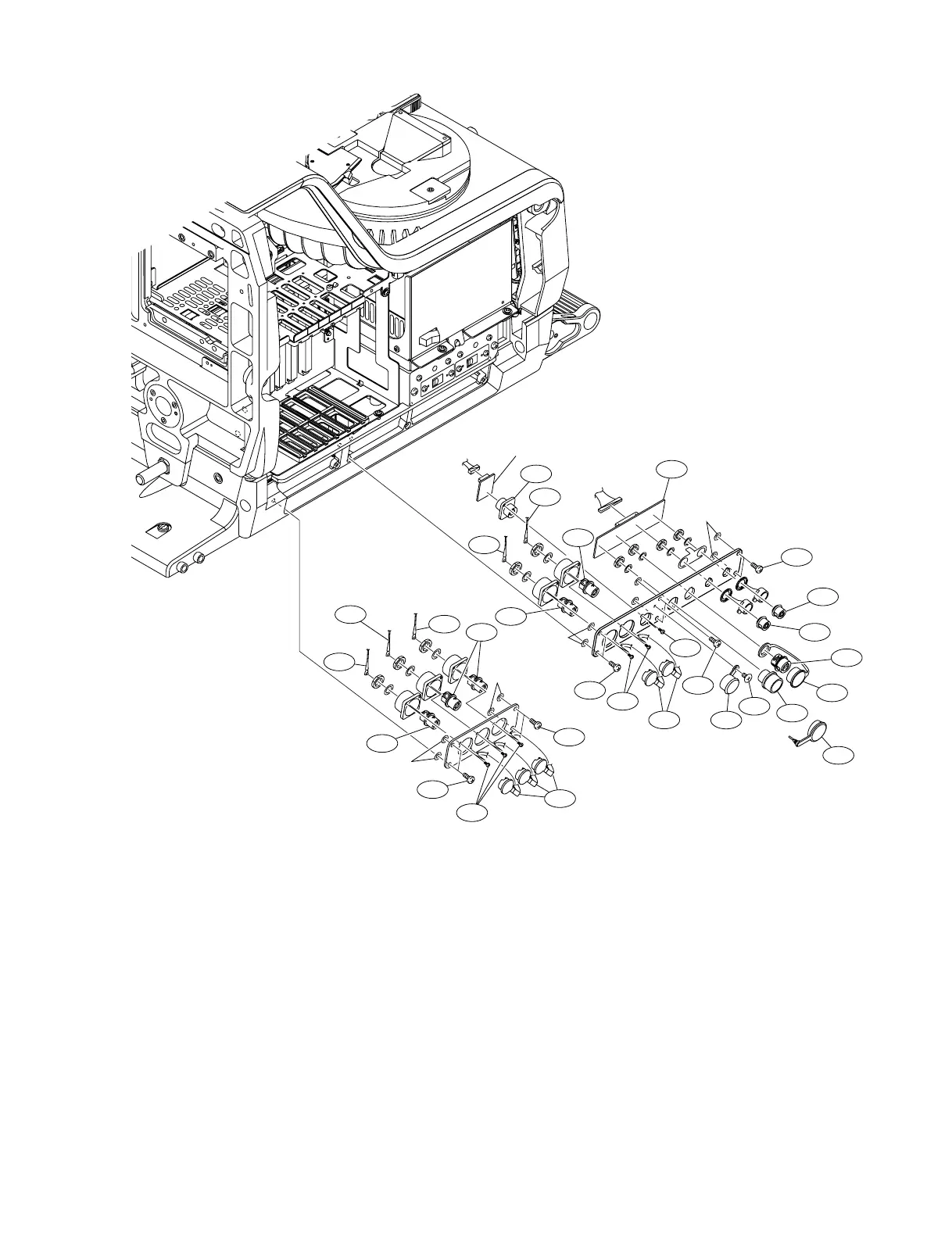

Connector Panel (HDC1000/1100)
No. Part No. SP Description
301 ! A-1124-076-A s MOUNTED CIRCUIT BOARD, CN-2604
302 1-562-222-21 s RECEPTACLE,CONNECTOR 6P
303 1-563-929-11 s CONNECTOR,ROUND TYPE (RF) 4P
304 1-565-443-11 o RECEPTACLE,CONNECTOR 10P
305 1-757-430-11 s CABLE ASSEMBLY, COAXIAL
306 1-766-696-11 o CONNECTOR, ROUND TYPE 8P
307 1-784-240-11 s CONVERTER, COAXIAL CONNECTOR
308 1-819-262-11 s CONNECTOR, ROUND TYPE 12P
309 1-830-738-11 s CABLE ASSEMBLY, COAXIAL
310 1-830-739-11 s CABLE ASSEMBLY, COAXIAL
311 1-830-740-11 s CABLE ASSEMBLY, COAXIAL
312 1-830-741-11 s CABLE ASSEMBLY, COAXIAL
No. Part No. SP Description
313 3-605-338-03 s CAP,CONNECTOR
314 3-678-769-00 s CAP
315 3-694-181-01 s AROCK PRECISION +P2.6X5 TYPE 1
316 3-719-159-01 s SCREW (M3), (+ BW) (STEEL)
317 3-868-657-02 s CAP,BNC
318 3-872-935-01 s CAP,BNC
319 3-965-077-01 s SCREW, SPECIAL (M2)
320 4-654-273-02 s ACE (M2), LOCK
7-623-923-01 s WASHER,POLYETHYLENE 2.6
