Sony HDCU2000 - Dual-Camera System Setup

22
Connections and Settings
Dual-Camera System
Two pairs of cameras and camera control units are connected
via an optical fiber cable for “High Bit Rate” transmission.
Notes
• The primary camera and the secondary camera must be in
genlock status.
• Do not connect any optical fiber cable to the secondary
system.

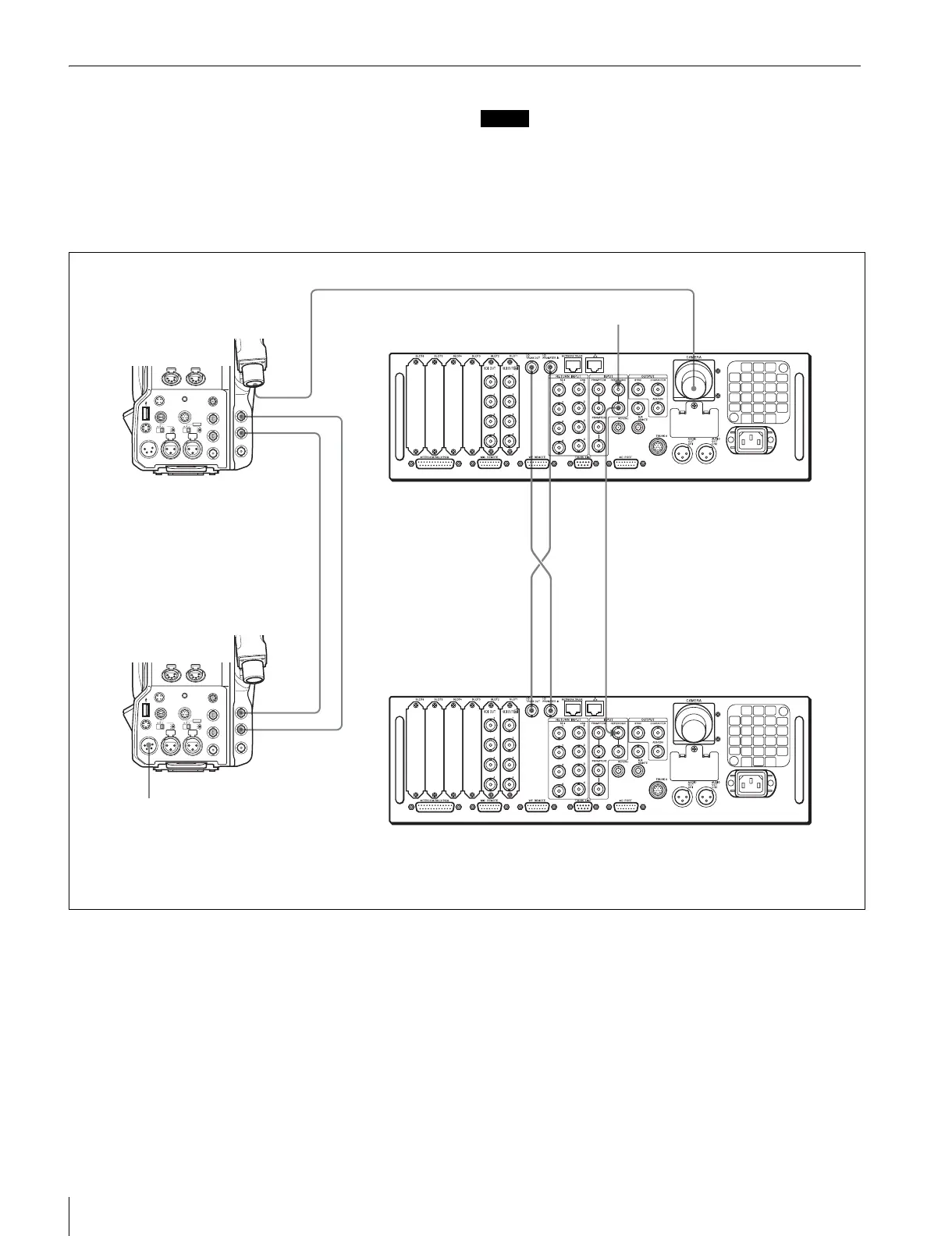

Connection example
Settings
Primary camera
MAINTENANCE menu, <SDI OUT> page:
Set SDI-1 OUT to HD PROMPTER.
Set SDI-2 OUT/IN to HD TRUNK/RET IN.
Secondary camera
MAINTENANCE menu, <SDI OUT> page:
Set COAX MODE to ON.
Set SDI-2 OUT/IN to HD TRUNK/RET IN.
Primary camera control unit
Format: Set it to a Single Link format.
CCU CONFIGURATION menu, <TRANSMIT> page: Set
CABLE to CAMERA CABLE.
Secondary camera control unit
Format: Set it to a Single Link format.
CCU CONFIGURATION menu, <TRANSMIT> page: Set
CABLE to COAX.
