Sony HDCU2000 - Menu Tree Structure; SYSTEM OPERATION Menu Structure; CCU CONFIGURATION Menu Structure

31
Setup Menu

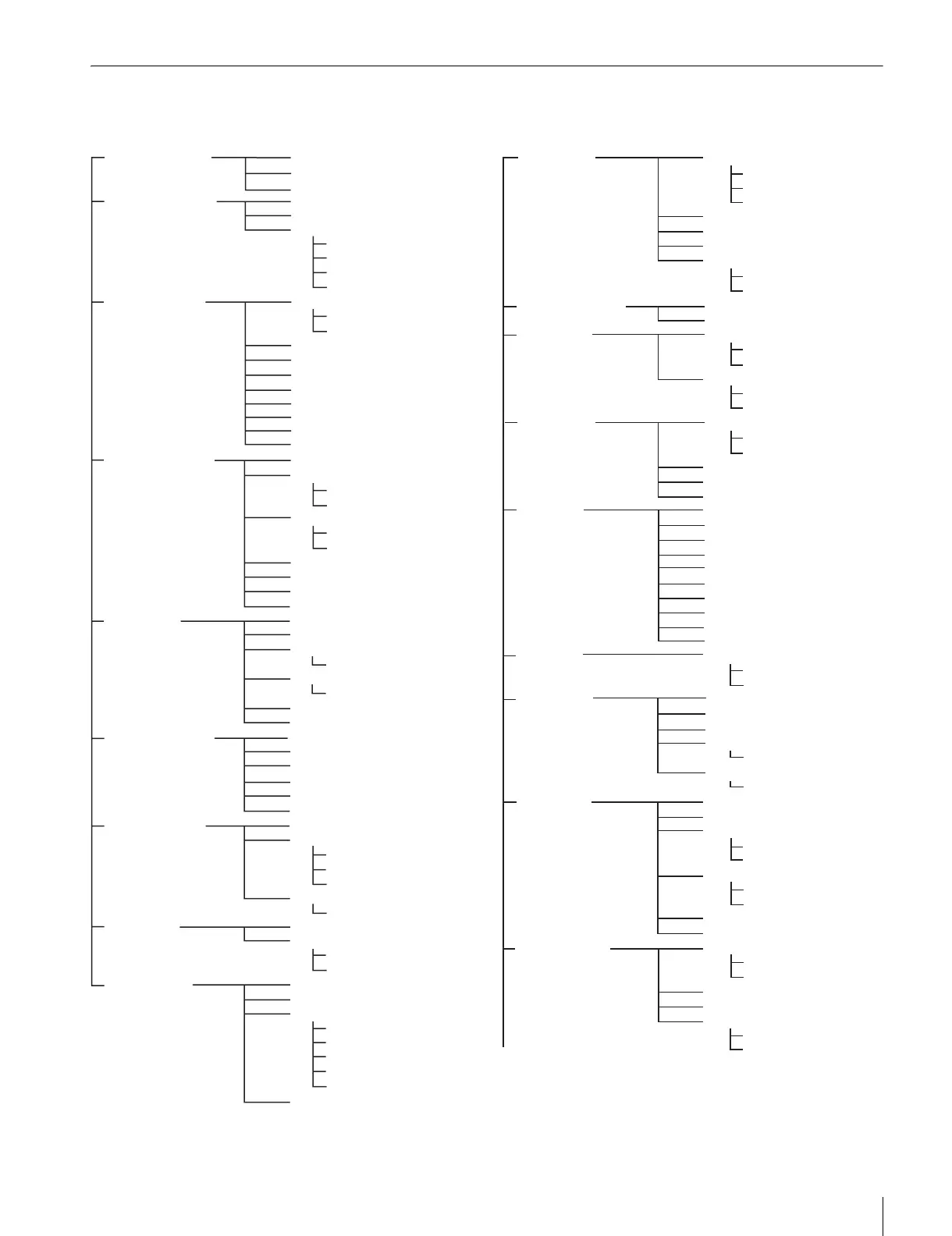

Menu Tree
SYSTEM OPERATION menu CCU CONFIGURATION menu
OUTPUT SELECT
(S01)
GENLOCK PHASE
(S02)
MULTI FORMAT
(S03)
OUTPUT FORMAT
(S04)
SD ASPECT
(S05)
RETURN FORMAT
(S06)
RETURN SETUP
(S07)
CCU VIDEO
(S08)
3D SETTINGS
(S09)
OUTPUT
PIX
WFM
CONTROL
GENLOCK
H STEP
COARSE
V PHASE
SUB-REF
FREQUENCY
HD
SD
CAMERA FORMAT
FRAME CONVERT DELAY
CCU VIDEO CONVERT
2x MODE
3G-SDI
HD-SD DELAY
COMPONENT
CAMERA TRANSMIT
SLOT1
1&2
3&4
SLOT2
1&2
3&4
SLOT3
SLOT4
SLOT5
SLOT6
SD ASPECT
SD LB SEL
H-POSITION
CENTER
V-POSITION
CENTER
H-INTERP
V-INTERP
RET1
RET2
RET3
RET4
AUTO SCAN
LI
NK TO MAIN
FRAME SYNCHRO
SD-RETURN
M
RETURN-TO-RETURN
MODE
ATRIX
LB LINE
ASPECT
VBS-CHROMA
MONO-COLOR
PHASE
SATURATION
3D MODE
3D OUTPUT
3D MONITOR
POSITION
MIX CHROMA
DIFF MODE
V SPLIT MODE
BORDER LINE
CHANNEL ID
BIT DEPTH
REFERENCE
HD-BAR
SEL
MF CB
MOVING SYMBOL
TYPE
SIZE
SLOPE
SD-BAR
BAR-CHARA
GRAY
BAR CHARACTER
ALL CLEAR
CHARACTER
WHITE-LEVEL
BLACK-LEVEL
PIX CHARACTER
WHITE-LEVEL
BLACK-LEVEL
LEVEL GATE
Y- L E VEL1
Y- L E VEL2
GATE-MARKER
MODULATION
MARKER
BOARD
SLOT1
SLOT2
SLOT3
SLOT4
SLOT5
SLOT6
DSUB-15
CHARA/SYNC
REAR PREVIEW
CAM MIC GAIN
CH1
CH2
DELAY
AES/EBU OUT
ANALOG OUT
CH1 LEVEL
CH2 LEVEL
INTERCOM CH
SYSTEM INTERFACE
PRODUCER
TERMINAT I ON
CANCEL LVL
ENGINEER
TERMINAT I ON
CANCEL LVL
PGM1 IN
PUT
PGM2 INPUT
INCOM MIC
MIC TYPE
MIC GAIN
SIDE TONE
PGM MIX
PGM SEL
PGM1 LVL
PGM2 LVL
COLOR BAR
(C01)
BAR CHARACTER
(C02)
MONITOR 1
(C03)
MONITOR 2
(C04)
I/F SETUP
(C05)
MIC GAIN
(C06)
INTERCOM
(C08)
FRONT INCOM
(C09)
AUDIO OUT
(C07)
ADJUST
ADJUST
