HS-MB1
3
SECTION 1
SERVICE NOTE
NOTE FOR REPAIRING THE HS-MB1
The HS-MB1 cannot be repaired singly since it has no power
supply.
It should be connected with the HS-AC1 when servicing/repair-
ing it.

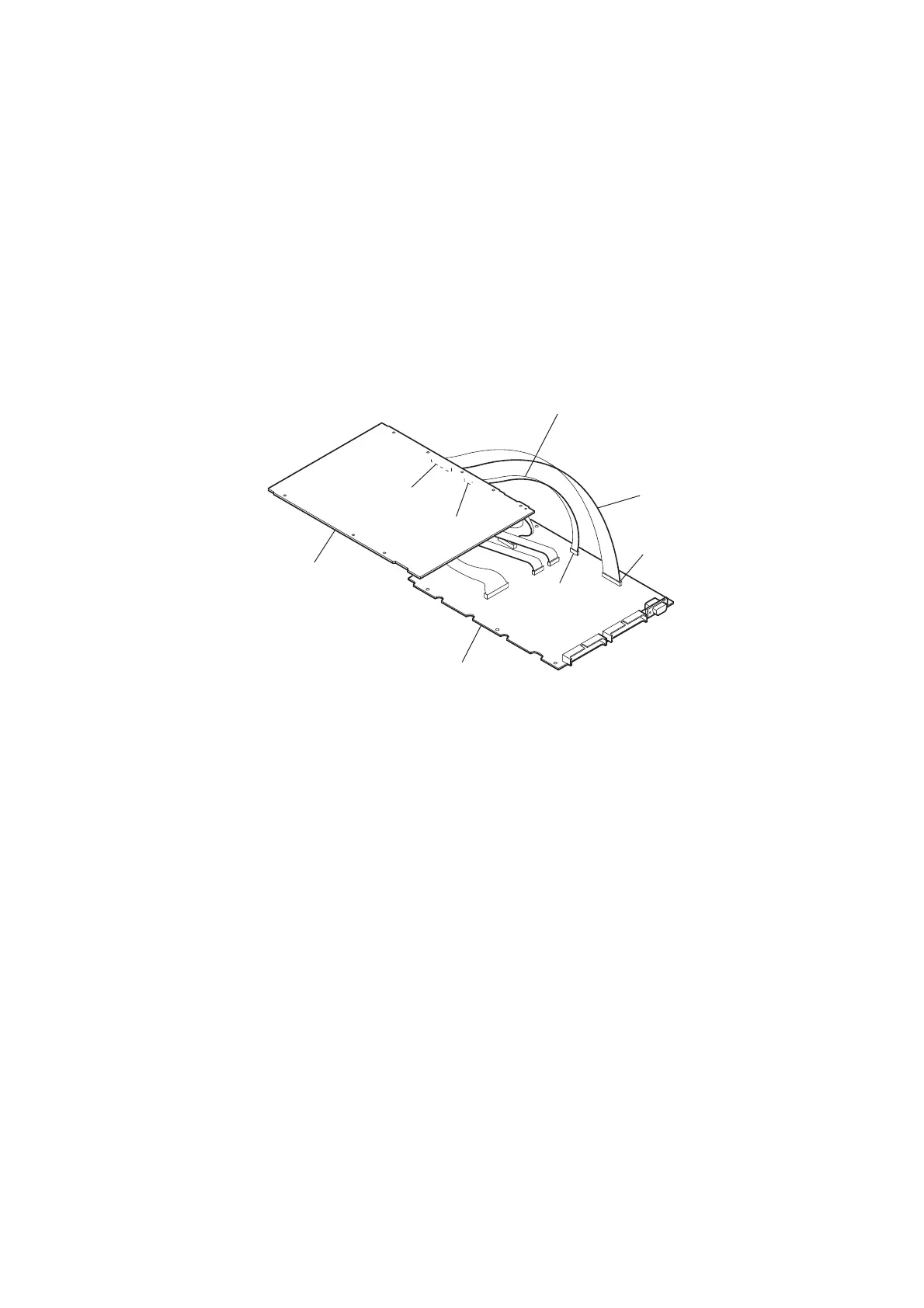

EXTENTION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extention
cable) as shown below.
• Connect the MAIN board (CN2975) and the VIDEO board
(CN705) with the extention cable (Part No. J-2501-199-A).
Connect the MAIN board (CN2510) and the VIDEO board
(CN1110) with the extention cable (Part No. 1-828-223-11).
J-2501-199-A
1-828-223-11
CN705
CN1110
CN2975
MAIN board
VIDEO board
CN2510
To Next Page
