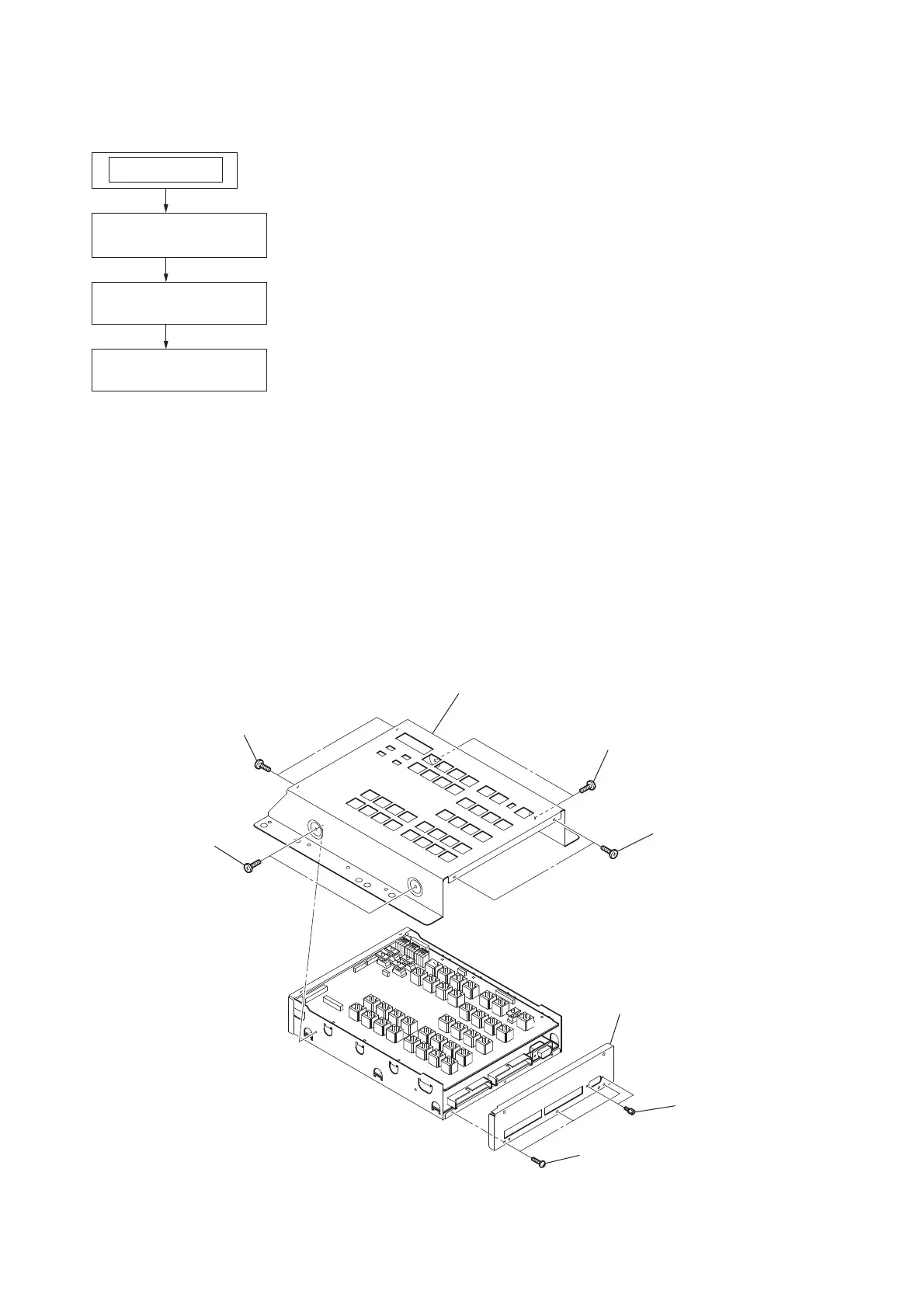

3-1. CASE (MB)
Note: Follow the disassembly procedure in the numerical order shown below.
• This set can be disassembled in the order shown below.
3-1. CASE (MB)
(Page 8)
3-2. VIDEO BOARD
(Page 9)
SET
3-3. MAIN BOARD
(Page 9)
 two screws
(flat head (TP))
 two screws
(flat head (TP))
 two screws
(flat head (TP))
 two screws
(flat head (TP))
 case (MB)
 three screws
(+BVTP 3 × 8)
 two bolts
 panel (B)
