8
GB

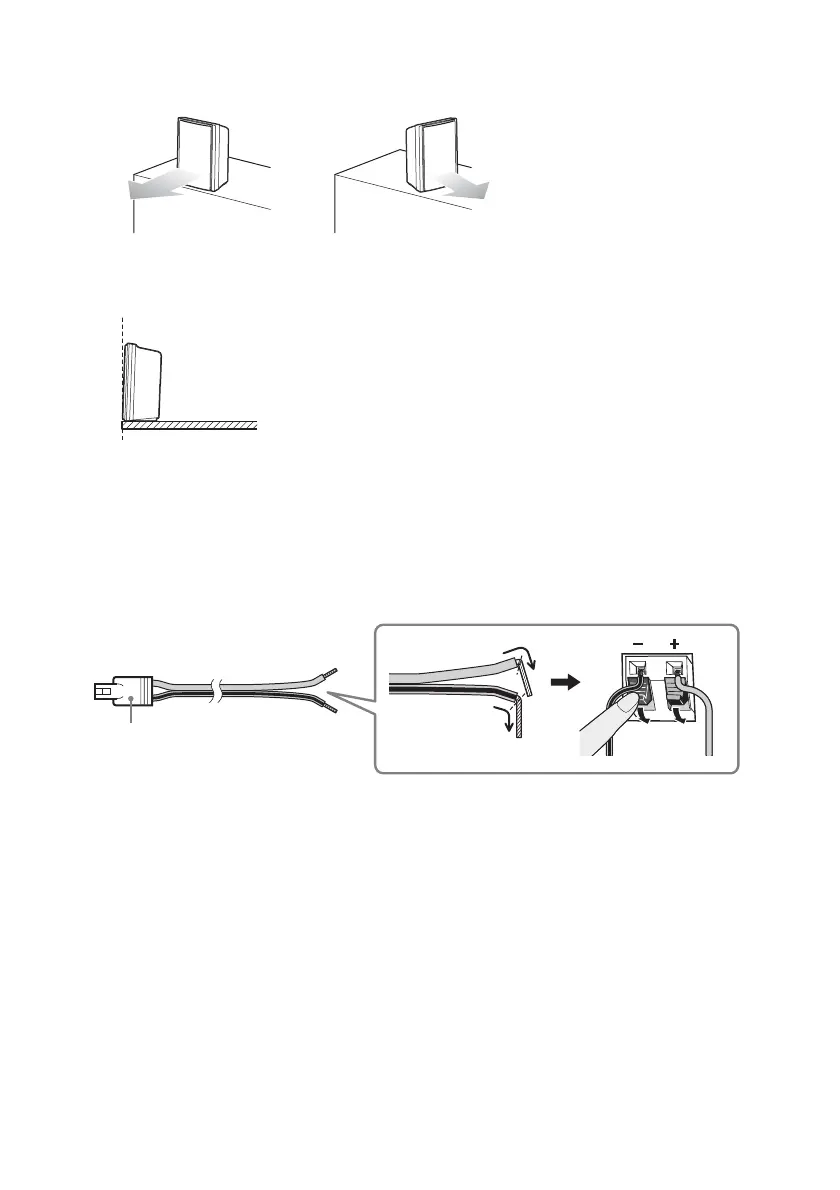

• Both speakers should be pointed straight forward. Do not place the speakers at an angle.
• It is recommended to place the speakers on the edge of a table or rack, etc., to prevent sound reflection.
To connect the speaker cords to the speakers
The connector of the speaker cords is color-coded depending on the type of speaker.
Connect the speaker cords to match the color of the SPEAKER jacks of the subwoofer.
Be sure to match the speaker cords to the appropriate terminals on the speakers: the gray speaker
cord to +, and the gray speaker cord with a black line to –. Do not catch the speaker cord insulation
in the speaker terminals.
Correct
Incorrect
Recommended
Side view
(–) Gray with
a black line
Connector
Speaker (L): White
Speaker (R): Red
Rear of the speaker
(+) Gray
