Sony HT-FS3 - Connecting Components with HDMI Jacks

12
GB
Sony recommends that you connect components to the system using HDMI cables.
With HDMI, you can easily enjoy both high quality sound and high quality images.
For details on the Control for HDMI function, refer to ““BRAVIA” Sync Features” (page 29).
Connect the AC power cord (mains lead) after you have finished connecting all components to the
system.
Connecting a TV monitor, projector, etc.
Connect the audio output of the TV to the audio input of the system using a digital optical cord or an
audio cord in order to listen to the TV sound from the system.
• The OPTICAL TV IN jack has priority when you connect both the audio output of the TV to the OPTICAL TV IN
and AUDIO IN jack of the system.
Connecting components with HDMI jacks
Note
ANTENNA
AM
FM
75 COAXIAL
HDMI
TV OUTSAT/CATV INDVD INBD IN
EZW-T100
SPEAKER
ONLY FOR SS-FS3
R
L
DMPORT
DC 5V
0.7A MAX
AUDI O IN
R
TV
L
OPTICAL
TV IN
COAXIAL
DIGITAL
DIGITAL 1 IN DIGITAL 2 IN

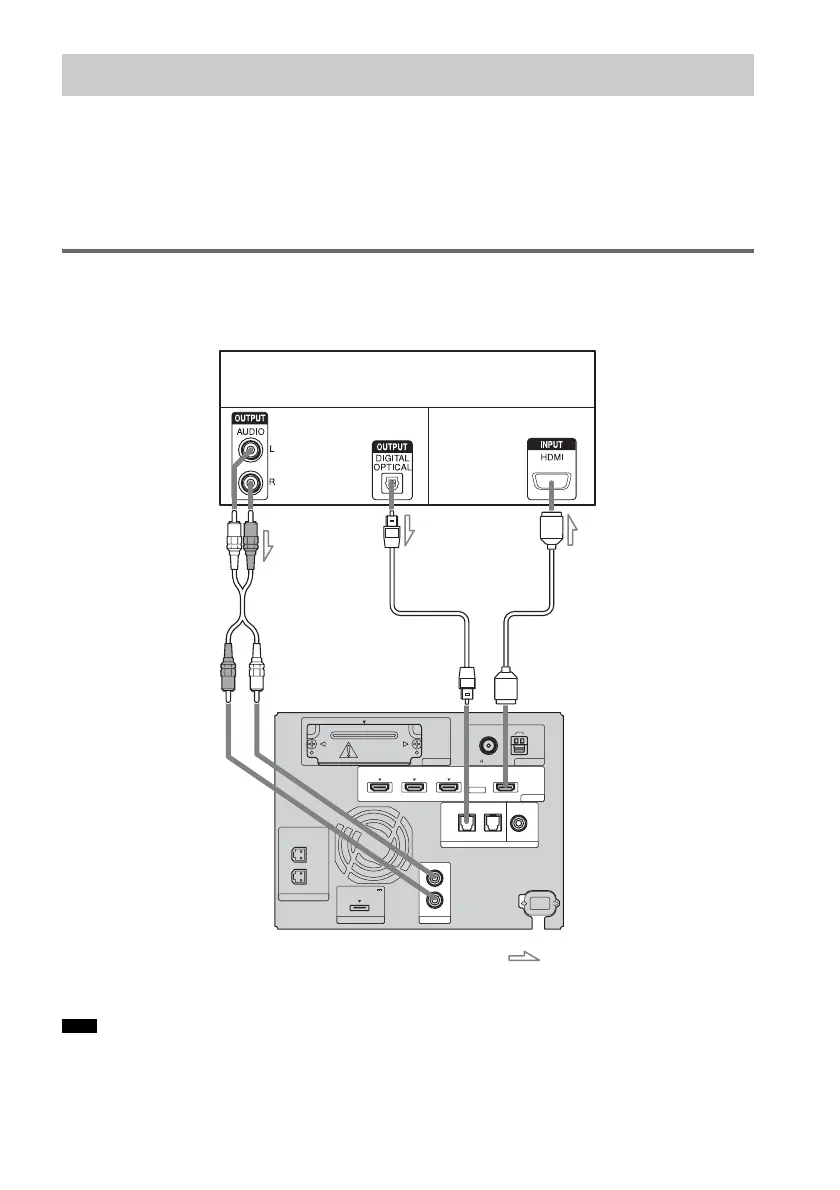

TV monitor, projector, etc.
A Audio cord (not supplied)
B Digital optical cord (supplied)
C HDMI cable (not supplied)
Audio/video signal
ABC
Audio signal
or
: Signal flow
Rear of the
subwoofer
