When you connect a DVD player (recorder), satellite/cable television tuner, “PlayStation 2,” etc., that
has no HDMI jacks, connect to the system using the OPTICAL DIGITAL 1 IN or COAXIAL
DIGITAL 2 IN jack.
If the satellite/cable television tuner does not have an OPTICAL OUT jack, connect the system using
the COAXIAL DIGITAL 2 IN jack. In this case, it is not necessary to connect all the cables. Connect
the audio cords according to the jacks of your components.
Connect the AC power cord (mains lead) last.

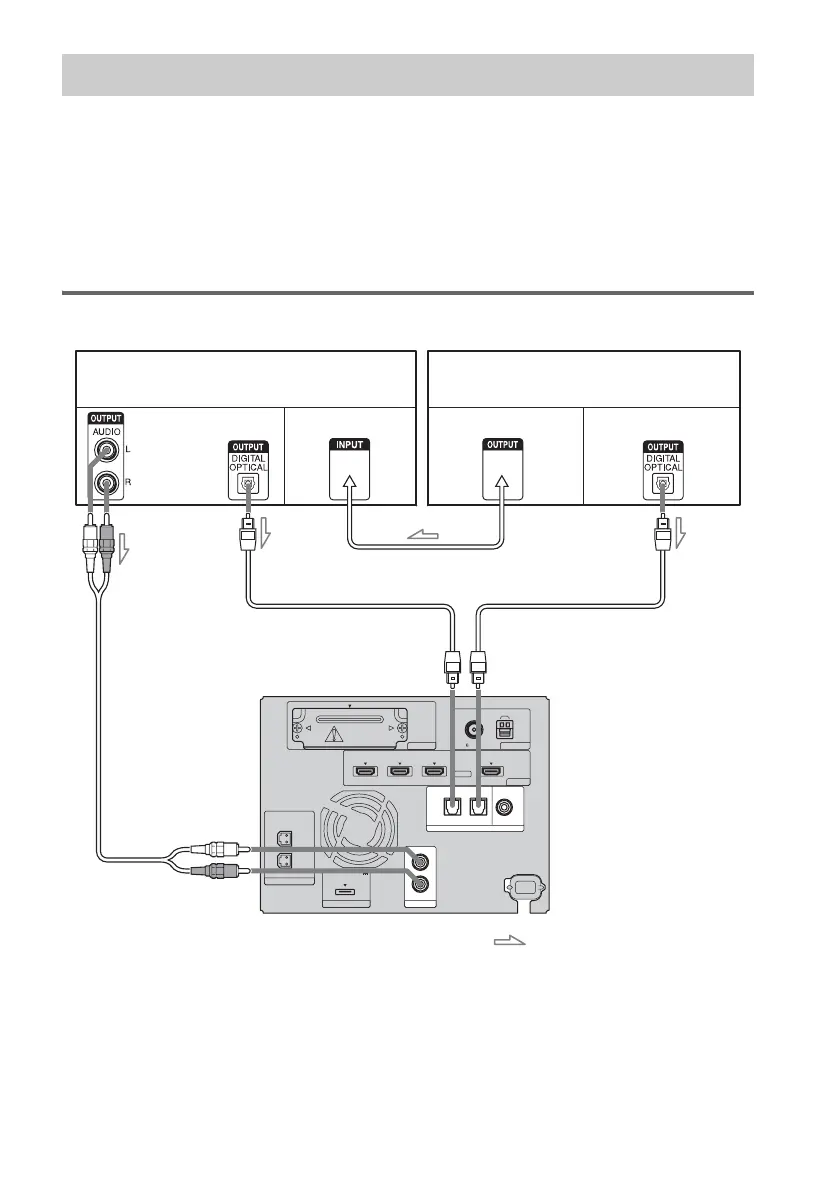

Connecting a component to the OPTICAL DIGITAL 1 IN jack
Connecting components without HDMI jacks
ANTENNA
AM
FM
75 COAXIAL
HDMI
TV OUTSAT/CATV INDVD INBD IN
EZW-T100
SPEAKER
ONLY FOR SS-FS3
R
L
DMPORT
DC 5V
0.7A MAX
AUDI O IN
R
TV
L
OPTICAL
TV IN
COAXIAL
DIGITAL
DIGITAL 1 IN DIGITAL 2 IN
TV monitor, projector, etc.
A
A Audio cord (not supplied)
B Digital optical cord (supplied)
C Digital optical cord (not supplied)
Video signal
: Signal flow
CB
or
Audio signal Video signal Audio signal
DVD player (recorder), “PlayStation 2,”
satellite/cable television tuner, etc.
Video signal
Rear of the
subwoofer
