Sony HT-RT4 Service Manual

HT-RT4/RT40
10

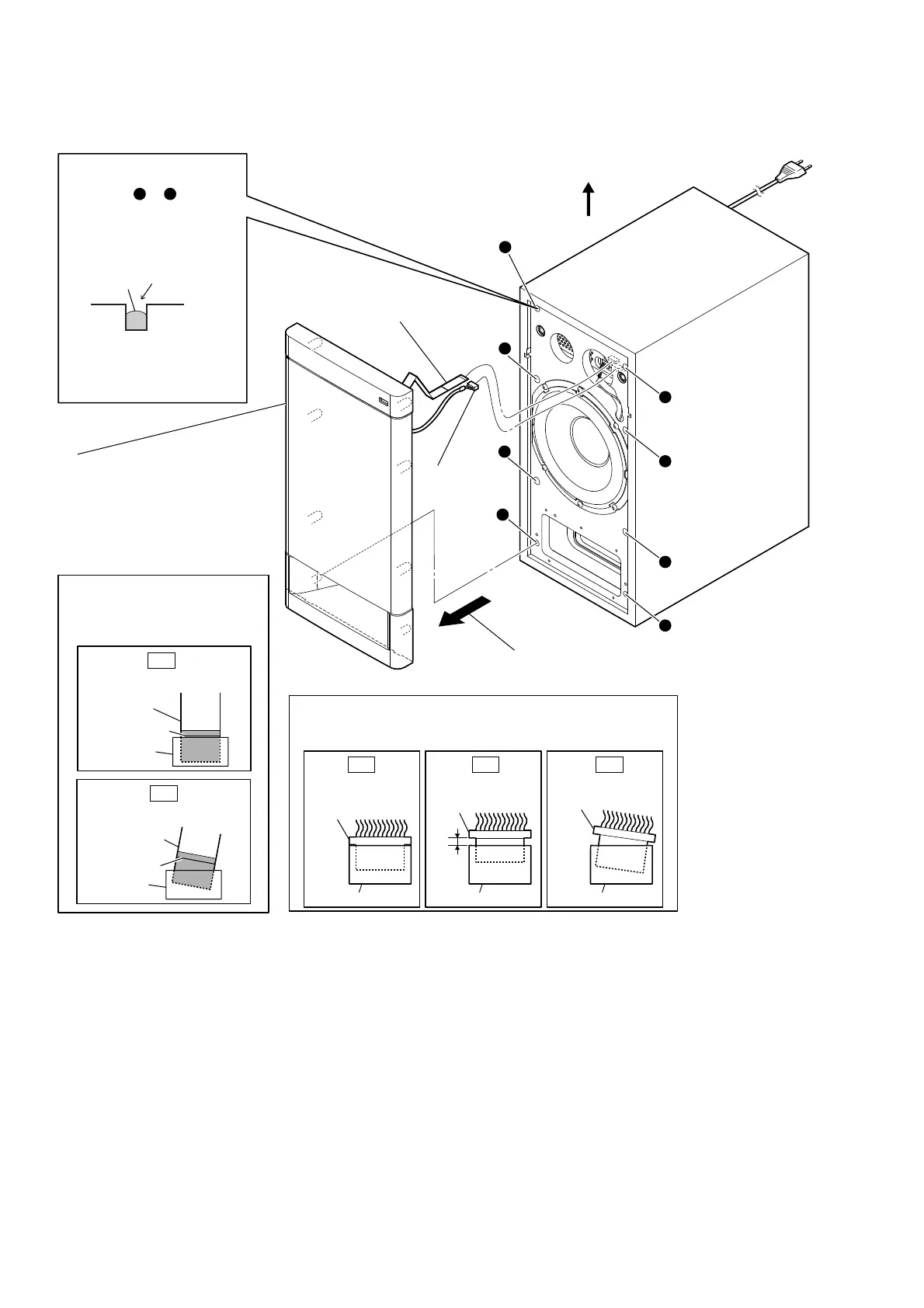

2-3. FRONT PANEL SECTION-2
Note 2: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG
1 Remove the front panel section
in the direction of the arrow.
When installing the
front panel section,
remove the used glue
and use a new glue to
fix the front panel section.
2 CN3000
(5P)
3 wire (flat type)
(20 core) (CN5009)
4 front panel section
Note 3:
– Front view –
a
b
c
d
e
f
g
h
Note 1:
colored line
Insert is straight to the interior.
wire (flat type)
connector
OK
colored line
Insert is incline
connector
NG
When installing the wire
(flat type), ensure that the
colored line is not slanted
after insertion.
wire (flat type)
Ɣ*OXHVHWWLQJ
Fill in 2/3 of the bosses
hole (step A to H) on
the cabinet with new
glue. Ensure the
front panel section
is fully inserted to cabinet.
h
a
glue
bosses hole
Glue type: Ethylene
Vinyl Acetate Emulsion
Adhesives
top side

Sony HT-RT4 Specifications

General

Game mode	Yes
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	5.1 channels
Subwoofer type	Active subwoofer
Cables included	Optical
Receiver included	-
Product color	Black
Audio formats supported	DTS, LPCM, PCM
Consumer Electronics Control (CEC)	BRAVIA Sync
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.4 W
Power consumption (typical)	85 W

Weight and Dimensions

Depth	70 mm
Width	900 mm
Height	52 mm
Soundbar weight	2100 g
Subwoofer depth	315 mm
Subwoofer width	190 mm
Subwoofer height	392 mm
Subwoofer weight	7800 g
