Sony HT-RT4 Service Manual

33
HT-RT4/RT40
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

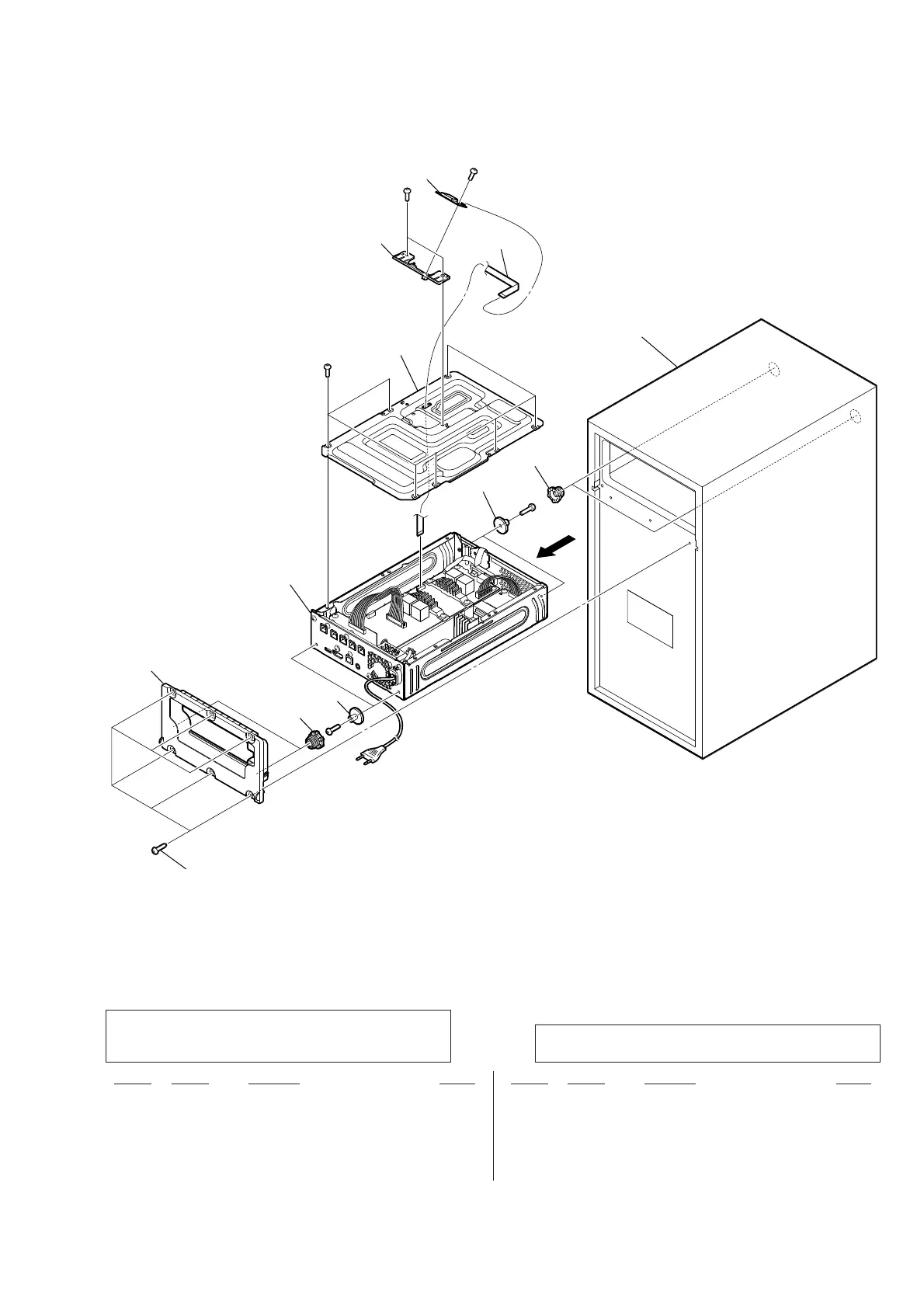

6-2. CHASSIS SECTION
51 4-874-614-32 +BV TAPPING SCREW TYPE-1 3.5
52 4-582-968-01 PANEL, REAR (EL-SW)
53 4-587-548-01 CATCHER, RUBBER (EL-SW)
54 1-828-218-51 WIRE (FLAT TYPE) (18 CORE)
55 1-493-097-11 BLUETOOTH MODULE
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
ns not supplied
#1
#1
#1
#2
#2
52
53
53
55
54
ns
MAIN board section
51
ns
ns
ns
ns
Note 2: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Note 1: When the BLUETOOTH MODULE is replaced,
refer to “NOTE OF REPLACING BLUETOOTH
MODULE OR RC-S730 (WW)” on page 5.

Sony HT-RT4 Specifications

General

Game mode	Yes
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	5.1 channels
Subwoofer type	Active subwoofer
Cables included	Optical
Receiver included	-
Product color	Black
Audio formats supported	DTS, LPCM, PCM
Consumer Electronics Control (CEC)	BRAVIA Sync
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.4 W
Power consumption (typical)	85 W

Weight and Dimensions

Depth	70 mm
Width	900 mm
Height	52 mm
Soundbar weight	2100 g
Subwoofer depth	315 mm
Subwoofer width	190 mm
Subwoofer height	392 mm
Subwoofer weight	7800 g
