Sony HT-RT4 Service Manual

HT-RT4/RT40
9
Note: Follow the disassembly procedure in the numerical order given.

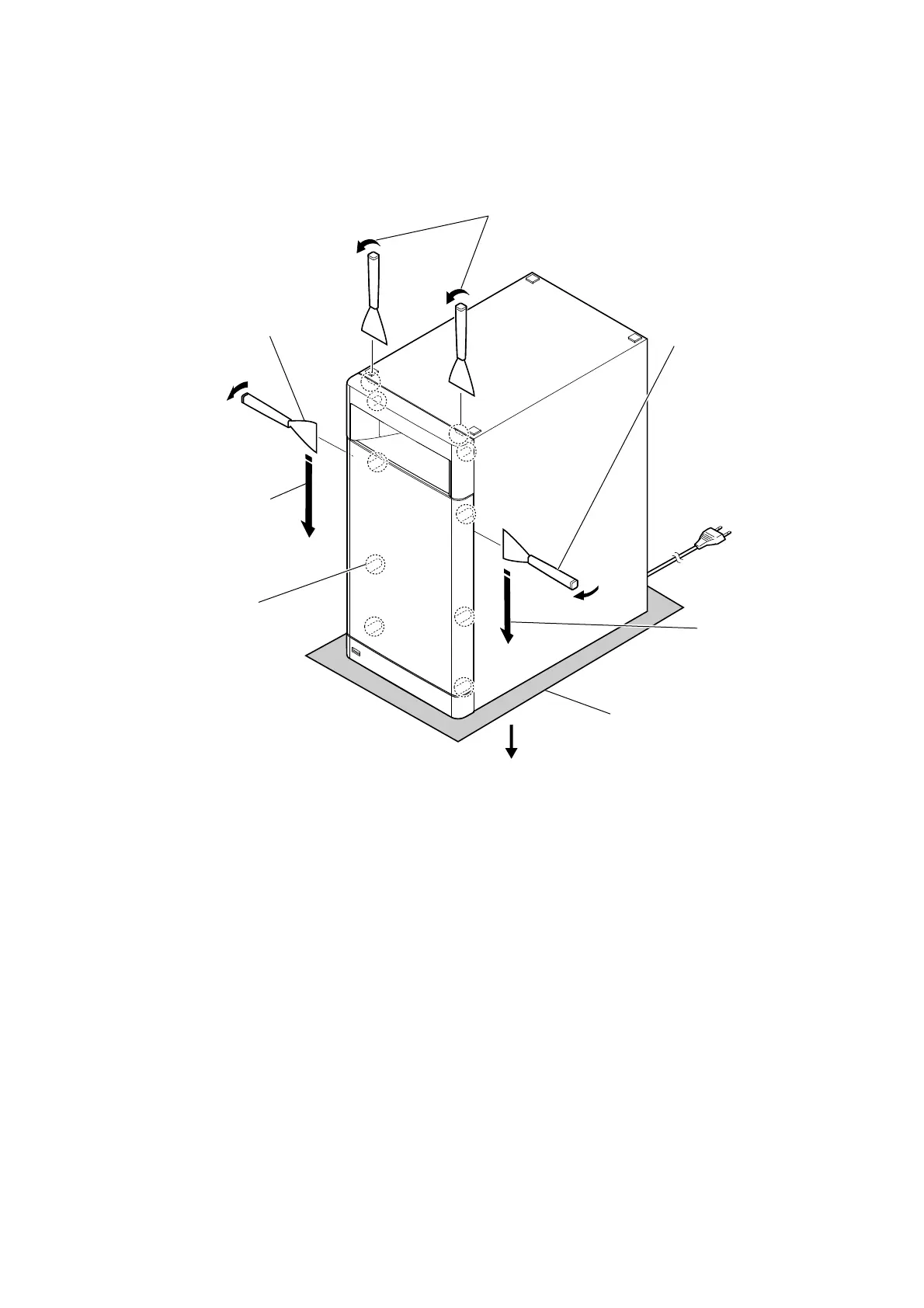

2-2. FRONT PANEL SECTION-1
• Continued on next page.
total eight bosses
1 Insert a jig in two notches of
bottom of the unit, and lift the
front panel section a little.
3 All bosses are removed
while moving jig in the
direction of the arrow,
and front panel section
is removed.
3 All bosses are removed
while moving jig in the
direction of the arrow,
and front panel section
is removed.
Please spread a sheet
under a unit not to
injure cabinet.
2 Insert the jig into a space and
raise front panel section.
Note 2: When using a jig,
please work so as not
to injure front panel
section and cabinet.
2 Insert the jig into a space and
raise front panel section.
Note 2: When using a jig,
please work so as
not to injure front panel
section and cabinet.
Note 1:
– Bottom view –
top side

Sony HT-RT4 Specifications

General

Game mode	Yes
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	5.1 channels
Subwoofer type	Active subwoofer
Cables included	Optical
Receiver included	-
Product color	Black
Audio formats supported	DTS, LPCM, PCM
Consumer Electronics Control (CEC)	BRAVIA Sync
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.4 W
Power consumption (typical)	85 W

Weight and Dimensions

Depth	70 mm
Width	900 mm
Height	52 mm
Soundbar weight	2100 g
Subwoofer depth	315 mm
Subwoofer width	190 mm
Subwoofer height	392 mm
Subwoofer weight	7800 g
