HT-RT4/RT40

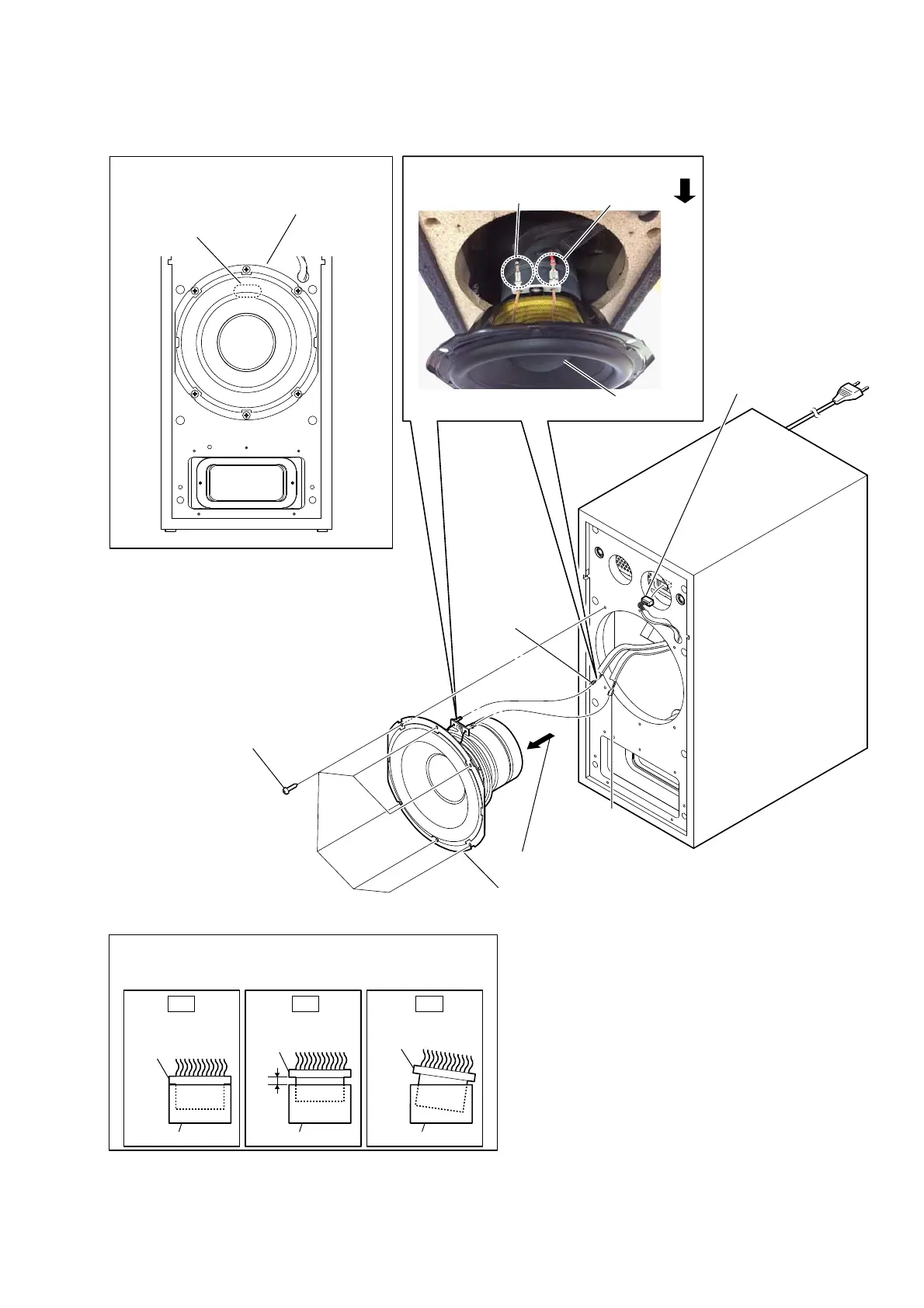

2-4. LOUDSPEAKER 16CM

– Front view –

1 six screws ((1) (4 x 20), +BV TAPPING)

5 CN1001 (4P)

2 Remove the loudspeaker 16cm

in the direction of the arrow.

4 loudspeaker 16cm

3 terminal

(narrow side)

3 terminal

(wide side)

loudspeaker 16cm

terminal position

,QVWDOODWLRQGLUHFWLRQIRUWKHORXGVSHDNHU

FP

terminal (wide side)

:LUHVHWWLQJ

front side

terminal (narrow side)

Note:

When you install the connector, please install them correctly.

There is a possibility that this machine damages when not

correctly installing it.

Insert is shallow

Insert is straight

to the interior.

connector

Insert is incline

connector

connector connector

OK NG NG
