Sony HT-RT4 Service Manual

HT-RT4/RT40
12

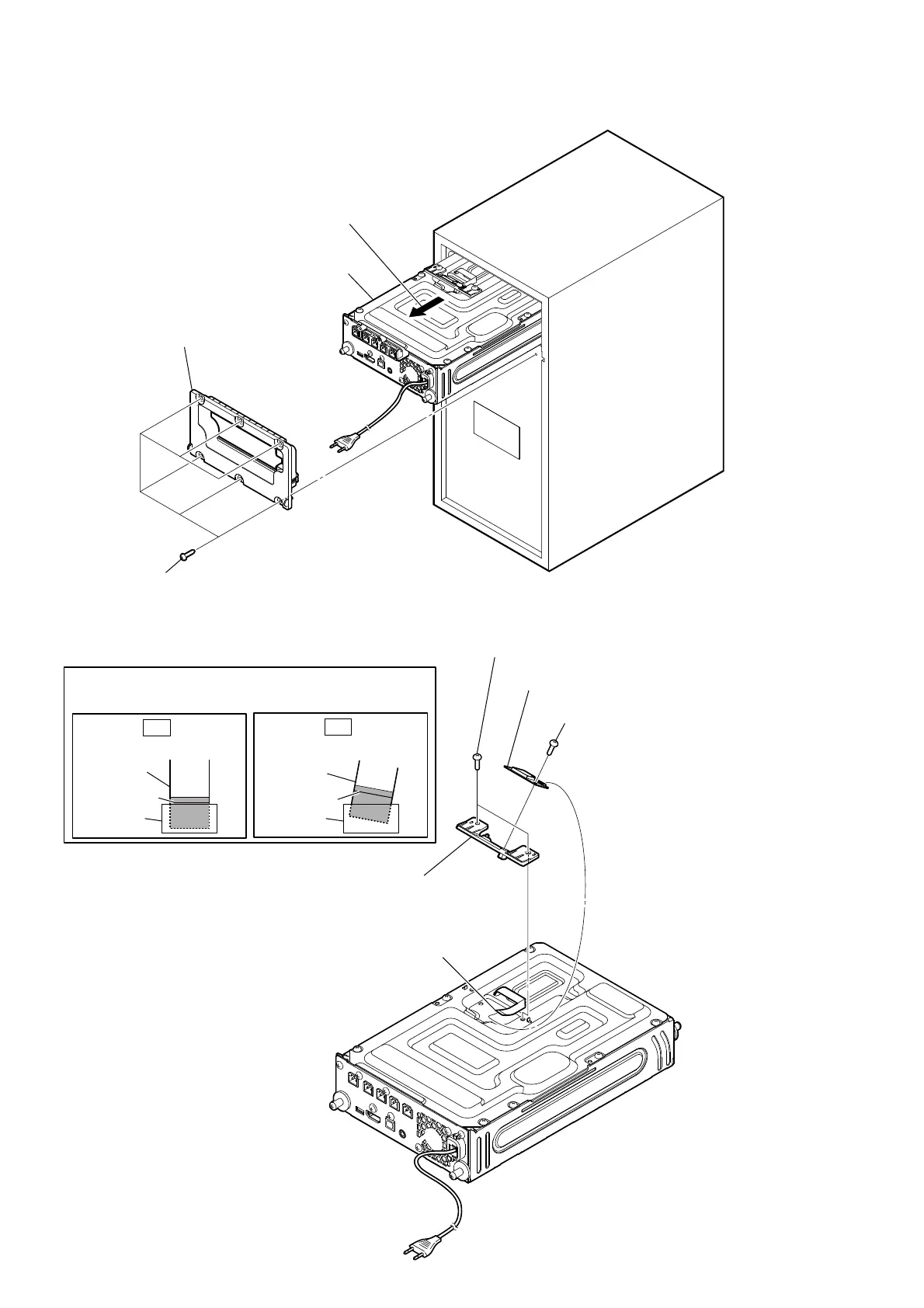

2-5. CHASSIS SECTION
2-6. BLUETOOTH MODULE
1 six screws (+BV TAPPING SCREW TYPE-1 3.5)
2 panel, rear (EL-SW)
3 Draw out chassis section in
the arrow direction.
4 chassis section
– Rear view –
5 holder, BT
2 one screw (+BVTP 3 X 8 TYPE2 IT-3)
3 BLUETOOTH module
4 two screws (+BVTP 3 X 8 TYPE2 IT-3)
1 wire (flat type) (18 core)
(CN2002)
– Rear view –
Note: When installing the
wire (flat type)
, ensure that the
colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
wire (flat type)
wire (flat type)
connectorconnector
OK
NG

Sony HT-RT4 Specifications

General

Game mode	Yes
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	5.1 channels
Subwoofer type	Active subwoofer
Cables included	Optical
Receiver included	-
Product color	Black
Audio formats supported	DTS, LPCM, PCM
Consumer Electronics Control (CEC)	BRAVIA Sync
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.4 W
Power consumption (typical)	85 W

Weight and Dimensions

Depth	70 mm
Width	900 mm
Height	52 mm
Soundbar weight	2100 g
Subwoofer depth	315 mm
Subwoofer width	190 mm
Subwoofer height	392 mm
Subwoofer weight	7800 g
