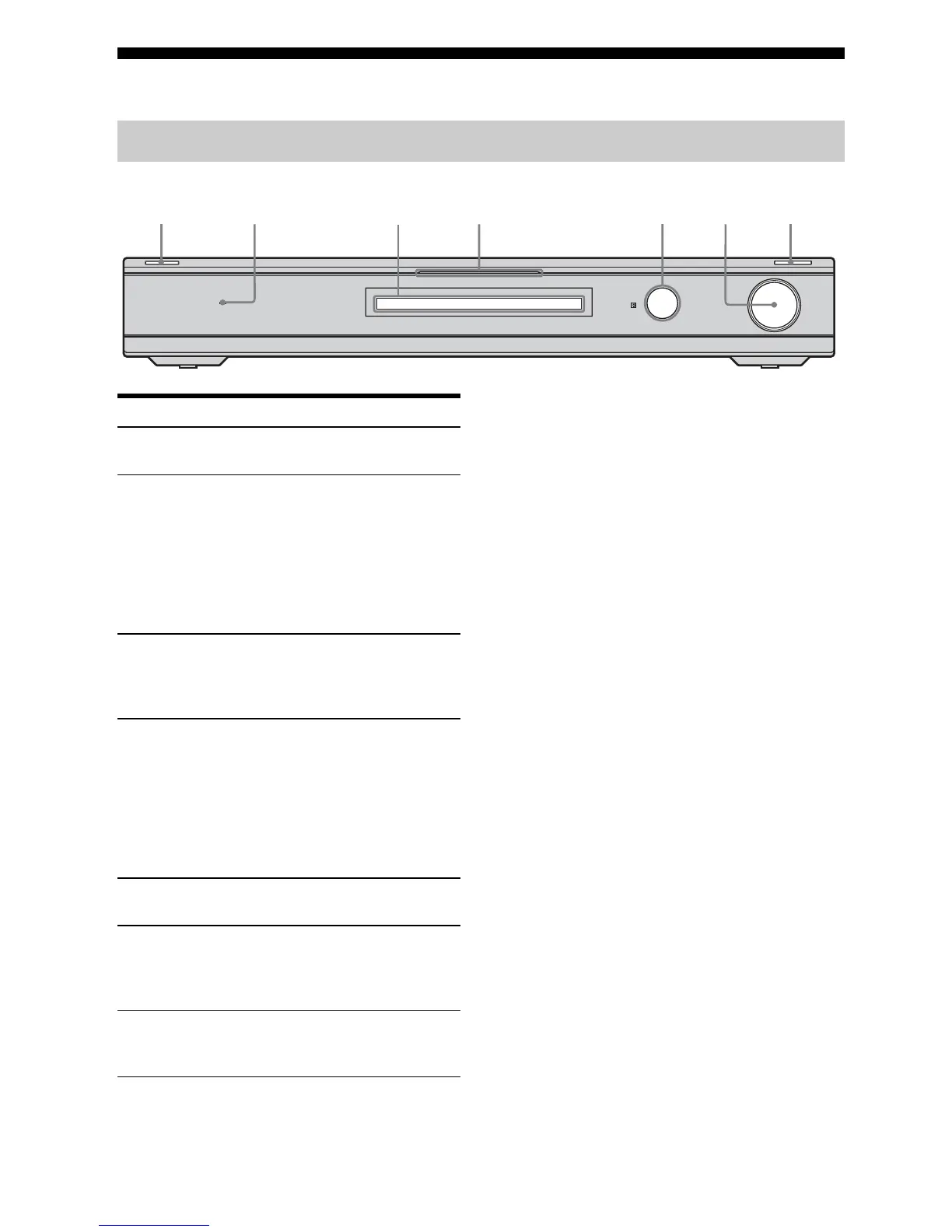

Description and location of parts
Front panel
ACTIVE STANDBY
INPUT SELECTOR
MASTER VOLUME
?/1
2
5
641 73
Name Function
A ?/1
(on/standby)
Press to turn the receiver
on or off (page 25, 34, 35).
B ACTIVE
STANDBY
lamp
Lights up in amber when
the Control for HDMI is
set to on and the receiver
is on standby mode.
Note
If the ACTIVE
STANDBY lamp is
flashing, see page 62.
C Display The current status of the
selected component or a
list of selectable items
appears here (page 11).
D White lamp Lights up when the
receiver is on and DSPL is
set to on in DISPLAY
function (page 55). Lights
off when the receiver is in
standby mode or DSPL is
set to off in DISPLAY
function.
E Remote sensor Receives signals from
remote commander.
F MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 33, 34,
35).
G INPUT
SELECTOR
Press to select the input
source to playback (page
33, 34, 44, 45).
