Sony HTC-VX500 - Printed Wiring Board CD Section

HTC-VX500
2020

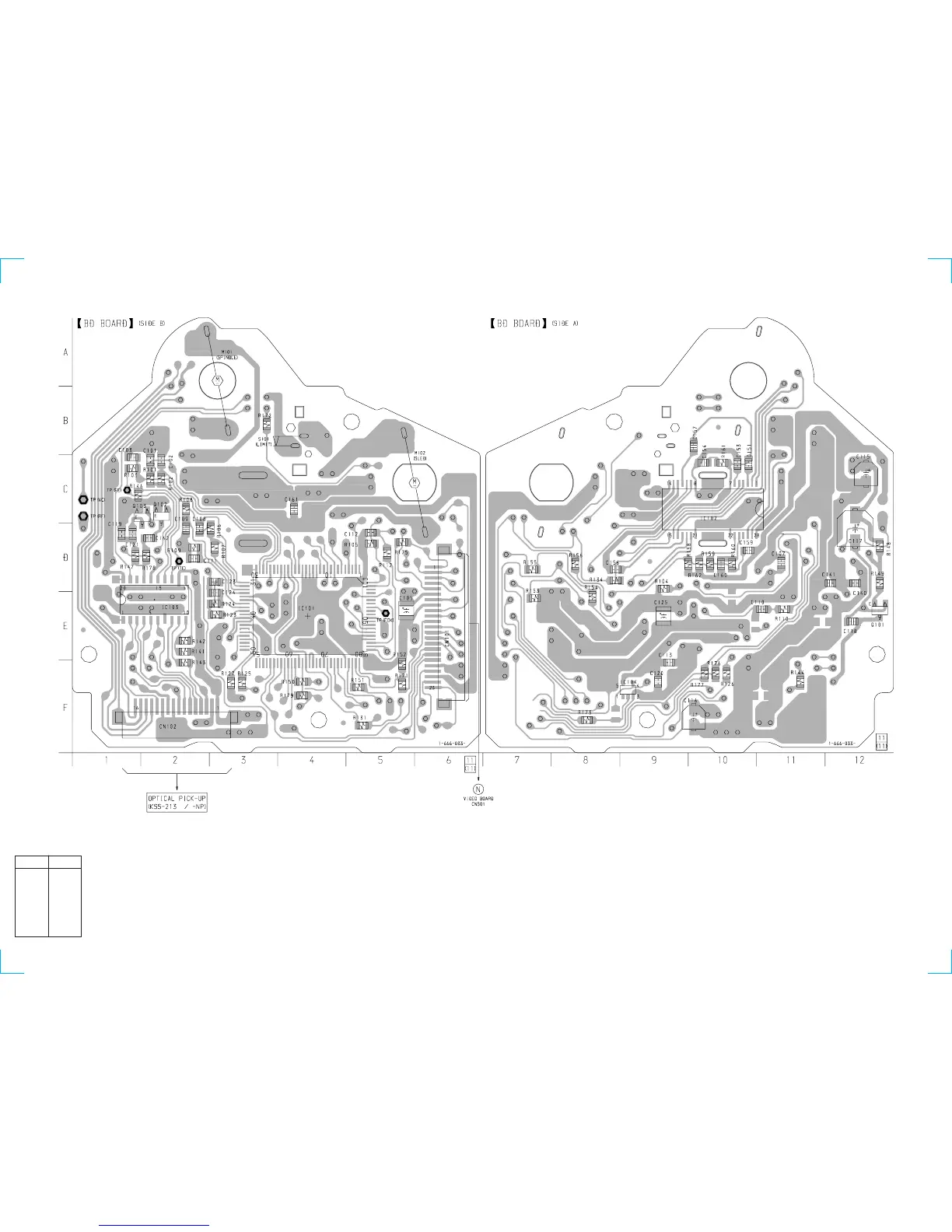

6-3. PRINTED WIRING BOARD CD SECTION
• Refer to page 15 for Circuit Boards Location.
16
(Page 32)
BA
F
Ref. No. Location
IC101 E-4
IC102 C-10
IC103 E-2
IC104 F-9
Q101 E-12
Q102 C-2
Q103 C-2
• Semiconductor
Location
