SECTION 1
SERVICING NOTE

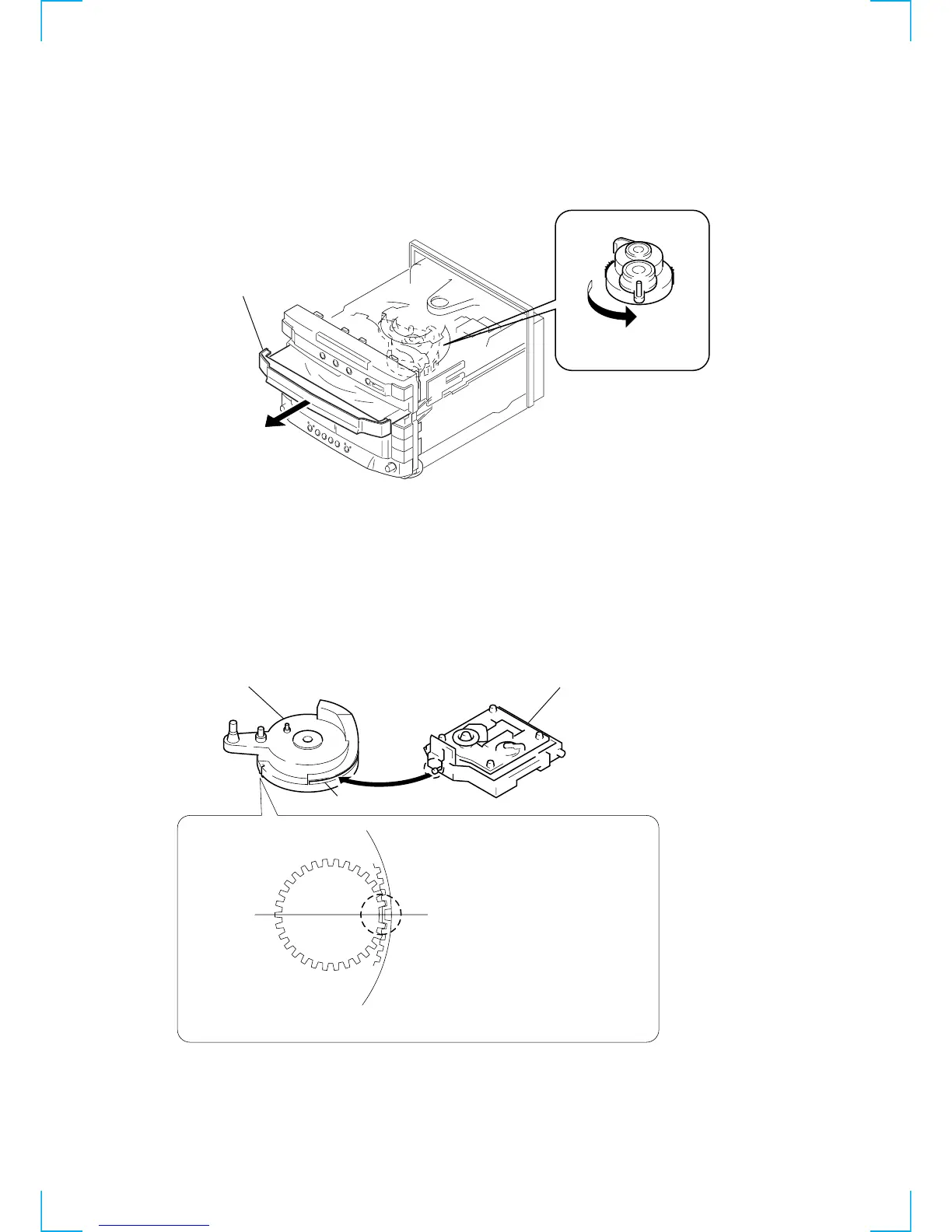

HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH
TURNS OFF
1 Remove the Case.
Note for Installation (ROTARY ENCODER)
3 Pull-out the disc tray.
2 Turn the cam to the
direction of arrow.
BU cam
Groove
Section A
Note:When attaching the Base unit, Insert th
e
section A into the groove of BU cam.
Note:When attaching the BU cam,
engage the Rotary encoder
switch as shown in the figure.
