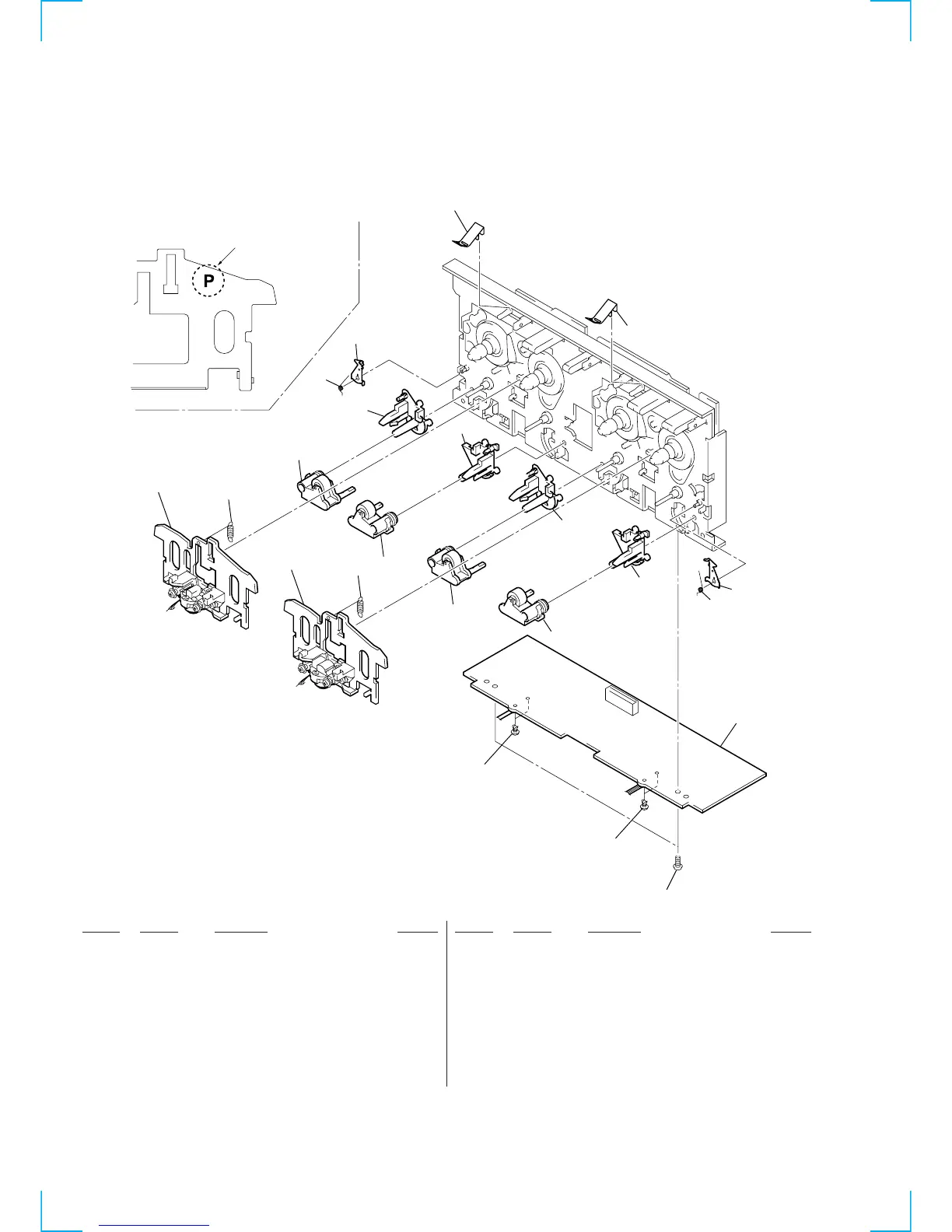

7-6. TC MECHANISM SECTION 1 (TCM-230AWR2/230PWR2)
* NOTE: Two types of parts which are not interchangeable are available
for the Head deck (A) ASSY and Head deck (B) ASSY.
When replacing the parts, refer to the following figure, and
use the appropriate part
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
401
402
402
403
403
404
404
405
405
406
410
411
406
407
413
412
408
408
407
HRPE101
HP101
409
Parts with “P” mark: 230PWR2
Parts without “P” mark: 230AWR2
401 3-376-464-11 SCREW(+PTT 2.6 × 6),GROUND POINT
402 3-911-116-21 RIVET, PUSH
403 3-016-574-01 SPRING (HEAD),TENSION
404 X-3374-156-1 PINCH LEVER (REV) ASSY
405 X-3374-155-1 PINCH LEVER (FWD) ASSY
406 3-016-564-01 BASE (PINCH LEVER FWD)
407 3-016-565-01 BASE (PINCH LEVER REV)
408 3-026-892-01 SPRING (CASSETTE), LEAF
* 409 A-2007-731-A AUDIO BOARD, COMPLETE
410 3-016-573-03 LEVER (EJECT PREVENTION R)
411 3-032-810-02 SPRING (R), TORSION
412 3-016-572-01 LEVER (EJECT PREVENTION L)
413 3-032-809-02 SPRING (L), TORSION
HP101 A-2056-681-A DECK (A) ASSY, HEAD (230AWR2) (*NOTE)
HP101 A-2056-683-A DECK (A) ASSY, HEAD (230PWR2) (*NOTE)
HRPE101A-2056-682-A DECK (B) ASSY, HEAD (230AWR2) (*NOTE)
HRPE101A-2056-684-A DECK (B) ASSY, HEAD (230PWR2) (*NOTE)
