Sony HTC-VX500 - Printed Wiring Board Main Section

HTC-VX500
2424

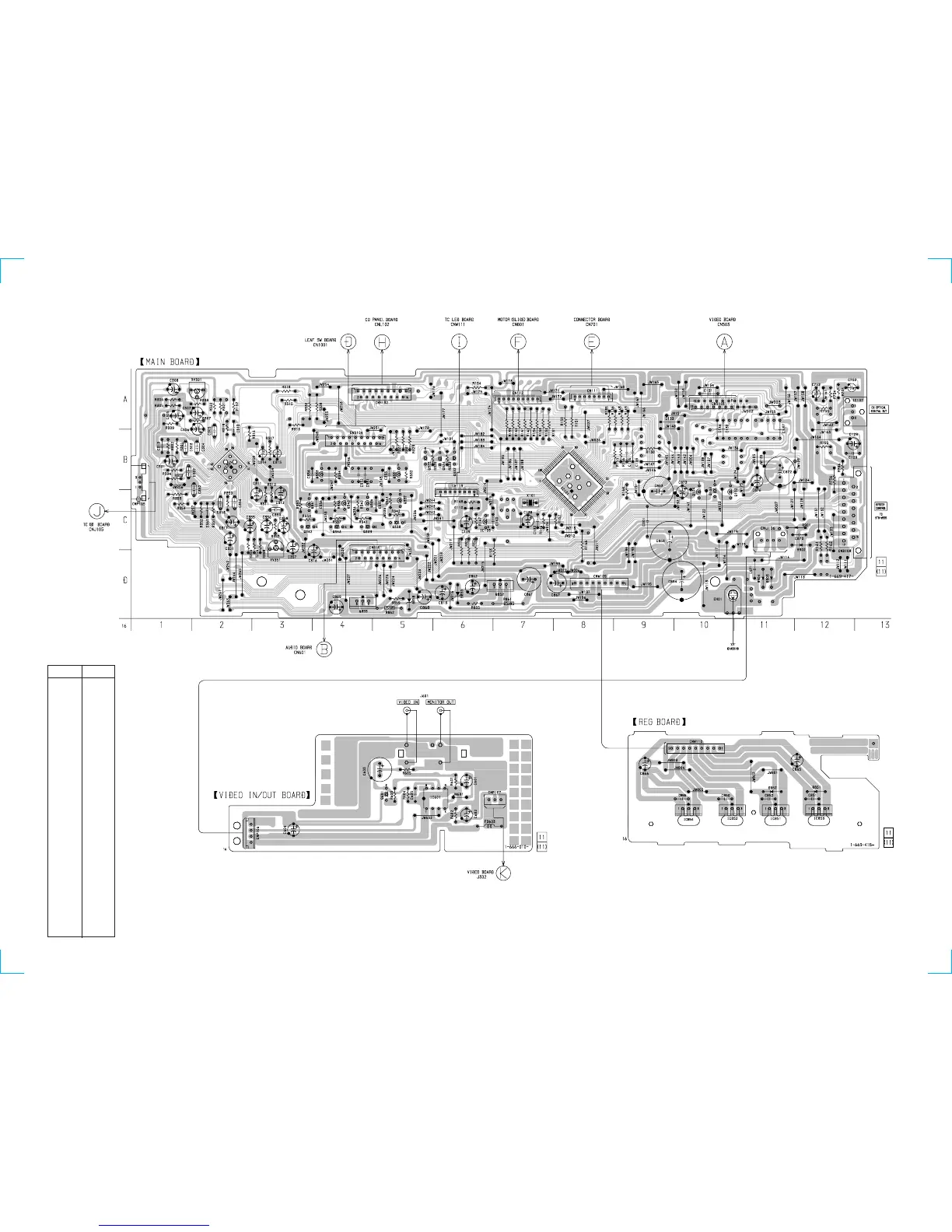

6-7. PRINTED WIRING BOARD MAIN SECTION
• Refer to page 15 for Circuit Boards Location.
(Page 27)
(Page 28)
(Page 28)
(Page 31)
(Page 31) (Page 32)
(Page 28)
(Page 23)
(Page 32)
Ref. No. Location
D110 C-6
D855 D-6
D858 D-5
D901 C-12
D902 C-12
D903 D-11
D904 D-11
IC101 B-8
IC103 C-6
IC107 A-13
IC301 B-2
Q102 C-10
Q103 C-10
Q104 C-10
Q331 B-5
Q332 B-6
Q333 B-4
Q334 B-6
Q335 B-5
Q336 C-4
Q337 C-5
Q338 C-5
Q339 C-4
Q340 C-4
Q341 C-3
Q342 C-3
Q343 C-4
Q852 D-7
Q855 D-4
• Semiconductor
Location
