Sony HTC-VX500 - Base Unit Section (BU-5 BD24)

51

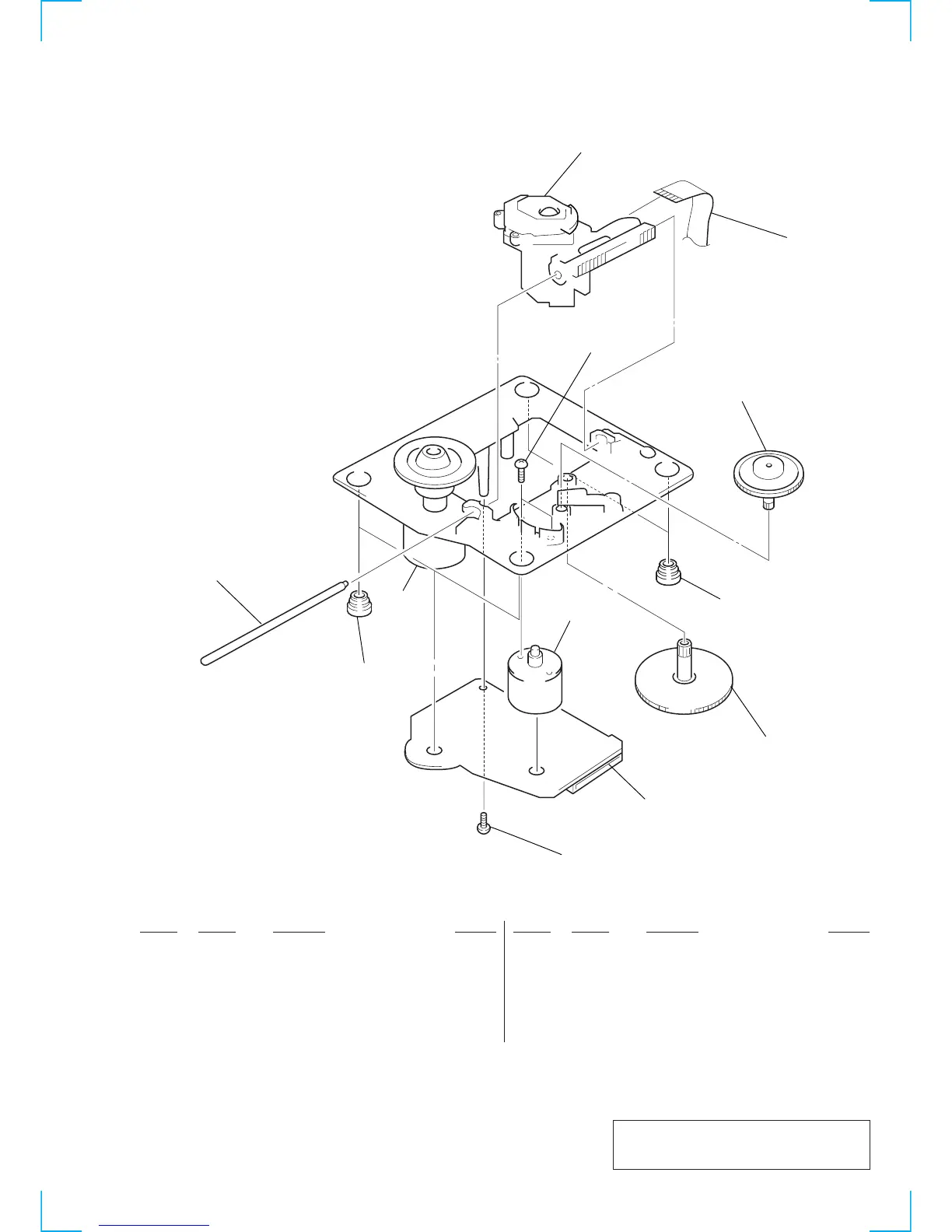

7-5. BASE UNIT SECTION (BU-5BD24)
309
M102
M101
301
302
303
304
305
304
308
307
306
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
! 301 8-848-379-31 OPTICAL PICK-UP BLOCK KSS-213BA/F-NP
302 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
303 4-917-567-01 GEAR (M)
304 4-951-940-01 INSULATOR (BU)
305 4-917-565-01 SHAFT, SLED
306 4-917-564-01 GEAR (P), FLATNESS
* 307 A-4699-697-A BD BOARD, COMPLETE
308 4-951-620-41 SCREW (2.6), +BVTP
309 3-713-786-51 SCREW +P 2 × 3
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
